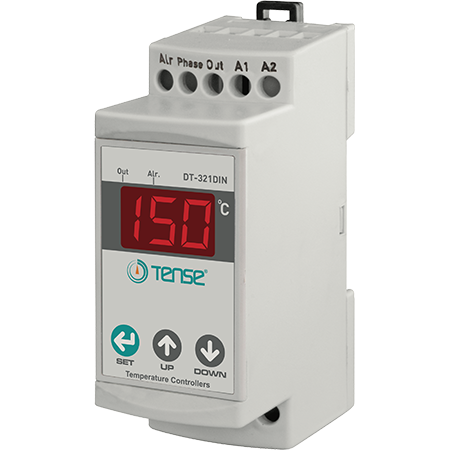

2-point temperature regulator/thermostat for rail mounting with external sensor. ON-OFF ON-OFF control mode, measuring range -30ºC ...+150ºC (made in Turkey, TENSE) DT-321DIN
Thermostat control with external sensor
The temperature regulator DT-321DIN is characterized by its individual usability and is used to control heating or cooling units. Alternatively, the DT-321DIN can also simply function as a reading device.
Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial plants.
Sensor type: NTC
Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A
Optional heating and cooling function
- Hysteresis
Adjustable ON/OFF timers for OUT output in case of sensor failure
- Protection against compression due to adjustable shutdown times
Upper and lower limits for SET and ALARM settings
Adjustable separate hysteresis for SET and ALARM settings
Delay for OUT in cooling mode
EEPROM memory to save settings
Password protection
High precision
Delivery scope:
1x DT-321DIN temperature regulator
1x NTC (sensor)
1x user manual (English)
This simple temperature regulator can be used with the three types of sensors presented on our website:
- Type 1 reference: -30°C to 105°C - SKU: NTC-105 (included)
- reference for type 2: -30°C to 150°C - SKU: NTC-150
- reference for type 3: -30°C to 150°C (with nut and thread ) - SKU: NTC-S-150
Features:
Supply voltage: 100 to 240 VAC, 50/60 Hz
Power input: < 6 VA
Sensor type: NTC
Temperature measuring range: - 30 °C to + 150 °C
Resolution: +/- 1 °C
Measurement accuracy: +/- 3 % (°C), over the entire measuring range
OUT output: Relay (NO + NC), 250V AC, 2A
ALARM output: Relay (NO + NC), 250V AC, 2A
Operating temperature: 0°C to 50°C
Heating/cooling: Ht (heating), Cl (cooling); can be selected

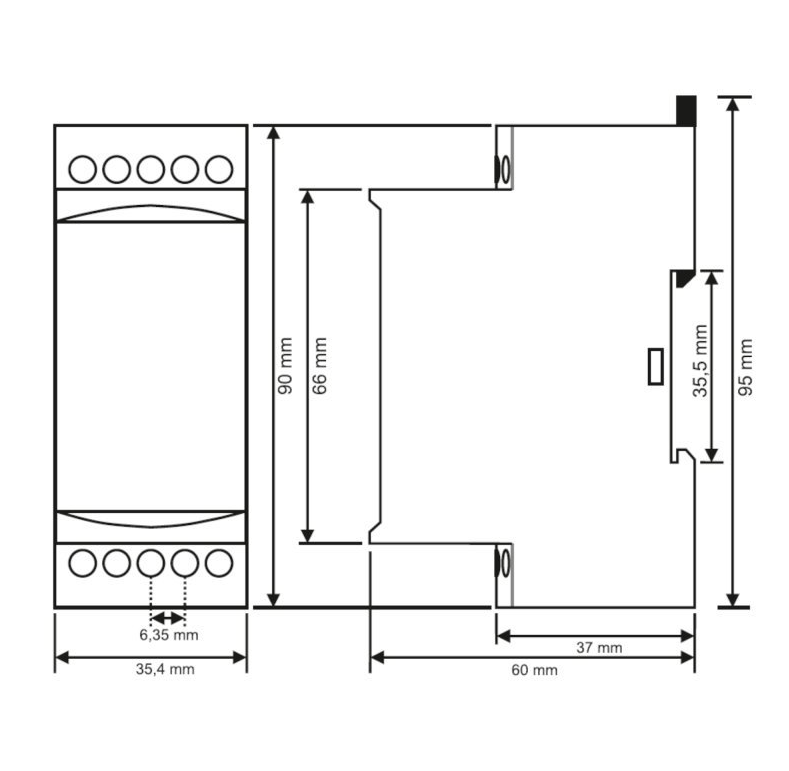

Cutout for front panel: 66 x 36 mm
Display: 3-digit - 7 segments
Product type: temperature meter
Protection class: IP00
Brand: Tense
Country and region of manufacture: Türkiye
Supply voltage: 100V - 240V ~
Connection type: screw terminals
Mounting: DIN rail
Temperature measuring range: -30...+150°C
Temperature relay (NO + NC), 250VAC, 2A, resistive load
Sensor type: NTC sensor
Shipping weight: 0.12 kg
Product weight: 0.10 kg
Dimensions (length × width × height): 8.50 × 7.80 × 36.00 cm
