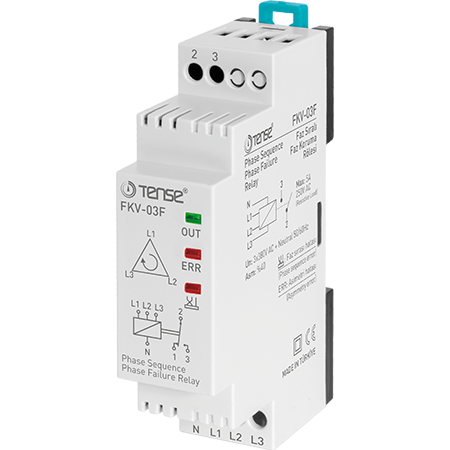

Fast Control Relay FKV-03F

In stock - 20 items available
SKU: FKV-03F
Common price 20,00 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

Phase protection relays are designed to protect three-phase loads from damage caused by mains voltage. Asymmetry: ~40 % Phase sequence control Technical specifications Operating voltage (Un): 3 x 380 V AC in neutral conductor Operating frequency 50/60 Hz Operating power <6 VA Operating temperature Tolerance (asymmetry) -20 °C....+55 °C ~40 % Contact current 5 A 250 V AC Resistive load Display 3x LEDs DIN rail mounting Weight <150 g Operating height <2000 m Cable diameter 2.5 mm²
