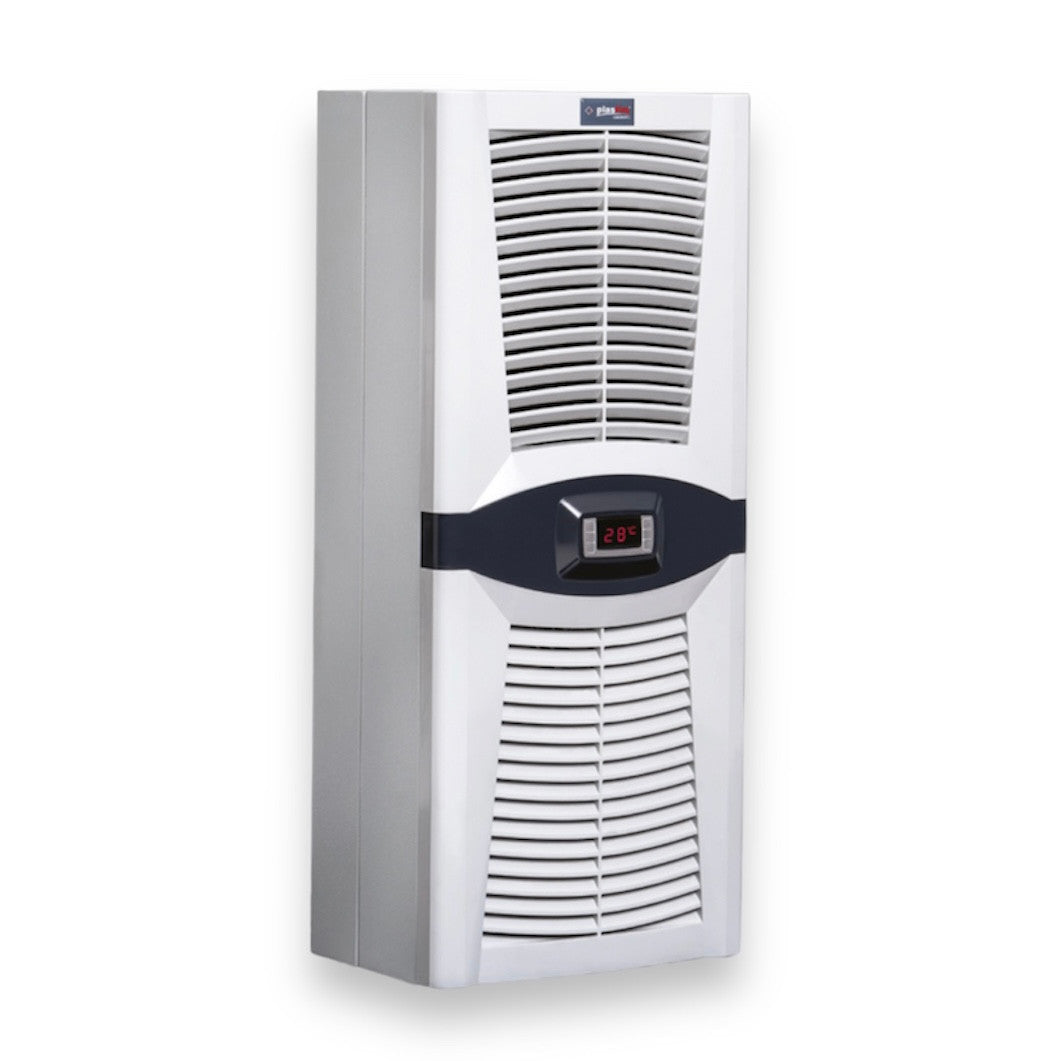

"Design Series" air conditioning unit for cabinet/cooler 1100 Watt / 3800BTU for side or wall mounting on cabinets and automation panels.
The air conditioning unit PAD1100.01 (PLASTIM) for electrical panels is equipped with a modern, open rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the electrical panel door.
Everything necessary for installing the air conditioning unit in the cabinet is included - gaskets, drain pipes, mounting screws, power plug.
TECHNICAL DETAILS | PAD1100.01 |
Cooling capacity L35 / L35 | 1100W / 3800BTU |
Operating voltage | 230VAC |
Frequency | 50/60 Hz |
Starting current | 7.2A |
Operating current | 2.5A |
Fuse | 10A |
Power consumption | 575W |
Operating range | 0-55 °C |
Factory setting of thermostat | 35 °C |
Differential | 4 °C |
Max. air volume internal circuit | 340 m³/h |
Max. air volume external circuit | 590 m³/h |
Type of refrigerant | R134a |
Amount of refrigerant | 310gr |

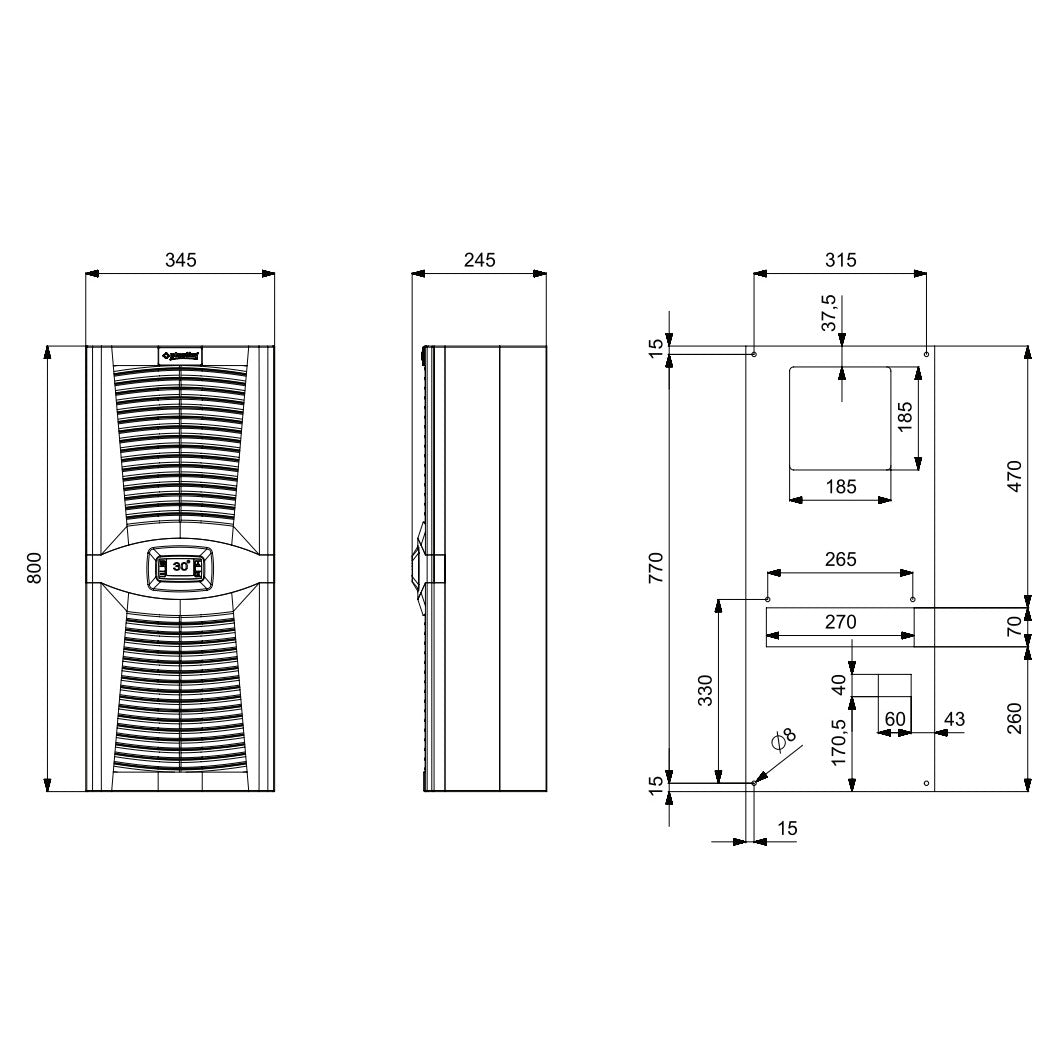

Dimensions | 800x345x223mm |
Weight | 32 kg |
Noise level | 76dB |
Protection class (internal circuit) | IP 54 |
Protection class (external circuit) | IP 34 |
Color | RAL7035 |
Compressor | HIGHLY/HITACHI |
Compressor type | Rotary |
Fans | EBMPAPST |
Mounting method | Wall mounting |
