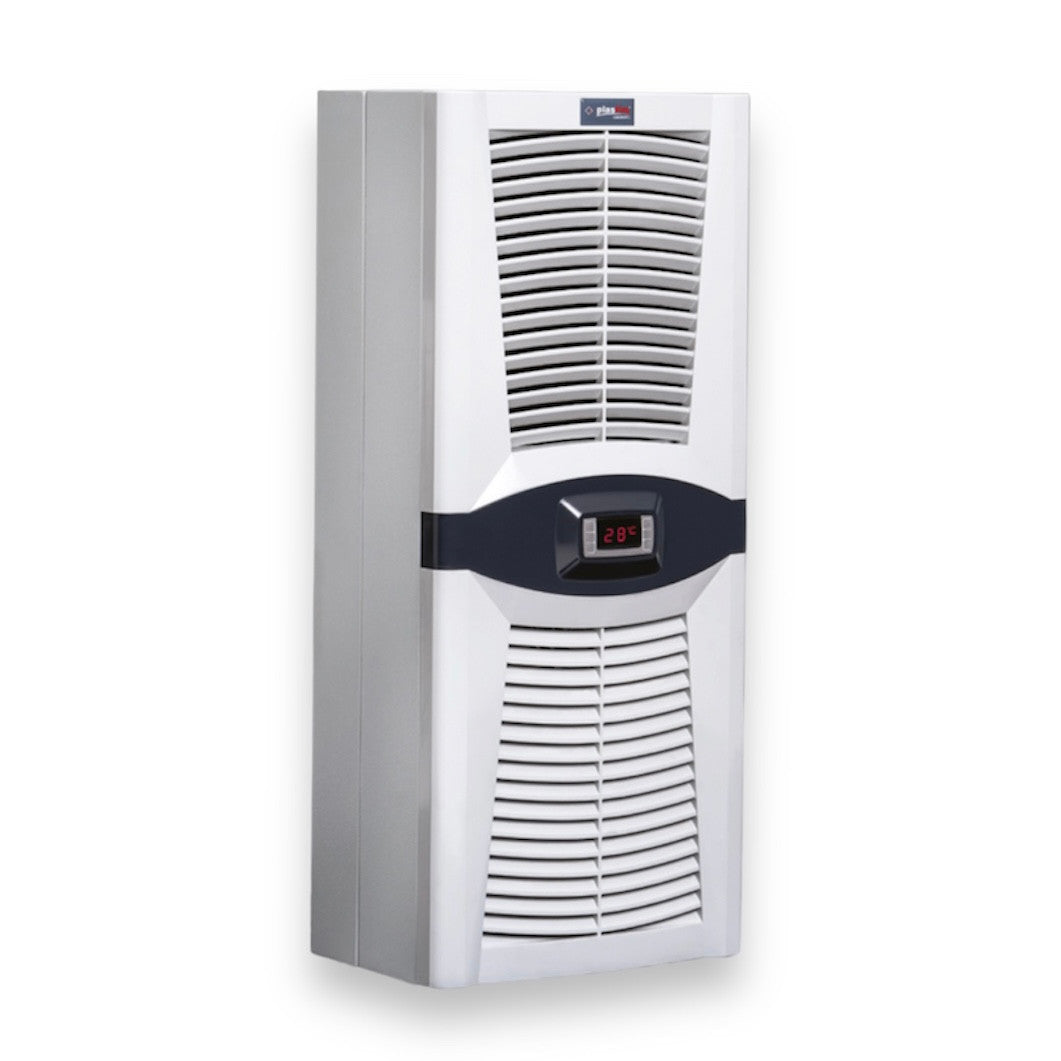

Air conditioning unit for panel / cooler 1600 watts (Design Series) for side or wall mounting of panel and automation panel.

The PAD1600.01 (PLASTIM) air conditioning unit for panels features HIGHLY's advanced open rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the panel door.

Everything needed to install the air conditioning unit for the cabinet is included - seals, drain pipes, mounting screws, power plugs.

TECHNICAL DETAILS

PAD1600.01

Cooling capacity L35 / L35

1600W / 5500BTU

Operating voltage

230VAC

Frequency

50/60 Hz

Starting current

8A

Operating current

3.2A

Fuse

10A

Power consumption

725W

Operating range

0-55 °C

Factory setting of thermostat

35 °C

Differential

4 °C

Max. air volume internal circuit

510 m³/h

Max. air volume external circuit

510 m³/t

Type refrigerant

R134a

Amount of refrigerant

600gr

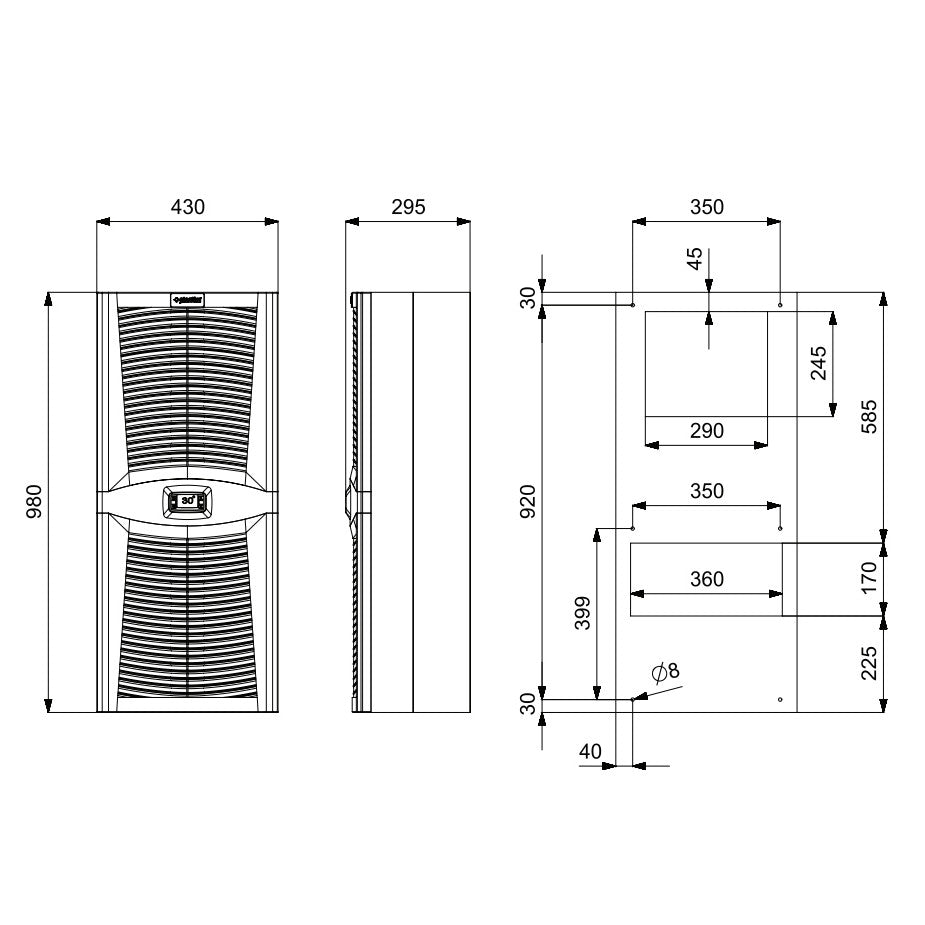

Dimensions

980x430x270mm

Weight

45 kg

Sound level

79dB

Protection class (internal circuit)

IP 54

Protection class (external circuit)

IP 34

Color

RAL7035

Compressor

HIGHLY/HITACHI

Compressor type

Rotary

Fans

EBMPAPST

Mounting method

Wall mounting
