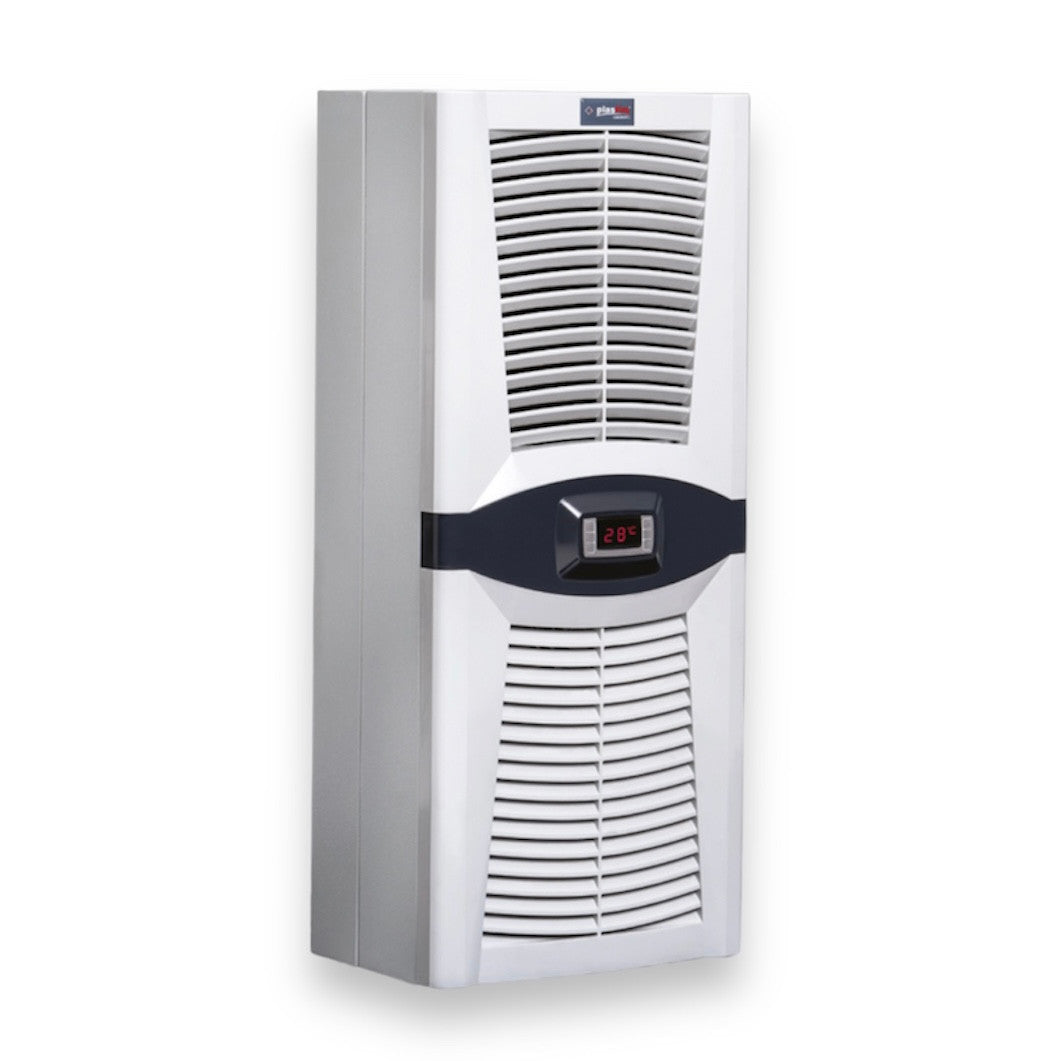

"Design Series" air conditioning unit for panel / cooler 2500 Watt / 8550BTU for side or wall mounting of panel and automation panel.
The PAD2550.01 (PLASTIM) air conditioning unit for electrical cabinets features HIGHLY's advanced open rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the door opening of the electrical cabinet.
Everything needed to install the air conditioning unit for the cabinet is included - seals, drain pipes, mounting screws, power plugs.
TECHNICAL DETAILS |
PAD2100.01 |
Cooling capacity L35 / L35 |
2100W / 7200BTU |
Operating voltage |
230VAC |
Frequency |
50/60 Hz |
Starting current |
10A |
Operating current |
3.8A |
Fuse |
16A |
Power consumption |
800W |
Operating range |
0-55 °C |
Factory setting of thermostat |
35 °C |
Differential |
4 °C |
Max. air volume internal circuit |
510 m³/h |
Max. air volume external circuit |
625 m³/t |
Type of refrigerant |
R134a |
Amount of refrigerant |
700gr |

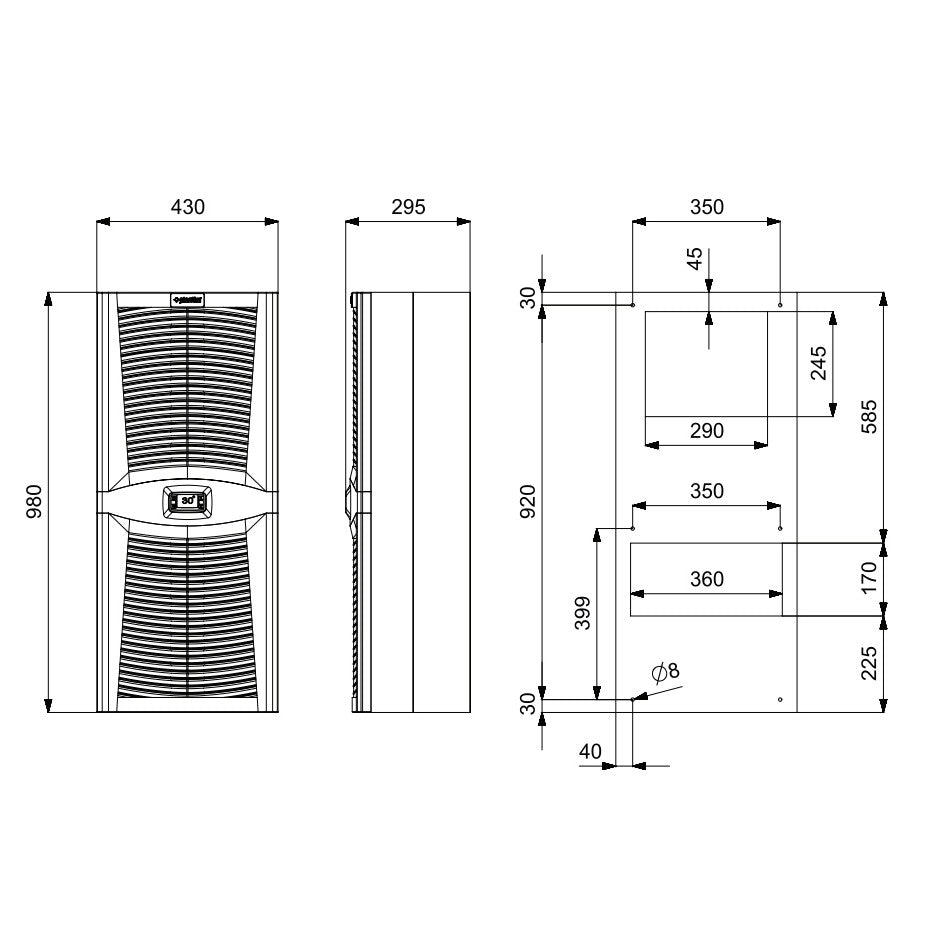

Dimensions |
980x430x270mm |
Weight |
46 kg |
Sound level |
80dB |
Protection class (internal circuit) |
IP 54 |
Protection class (external circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor type |
Rotary |
Fans |
EBMPAPST |
Mounting method |
Wall mounting |
