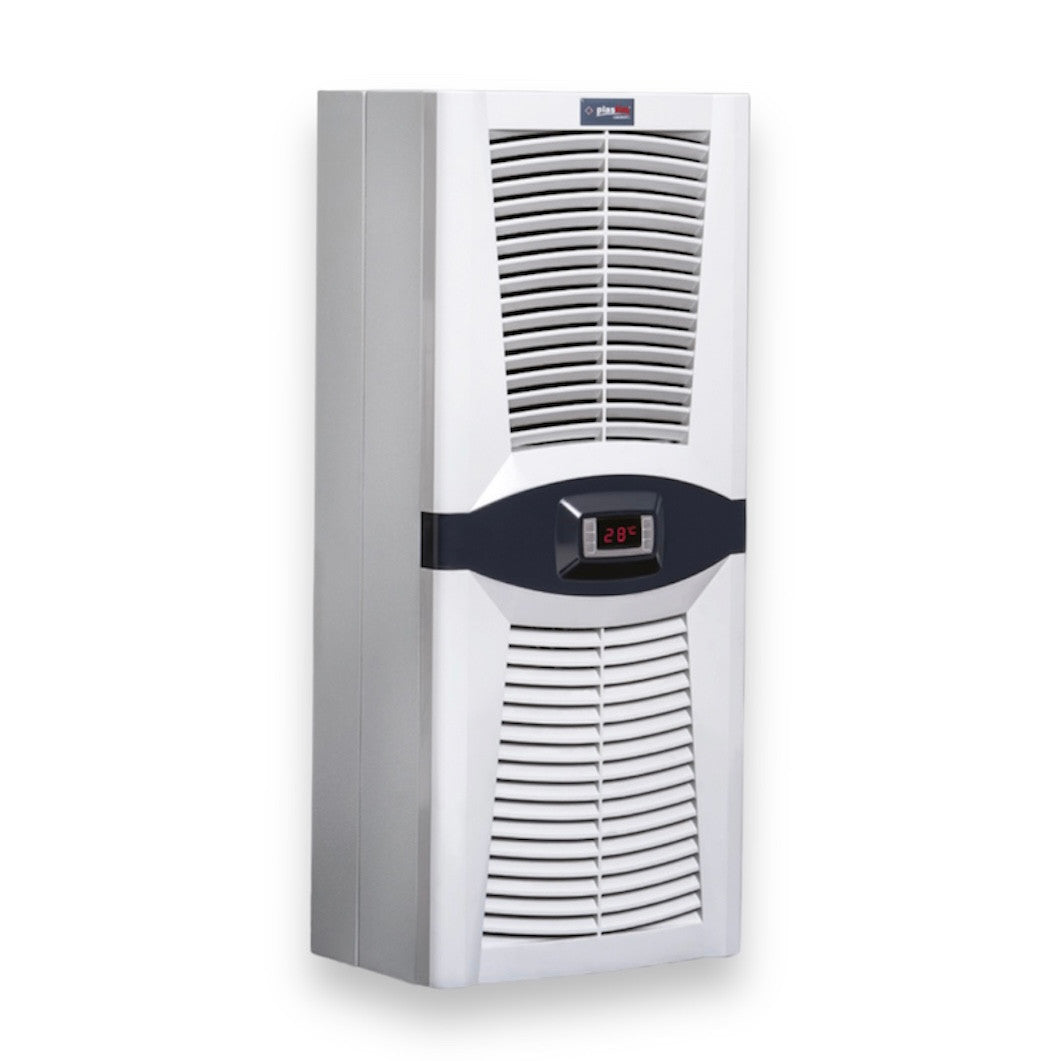

"Design Series" air conditioning unit for panel / cooler 2500 Watts / 8550BTU for side or wall mounting of the panel and automation panel.
The air conditioning unit PAD2500.01 (PLASTIM) for electrical panels is equipped with a modern, open rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the electrical panel door.
Everything needed to install the air conditioning unit for the cabinet is included - seals, drain pipes, mounting screws, power plugs.
TECHNICAL DETAILS |
PAD2500.01 |
Cooling capacity L35 / L35 |
2500W / 8550BTU |
Operating voltage |
230VAC |
Frequency |
50/60 Hz |
Starting current |
11A |
Operating current |
3.8A |
Fuse |
16A |
Power consumption |
800W |
Operating range |
0-55 °C |
Factory setting of thermostat |
35 °C |
Differential |
4 °C |
Max. air volume internal circuit |
510 m³/h |
Max. air volume external circuit |
625 m³/t |
Type of refrigerant |
R134a |
Amount of refrigerant |
750gr |

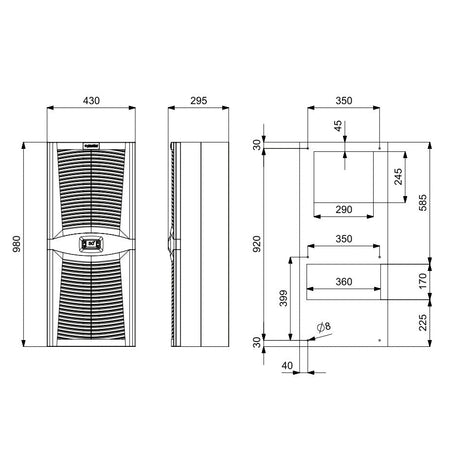

Dimensions |
980x430x270mm |
Weight |
47 kg |
Sound level |
82dB |
Protection class (internal circuit) |
IP 54 |
Protection class (external circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor type |
Rotary |
Fans |
EBMPAPST |
Mounting method |
Wall mounting |
