Air conditioning for electrical panels / Cooler 2500W, PAD2550.01, Plastim

In stock - 5 items available
SKU: PAD2550.01
Common price 2.156,40 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

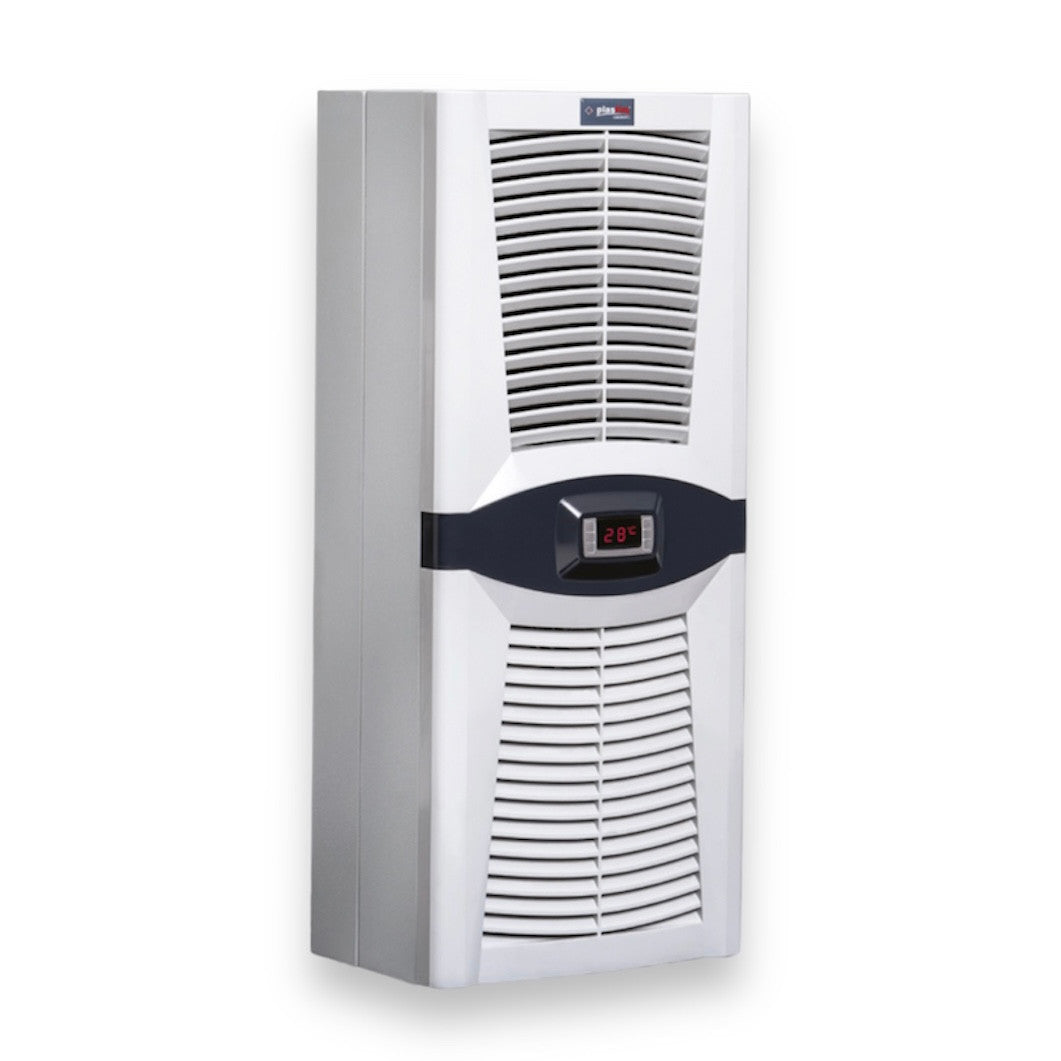

"Design Series" air conditioning unit for panel / cooler 2500 Watt / 8550BTU for side or wall mounting of panel and automation panel.

The PAD2550.01 (PLASTIM) air conditioning unit for electrical cabinets features HIGHLY's advanced open rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the door opening of the electrical cabinet.

Everything needed to install the air conditioning unit for the cabinet is included - seals, drain pipes, mounting screws, power plugs.

TECHNICAL DETAILS

PAD2550.01

Cooling capacity L35 / L35

2500W / 8550BTU

Operating voltage

230VAC

Frequency

50/60 Hz

Starting current

11A

Operating current

3.8A

Fuse

16A

Power consumption

800W

Operating range

0-55 °C

Factory setting of thermostat

35 °C

Differential

4 °C

Max. air volume internal circuit

510 m³/h

Max. air volume external circuit

625 m³/t

Type of refrigerant

R134a

Amount of refrigerant

750gr

Dimensions

980x430x270mm

Weight

47 kg

Sound level

82dB

Protection class (internal circuit)

IP 54

Protection class (external circuit)

IP 34

Color

RAL7035

Compressor

HIGHLY/HITACHI

Compressor type

Rotary

Fans

EBMPAPST

Mounting method

Wall mounting
