Air conditioning for electrical panels / Cooler 380W, PAD0380.01, Plastim

In stock - 4 items available
SKU: PAD0380.01
Common price 1.076,40 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

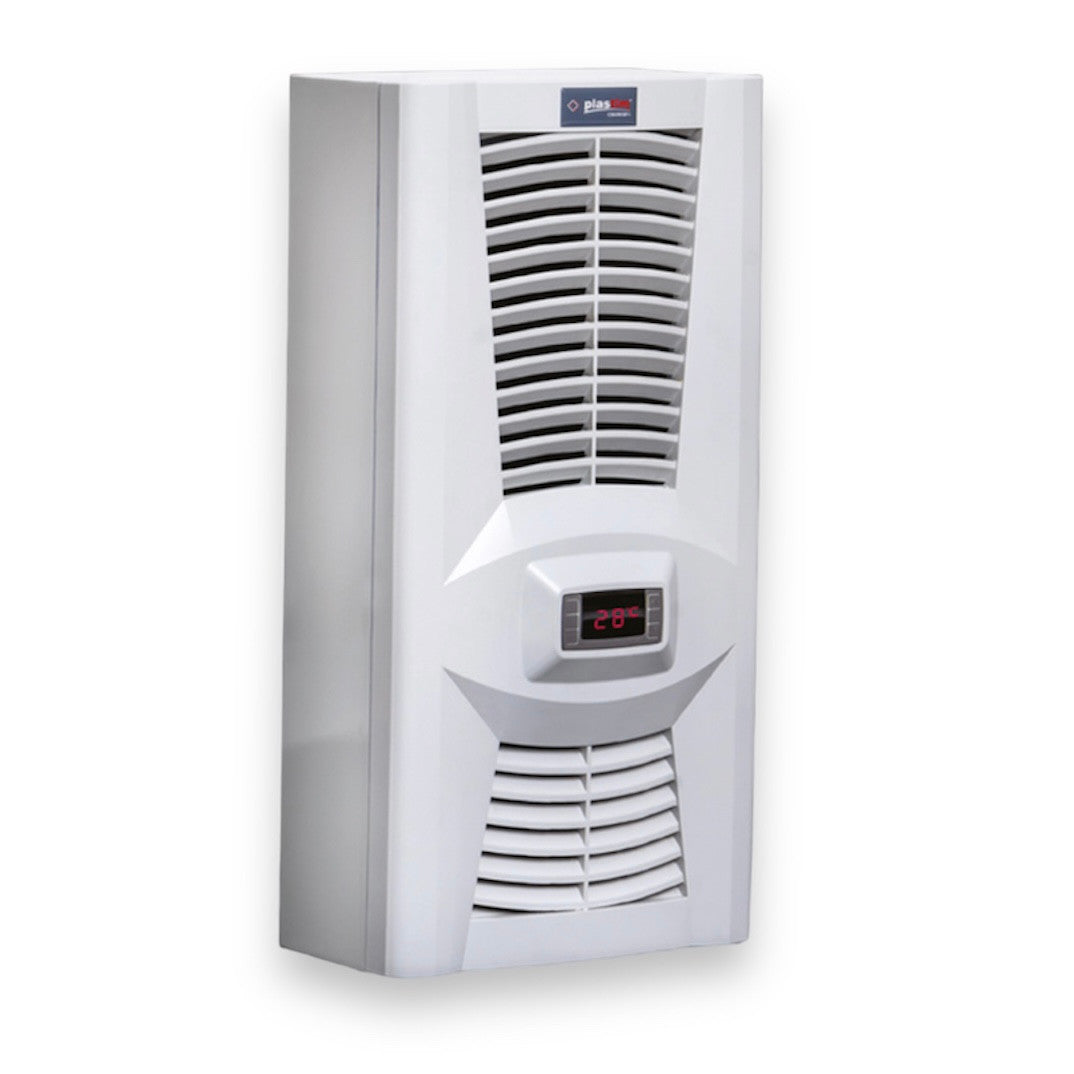

"Design Series" air conditioning unit for panel / cooler 380 Watt / 1300 BTU for panel and automation panel side or wall mounting.

PAD0380.01 (PLASTIM) air conditioning unit for panels has HIGHLY's advanced open rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the panel door.

Everything needed to install the air conditioning unit for the cabinet is included - seals, drain pipes, mounting screws, power plugs.

TECHNICAL DETAILS PAD0380.01
Cooling capacity L35 / L35 380W / 1300BTU
Operating voltage 230VAC
Frequency 50/60 Hz
Starting current 3.7A
Operating current 1.1A
Fuse 5A
Power consumption 325W
Operating range 0-55 °C
Factory setting of thermostat 35 °C
Differential 4 °C
Max. air volume internal circuit 340 m³/h
Max. air volume external circuit 340 m³/t
Type of refrigerant R134a
Amount of refrigerant 120gr
Dimensions 560x285x150mm
Weight 15 kg
Sound level 75dB
Protection class (internal circuit) IP 54
Protection class (external circuit) IP 34
Color RAL7035
Compressor HIGHLY/HITACHI
Compressor type Rotary
Fans EBMPAPST
Mounting method Wall mounting
