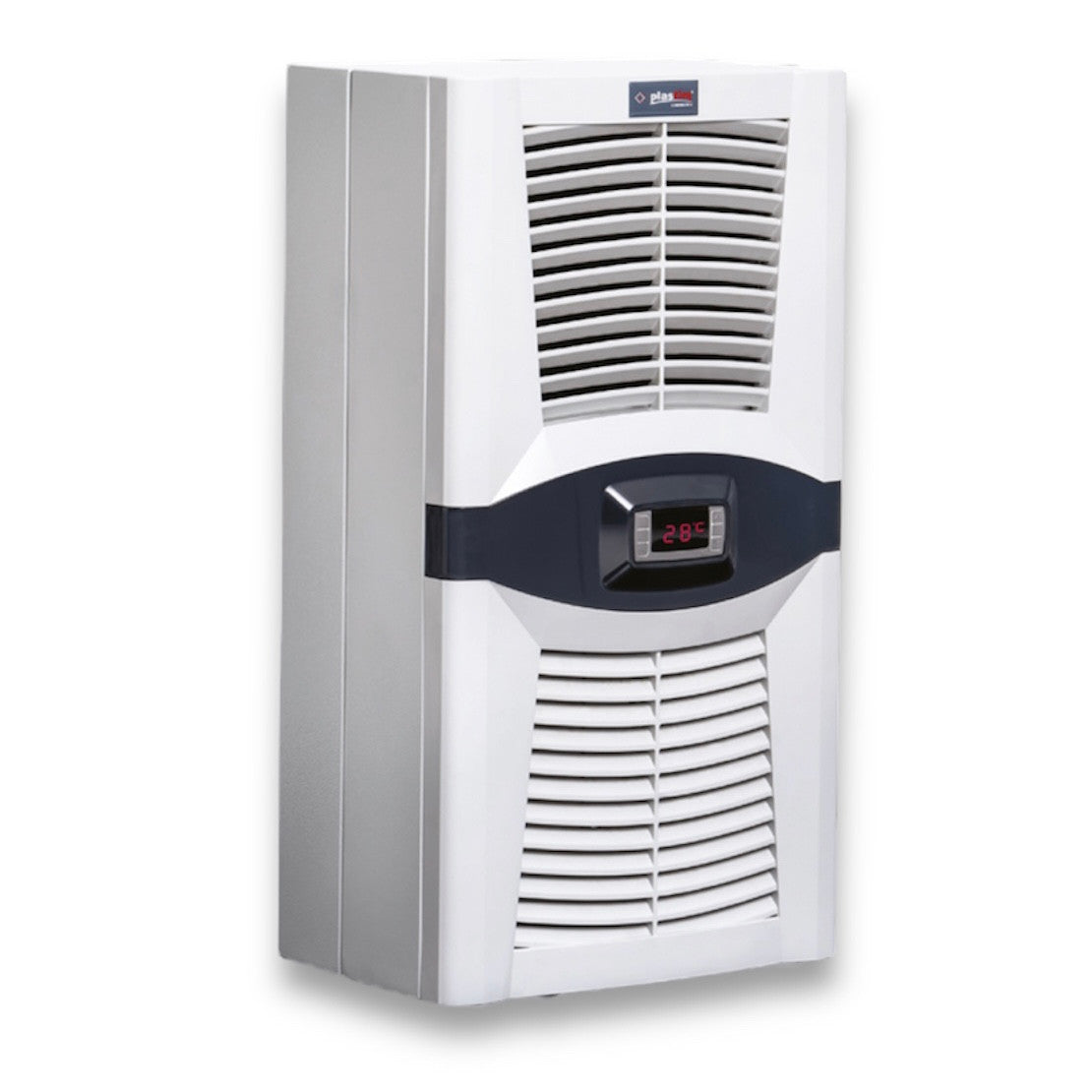

"Design Series" air conditioning unit for panel / cooler 550 Watt / 1900BTU for panel- and automation panel side or wall mounting.
PAD0550.01 (PLASTIM) air conditioning unit for panels has HIGHLY advanced open rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the panel door.
Everything needed to install the air conditioning unit for the cabinet is included - gaskets, drain pipes, mounting screws, power plug.
TECHNICAL DETAILS | PAD0550.01 |
Cooling Capacity L35 / L35 | 550W / 1900BTU |
Operating Voltage | 230VAC |
Frequency | 50/60 Hz |
Starting Current | 1.2A |
Operating Current | 1.1A |
Fuse | 6A |
Power Consumption | 330W |
Operating Range | 0-55 ° |
Factory Setting of Thermostat | 35 ° |
Differential | 4 ° |
Max. Airflow Internal Circuit | 340 m³/h |
Max. Airflow External Circuit | 505 m³/h |
Type of Refrigerant | R134a |
Amount of Refrigerant | 245gr |

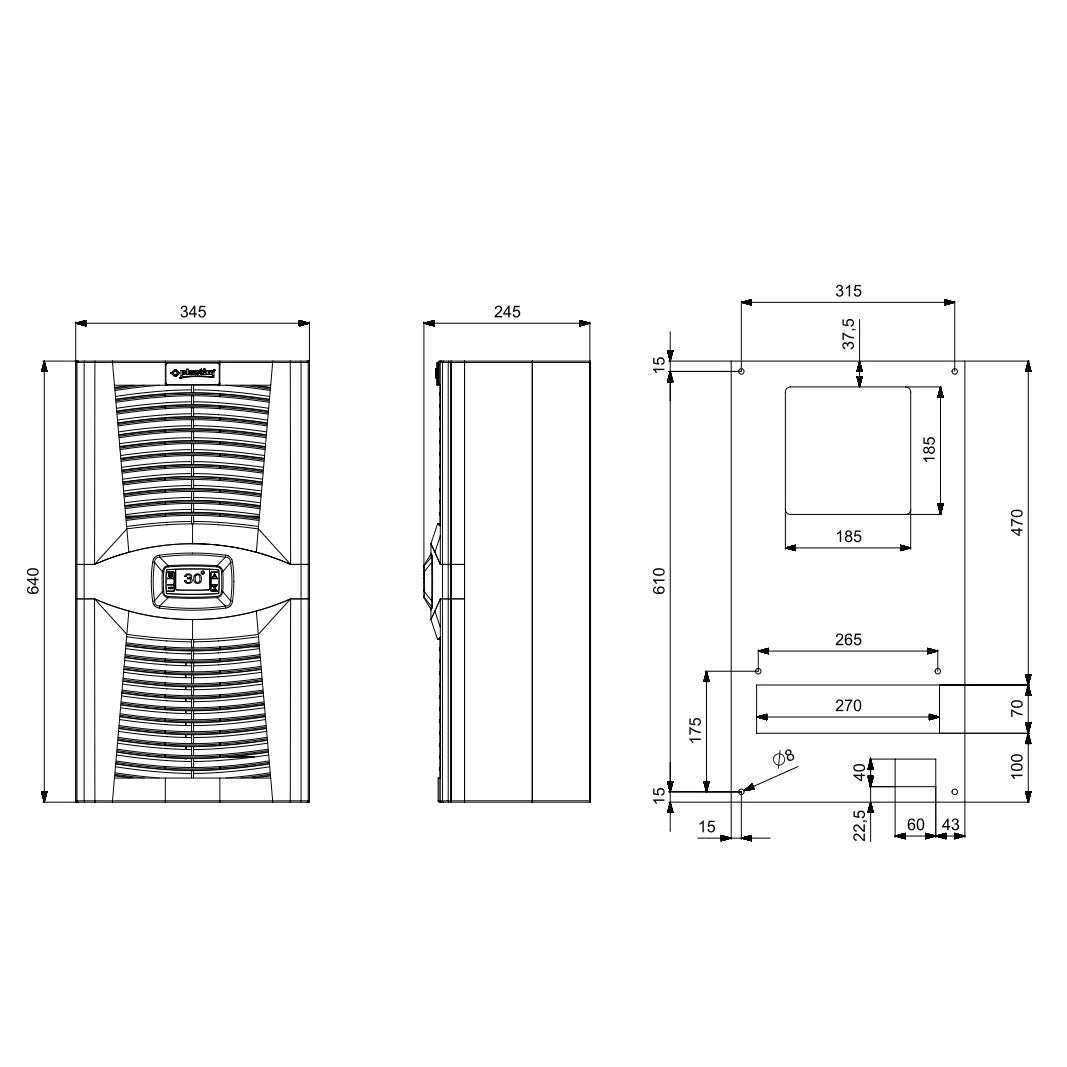

Dimensions | 640x345x223mm |
Weight | 27 kg |
Noise Level | 76dB |
Protection Class (Internal Circuit) | IP 54 |
Protection Class (External Circuit) | IP 34 |
Color | RAL7035 |
Compressor | HIGHLY/HITACHI |
Compressor Type | Rotary |
Fans | EBMPAPST |
Mounting Method | Wall Mounting |
