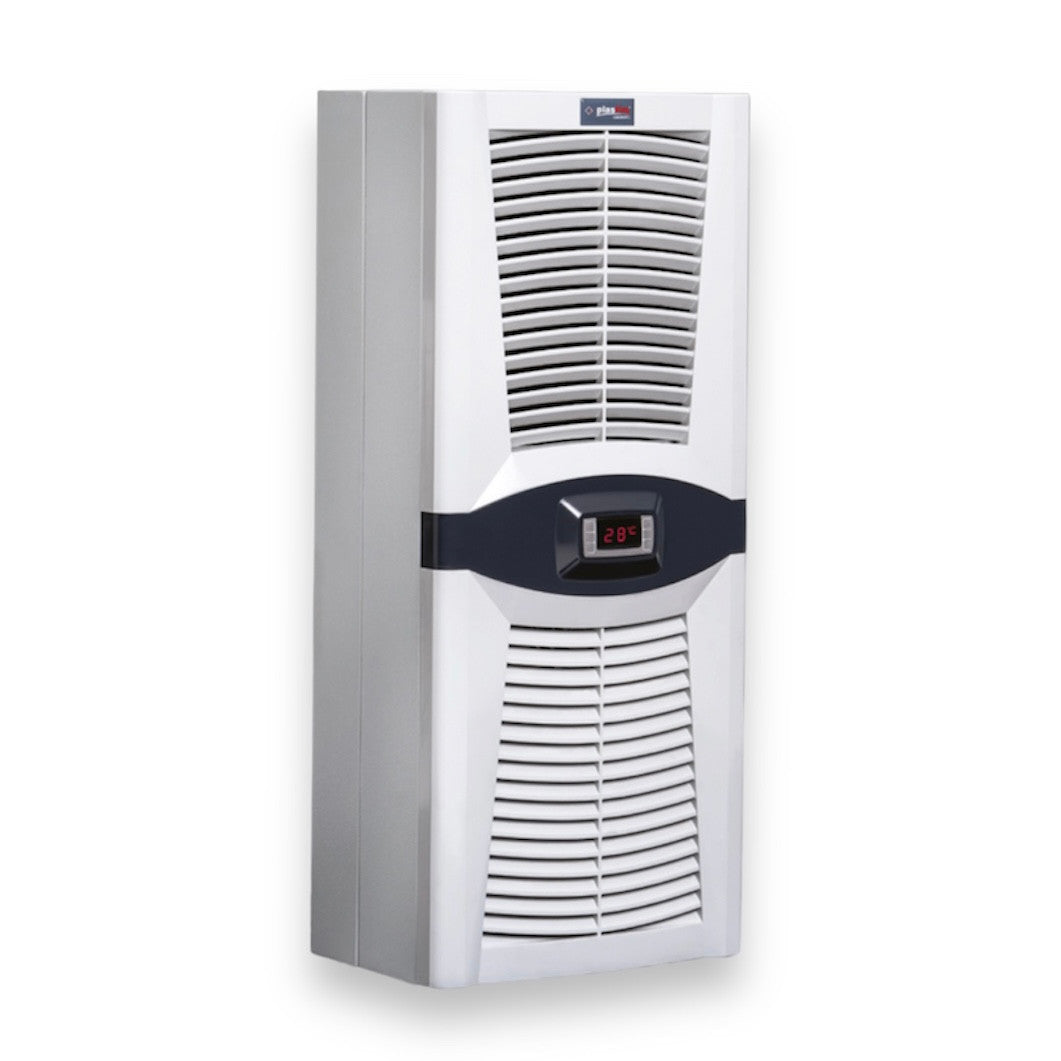

"Design Series" air conditioning unit for panel / cooler 850 Watt / 2990BTU for panel and automation panel side or wall mounting.
The air conditioning unit for panels PAD08500.01 (PLASTIM) is equipped with a modern, open rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the panel door.
Everything necessary for installing the air conditioning unit for the cabinet is included - gaskets, drain pipes, mounting screws, power plug.
TECHNICAL DETAILS | PAD0850.01 |
Cooling capacity L35 / L35 | 850W / 2900BTU |
Operating voltage | 230VAC |
Frequency | 50/60 Hz |
Starting current | 6A |
Operating current | 1.7A |
Fuse | 10A |
Power consumption | 394W |
Operating range | 0-55 °C |
Factory setting of thermostat | 35 °C |
Differential | 4 °C |
Max. air flow internal circuit | 340 m³/h |
Max. air flow external circuit | 505 m³/h |
Type of refrigerant | R134a |
Amount of refrigerant | 290gr |
Dimensions | 800x345x223mm |
Weight | 30 kg |
Noise level | 76dB |
Protection class (internal circuit) | IP 54 |
Protection class (external circuit) | IP 34 |
Color | RAL7035 |
Compressor | HIGHLY/HITACHI |
Compressor type | Rotary |
Fans | EBMPAPST |
Mounting method | Wall mounting |
