TENSE

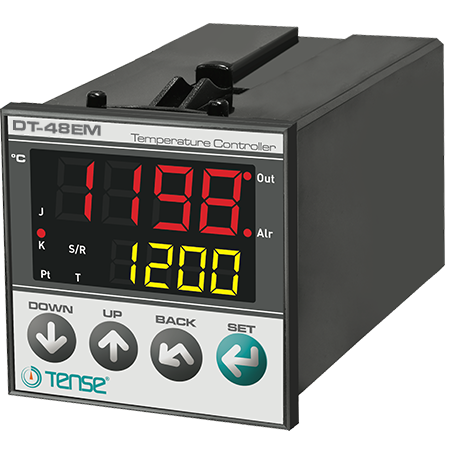

Microprocessor PID temperature controller for relay panel + SSR output up to 1750 °C

In stock - 11 items available
SKU: DT-48EM
variant
44,00 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

PID temperature controller for panel mounting, relay + SSR outputs, measurement range -100°C ... +1750°C, resolution/step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial equipment.

The temperature controller is implemented with on/off or PID control. The controller offers self-optimization to prevent process overshoot.

  • Automatic setting of PID parameters

  • Sensor type: T/C (J,K,T,S,R), Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF.

  • Automatic removal of 'overshoot' in PID mode

  • Anti-windup

  • ON delay for OUT in cooling mode

  • Password protection

  • EEPROM memory for storing settings

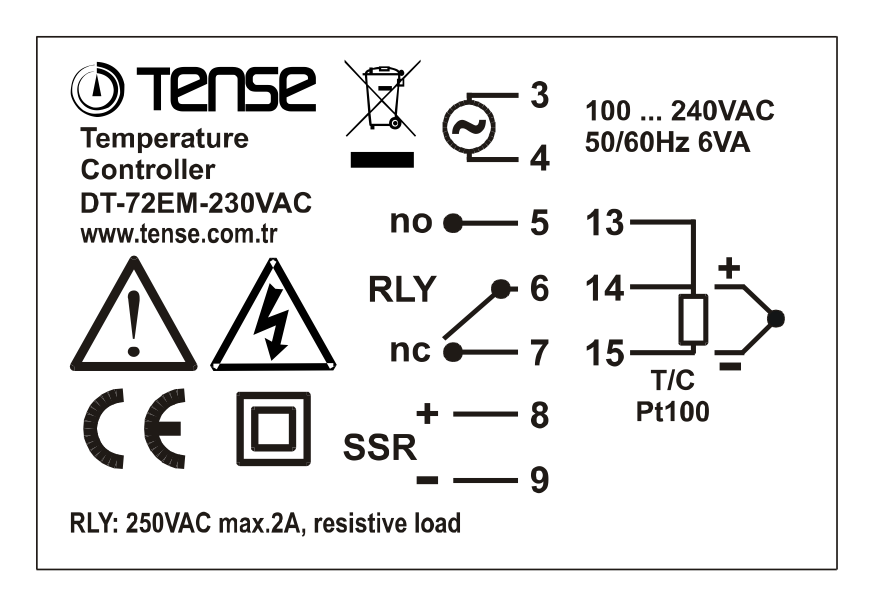

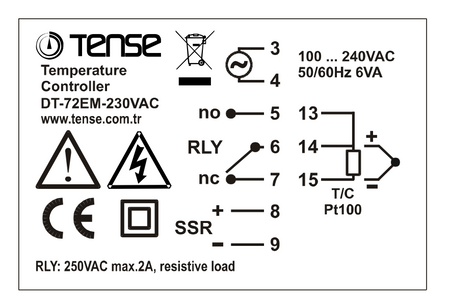

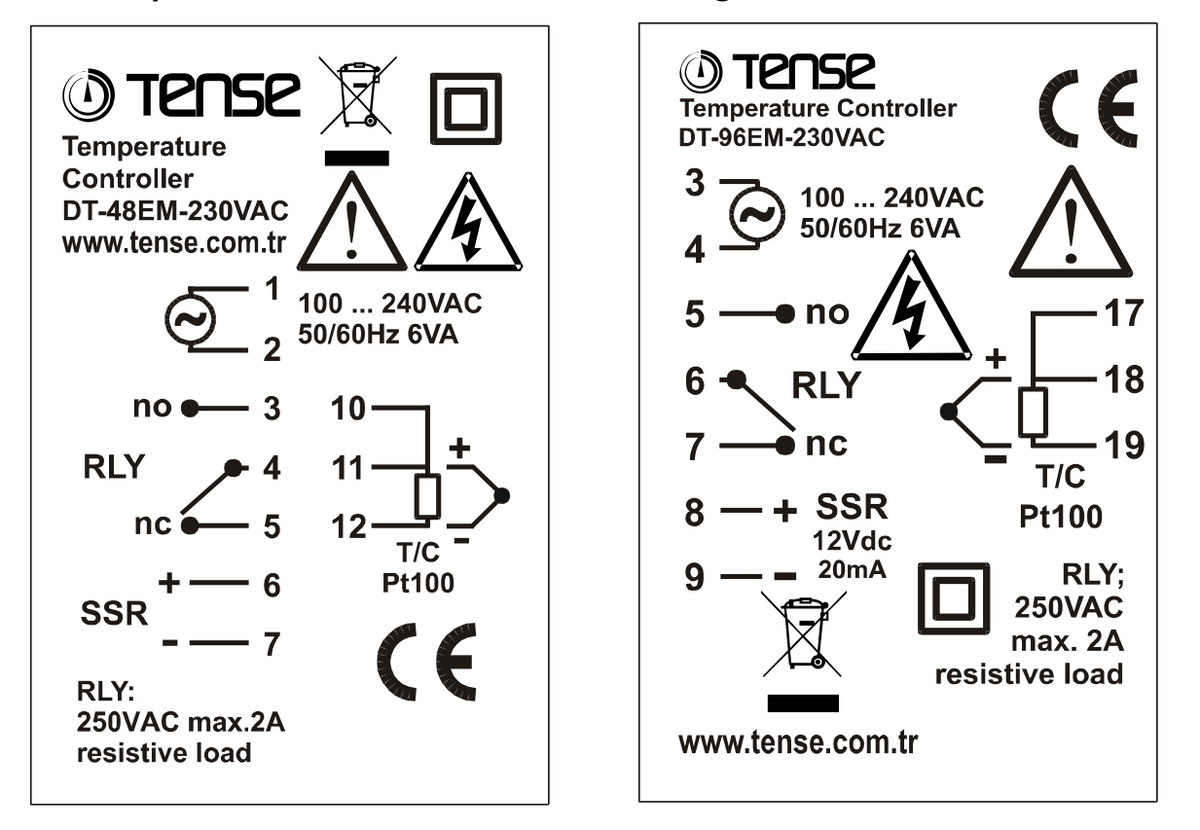

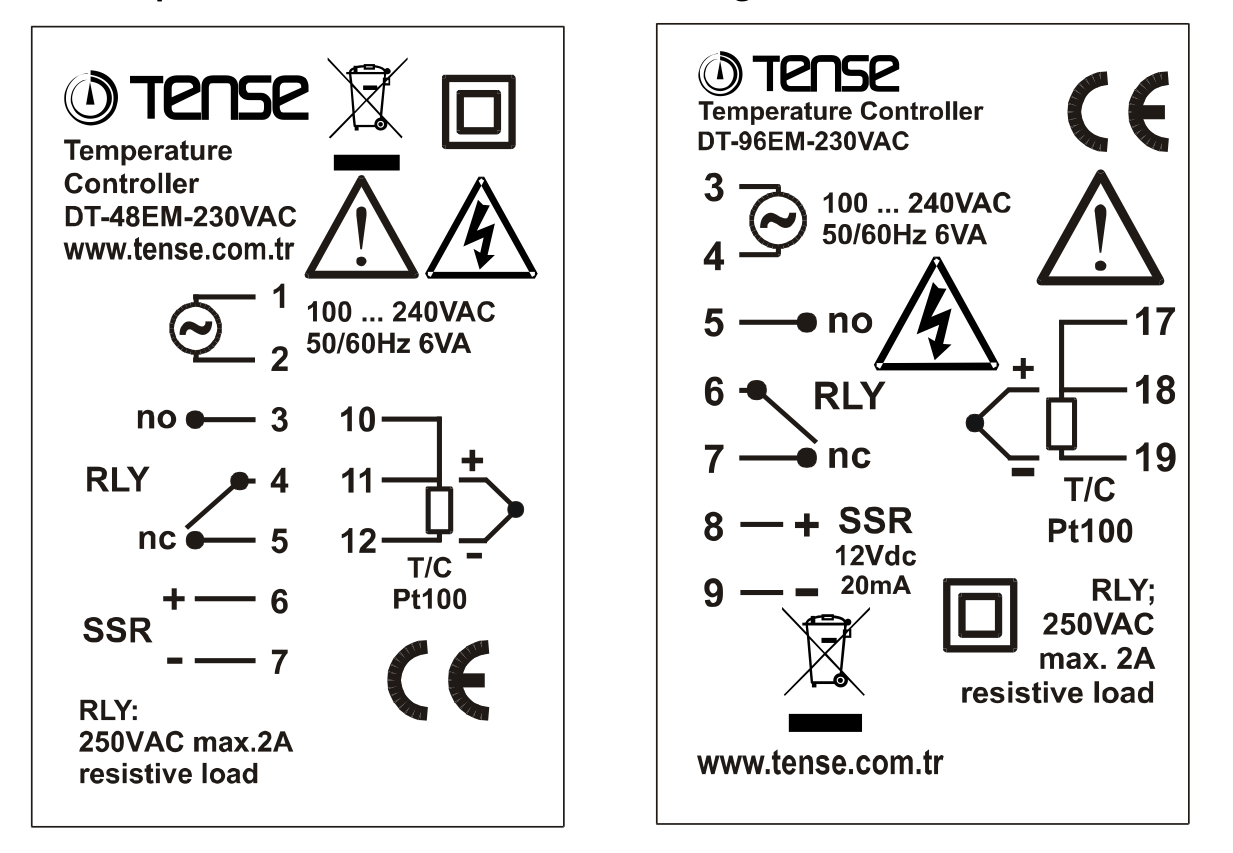

  • Relay outputs OUT (NO+NC) 250VAC, 2A/ SSR max 12Vdc, 20mA

The measurement range depends on the sensor and can be set using the buttons on the temperature controller.

The display on the temperature controller is a high-contrast display that can only be read accurately under poor conditions.

Don't forget to order our temperature sensors - type J Fe-Const thermocouples (metric 6/8) with temperature measurement range: -100 °C - +600 °C. Available with cable lengths of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
