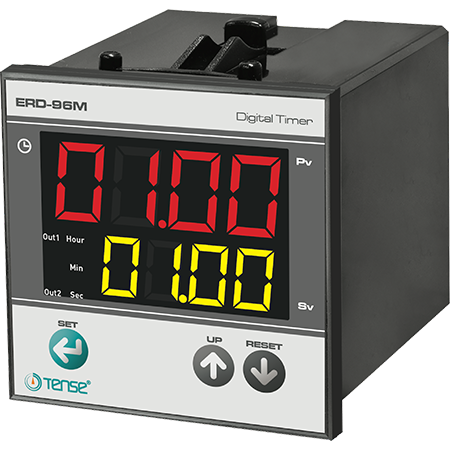

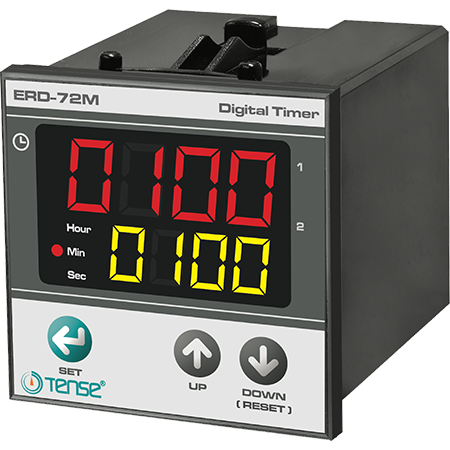

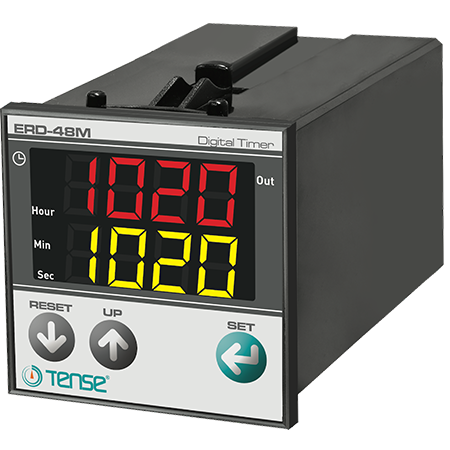

Multifunctional time relay with 2x4 LED display for panel/door mounting. VOLTAGE ERD-96M, ERD-48M, ERD-72M

Time relay with eight functions:

Mode 0: Pulsating delay, OFF with RESET

Mode 1: Flashing with START/RESET

Mode 2: One shot after ON and OFF

Mode 3: OFF delay

Mode 4: Follow and turn on delay

Mode 5: Delayed one shot after OFF

Mode 6: Chronometer - counting with START

Mode 7: Chronometer - counts with START, resets with RESET

Time setting range:

99:59 hours / 99:59 minutes / 599.9 seconds
