Multifunctional time relay time range: 0.1 s - 30 h 12V-240V AC/DC

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

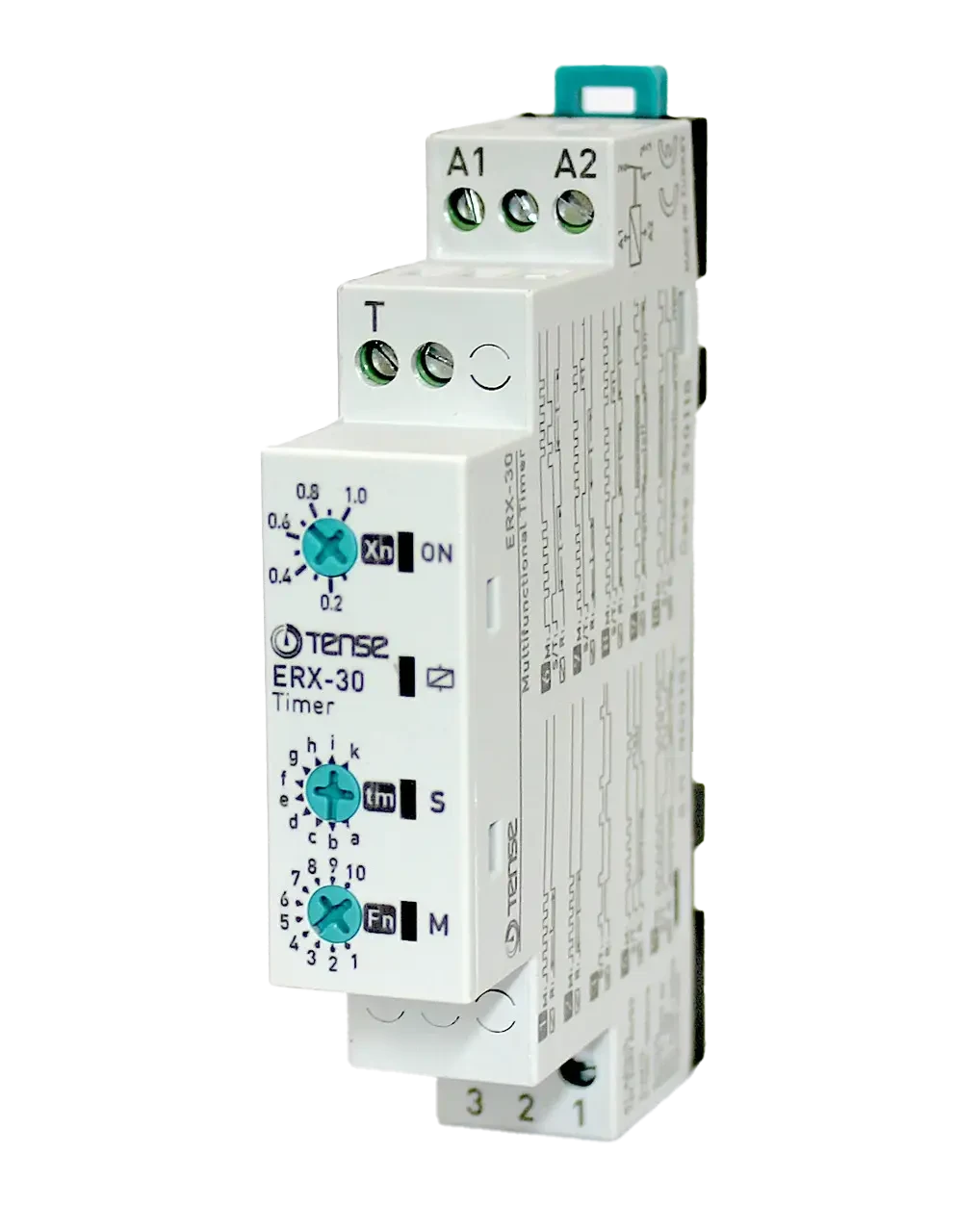

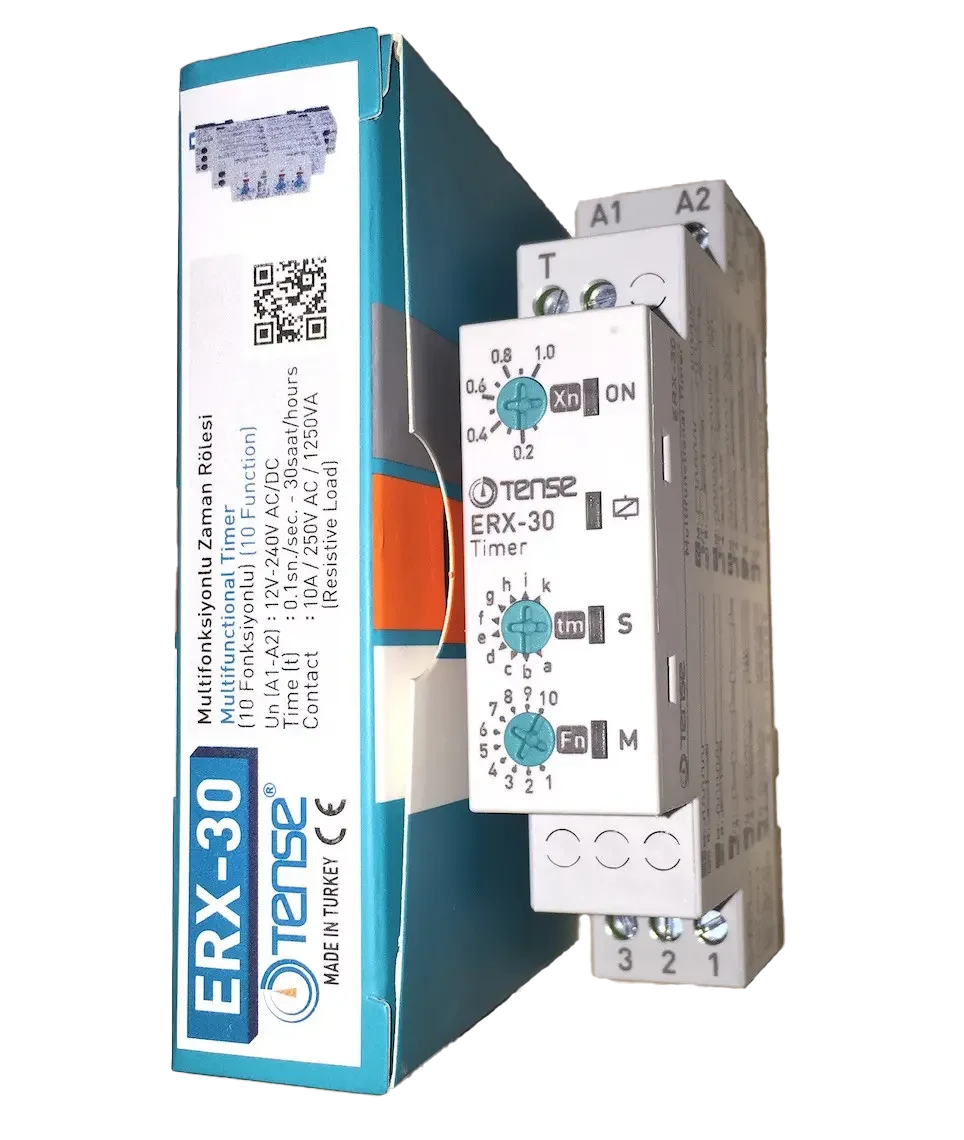

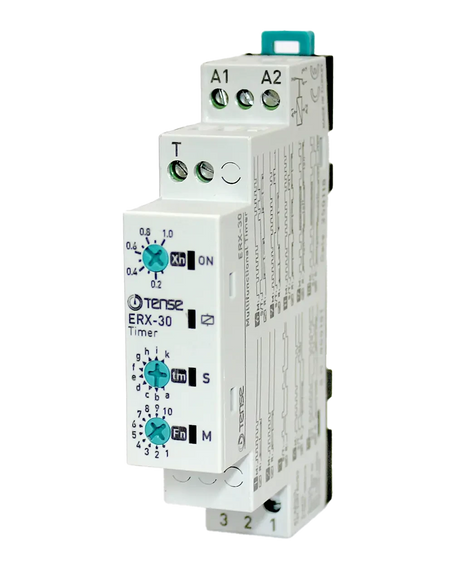

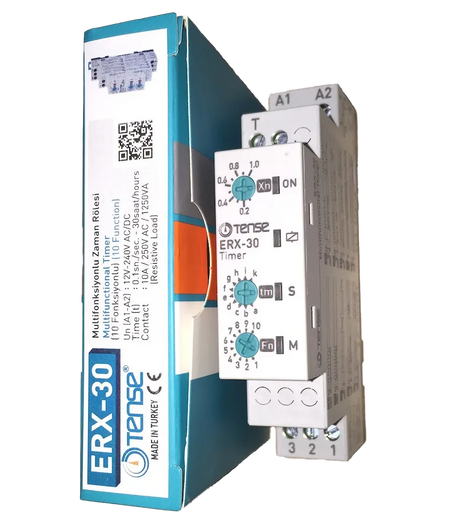

Multifunctional time relay (10 functions) 12V - 240V AC/DC with 1 changeover contact.

The time relay is multifunctional, designed to control time processes in automation systems in production and household. This relay can be used in industrial equipment - roasting coffee or seeds, preparing meat products, packaging/wrapping lines, as well as in houses or apartments, for example, to control a fan in the toilet or lighting on the stairs.

The 10 built-in time functions cover a wide range of tasks: for example, organizing automatic ventilation processes, opening/closing windows, periodically turning on heating or ventilation, for lighting or rotating advertising signs, in washing machines, jumping control inputs, rotation - delay on, delay off, delay on and off at the same time, etc.

It should be noted that this time relay is also versatile in terms of performance - it can operate with alternating current and direct current in the range of 12 to 240 volts!

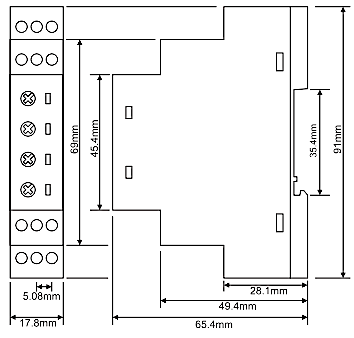

The time relay is mounted on a standard 35 mm DIN rail

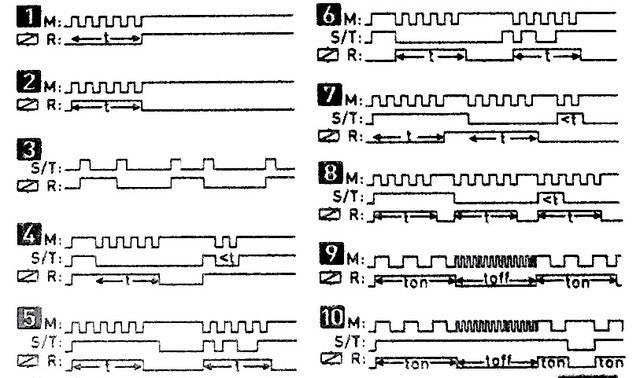

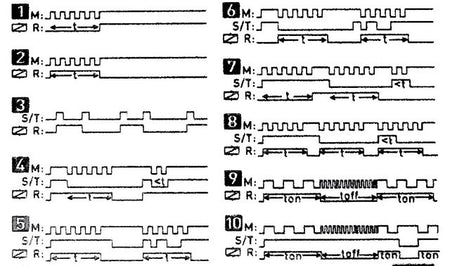

• Bistable relay 12v 24V 48v 110v 230 AC DC
• Delayed start 12v 24V 48v 110v 230 AC DC
• Delayed return 12v 24V 48v 110v 230 AC DC
• Gap start turn signal 12v 24V 48v 110v 230 AC DC
• Delayed start after switching and delayed 12v 24v 48v 110v 230 AC DC
• Gap-start turn signal 12v 24V 48v 110v 230 AC DC
• Delayed start after ignition and delayed return after switching off the control switch (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
• Impulse generator 12v 24V 48v 110v 230 AC DC
• SINGLE SHOT falling edge 12v 24V 48v 110v 230 AC DC
• Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC

The ERX-30 universal time relay easily replaces the more expensive analogues on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003
