TENSE

Network analyzer panel power, voltage, frequency, power, energy, RS485

In stock - 27 items available
SKU: TPM-04SHDL
133,60 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

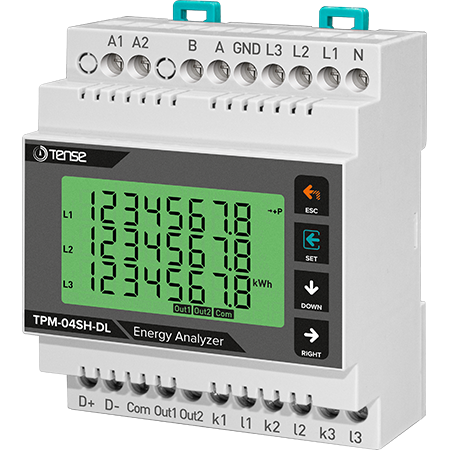

3-phase network analyzer / Network analyzer / Network analyzer - multifunctional digital panel meter, current, voltage, frequency, and total power indicator, with relay output, RS485 ModBus RTU - TPM-04SHDL manufacturer TENSE (Turkey) panel meters.

Power analyzers are designed to measure and monitor electrical values. Thanks to the communication function, the measured energy values can be monitored and reported independently. Analyses such as power quality, efficiency, and calculation of unit costs can be performed using power analyzers.

Main advantages:

  • RS485 Modbus RTU (1200-19200b/s)
  • Three-phase voltage transformer and three-phase current transformer.

  • It shows the harmonic components of voltage and current up to the 31st harmonic.

  • Displays active power per phase (P)

  • Displays reactive power per phase (Q, inductive and capacitive)

  • Displays apparent power in phase (S)

  • Displays Cosφ and power factor values for each phase.

  • Displays values for voltage (V) and current (I) between phases and neutral phases and measures frequency.

  • Displays total import and export values for active energy (ΣkWh)

  • Displays total values for inductive and capacitive reactive energy (ΣkVArh).

  • Displays minimum and maximum values, max. demand

  • 2 relay outputs, 1 digital input

  • Event logs (high/low voltage/current, voltage/current asymmetry, THD-I)

  • The menu is password protected.

Typically, this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. If you want to connect the analyzer to ModBus, we will send you a "registration table" with ModBus addresses upon request.
