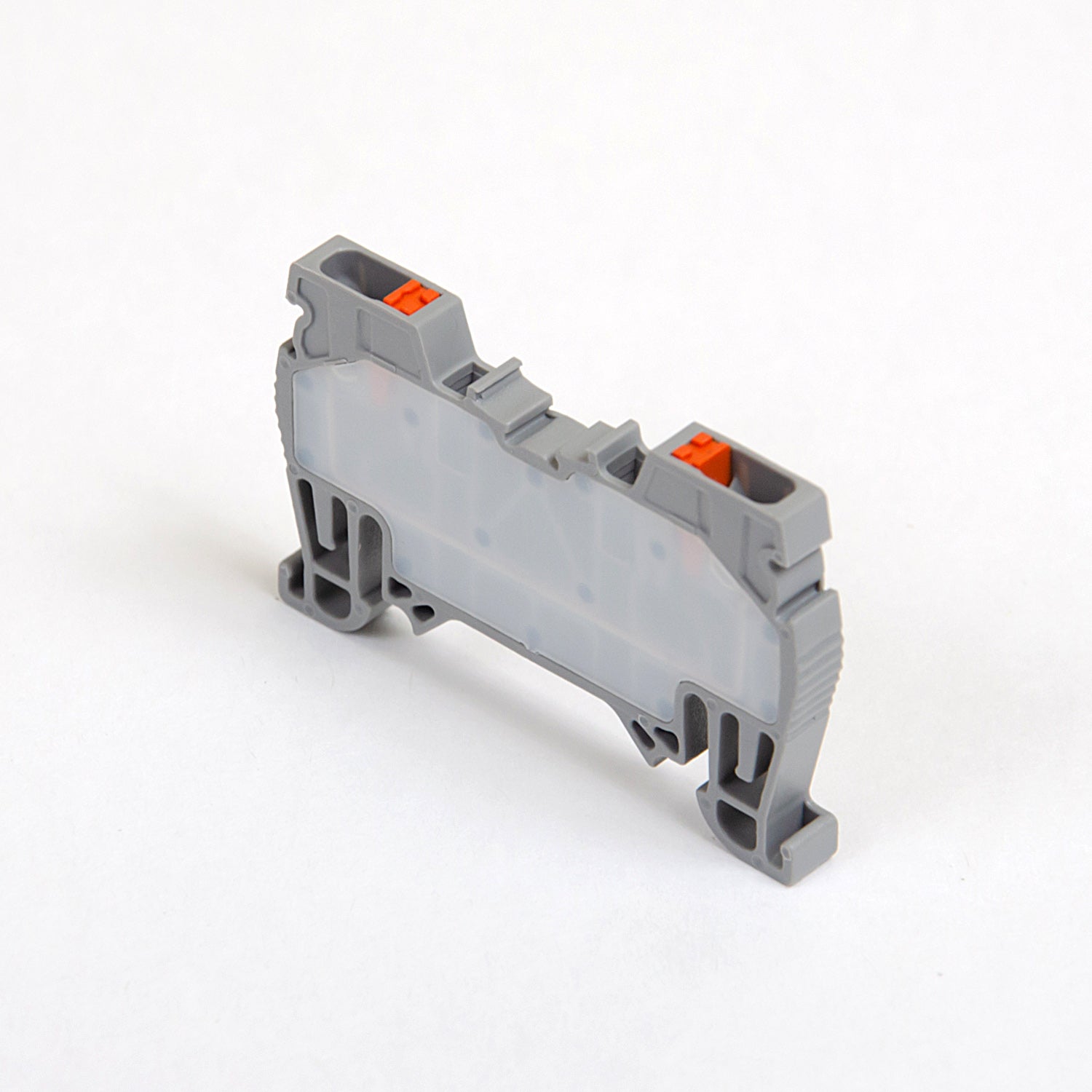

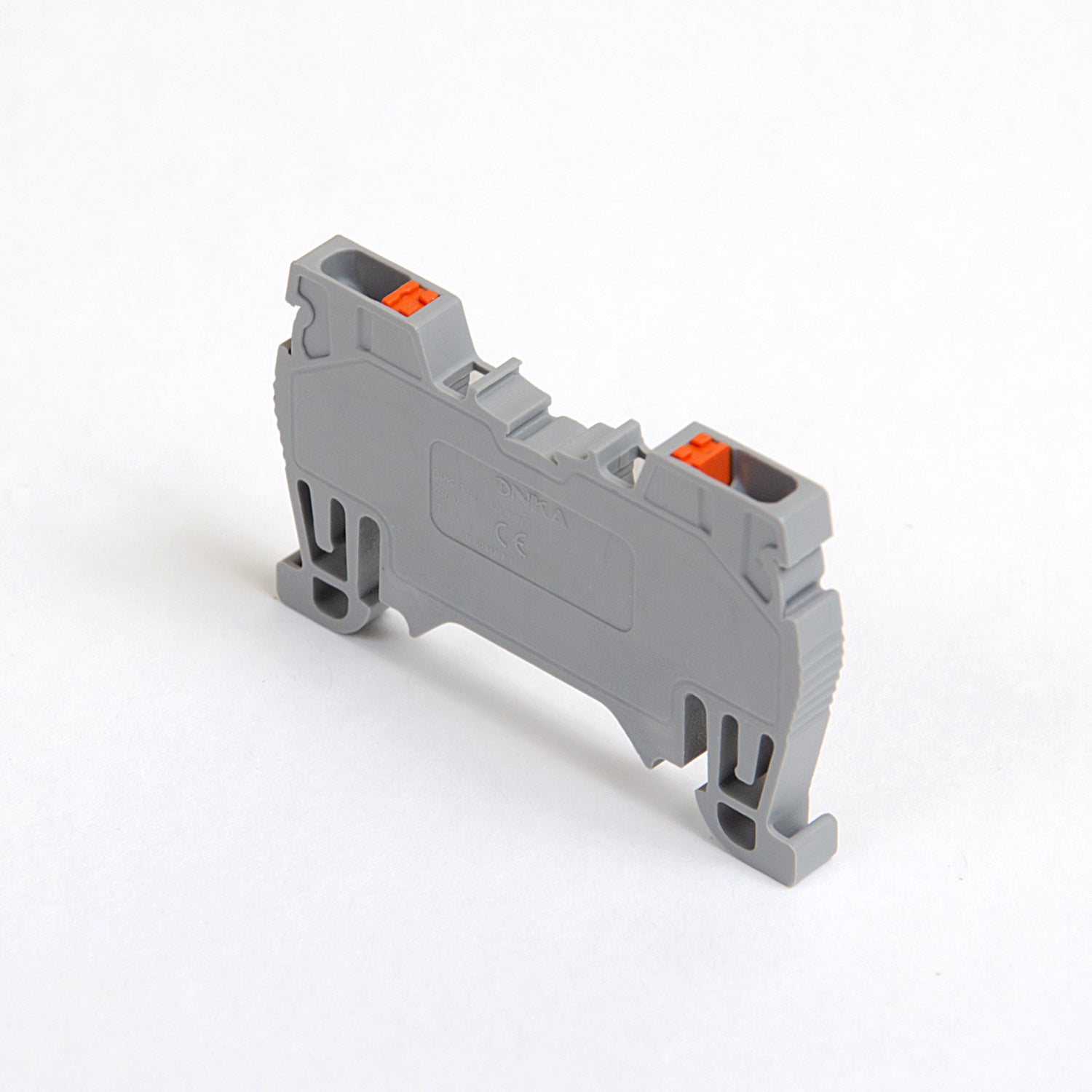

Spring Rail Connector / DIN Rail Terminal 2-Pole, Retractable Contact, Gray, ONKA, Manufactured in Turkey

ONKA's compact installation rail connectors provide great opportunities for connecting all wires with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick connectors are easy to install and provide 100% connection security.

Technical Parameters

Cross-section of the connected single wire up to: 1.5 mm2
Color: gray
Insulation material in the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: Top / top
Length of cable strip: 9 mm
Electrical connection type: spring clamp/retractable contact
Nominal voltage: 750V
Nominal current: 17.5A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
