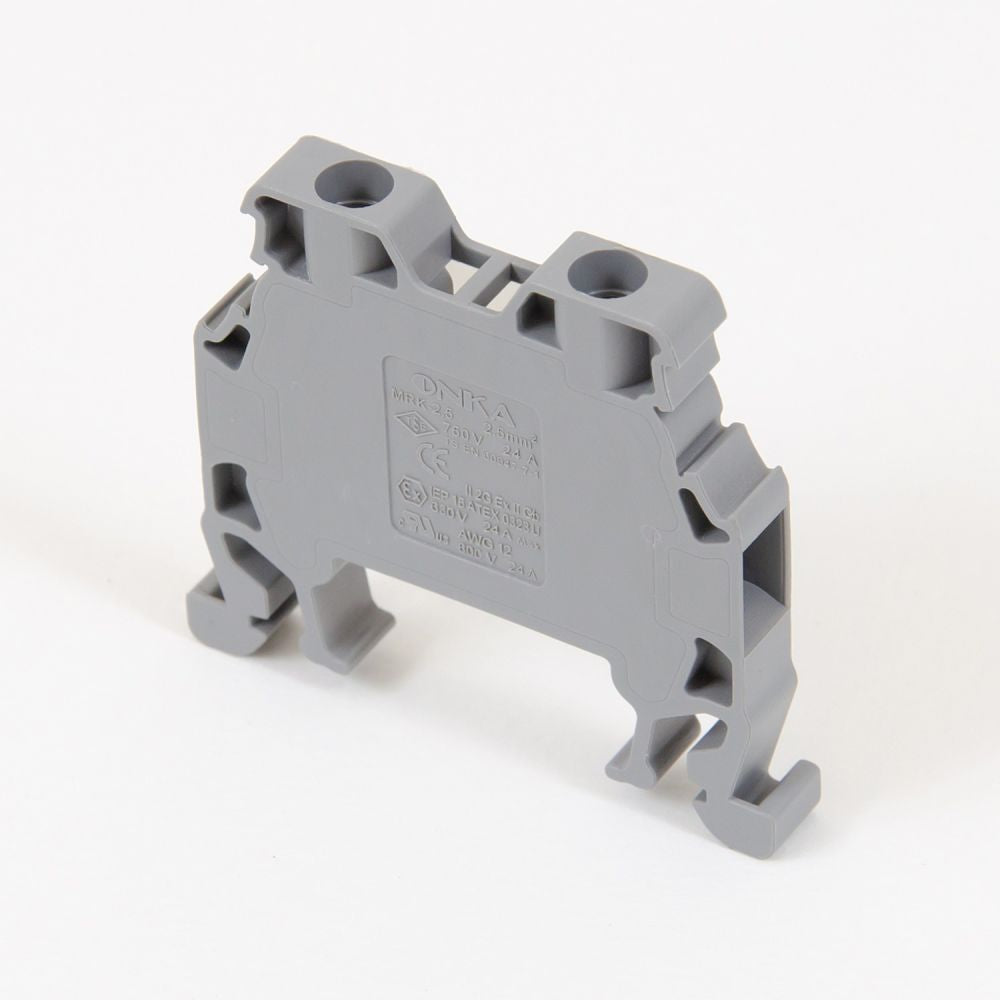

ONKA 1.5 mm2 screw terminal DIN rail terminal 2-pole gray, 1010002
Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail
Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget
Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.
On invoice - this payment variant has partners who have entered into a framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.
In the event of a complaint, no fee is charged for the return of goods.

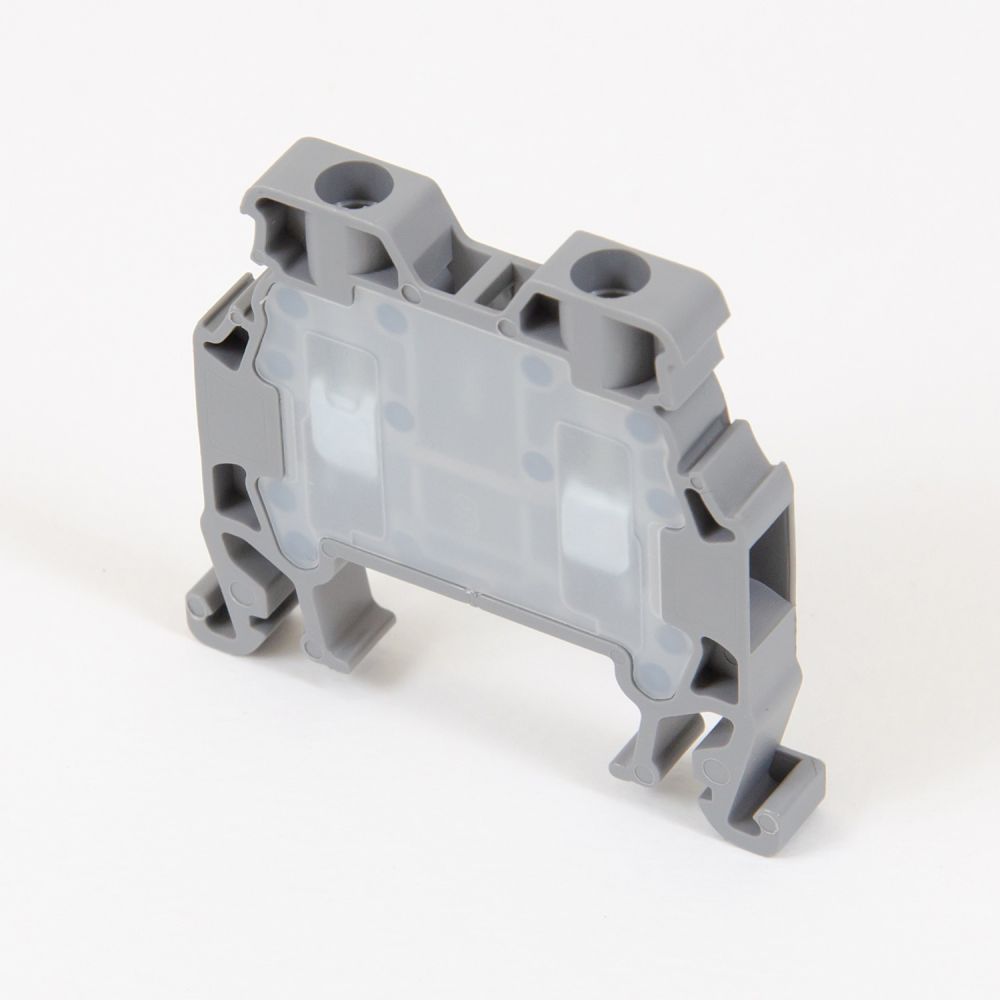

ONKA's compact installation rail connectors provide good opportunities to connect all wires with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick connectors are easy to install and 100% reliable. Technical Parameters Cross-section of the connected single wire up to: 1.5 mm2
Color: gray
Insulation material in the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Tightening torque: 0.4 Nm
Connection position: lateral/side
Cable strip length: 10 mm
Electrical connection type: screw terminal
Nominal voltage: 750V
Nominal current: 17.5A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
