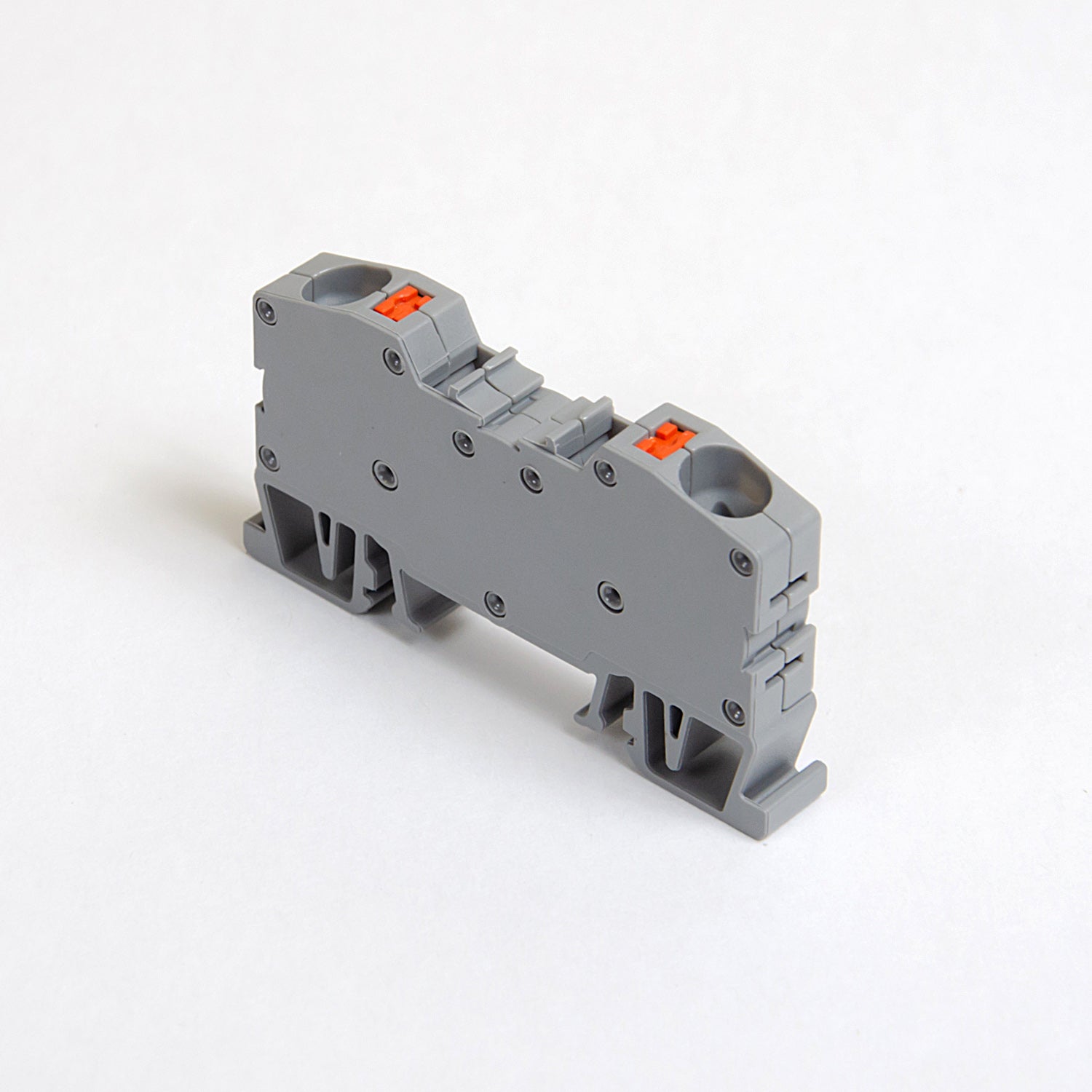

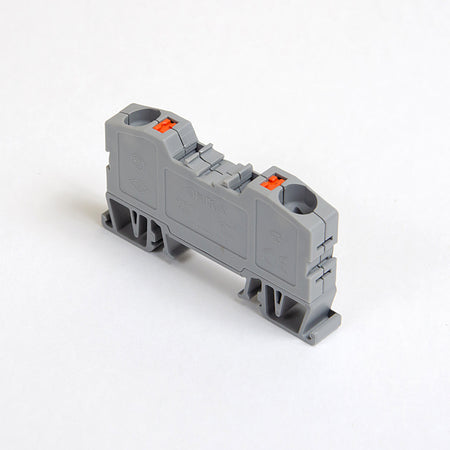

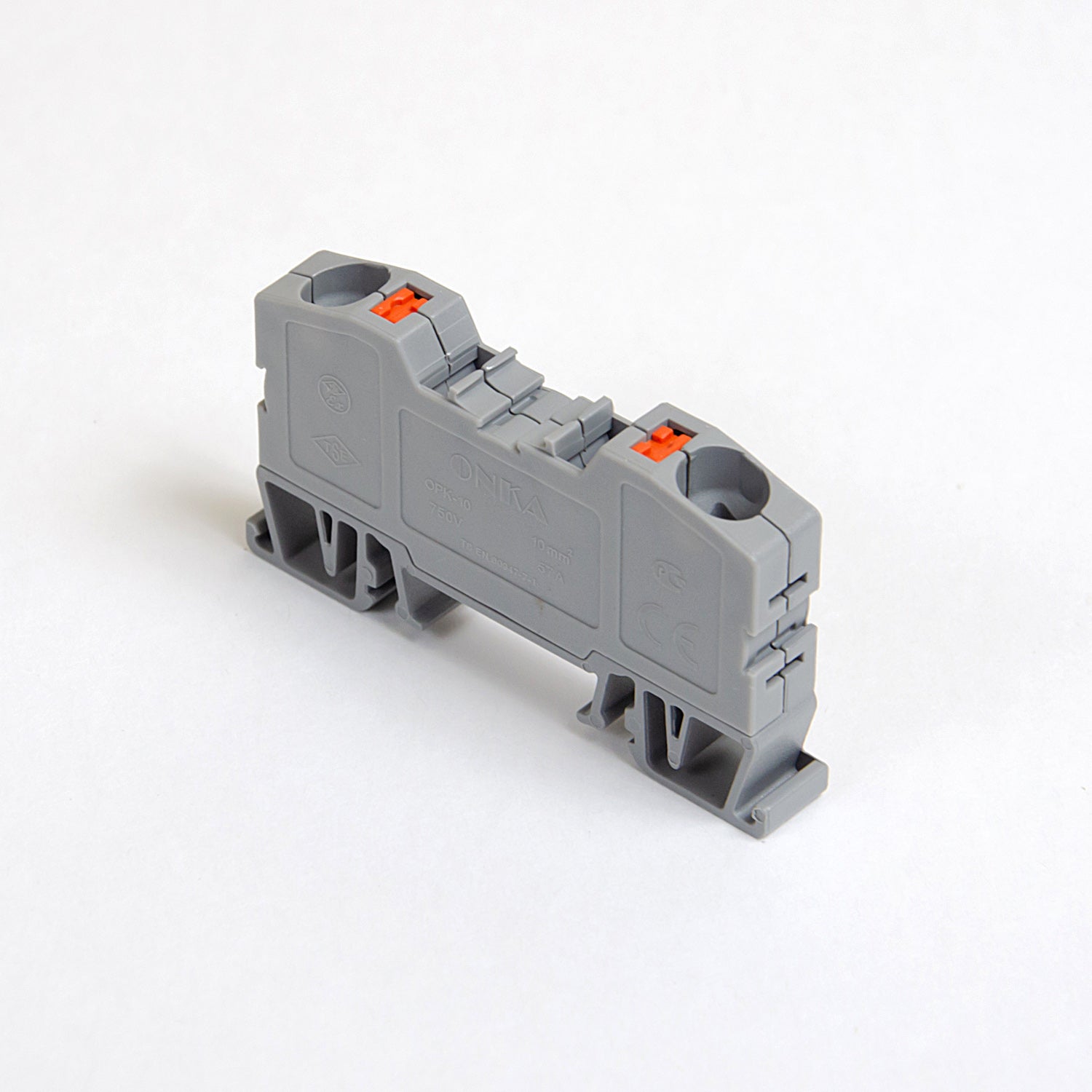

ONKA 10mm2 spring rail terminal DIN rail terminal 2-pole gray, 1020044
Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail
Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget
Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.
On invoice - this payment variant has partners who have entered into a framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.
In the event of a complaint, no fee is charged for the return of goods.
ONKA's kompakte installationsskinnekoblinger giver store muligheder for at forbinde alle ledninger med forskellige tværsnit. Det gennemsigtige hus gør det nemt at kontrollere den korrekte placering af ledningerne. De originale ONKA-hurtigkoblinger er nemme at installere og giver 100 % tilslutningssikkerhed.
Tekniske parametre
Tværsnit af den tilsluttede enkeltledning op til: 10mm2
Farve: grå
Isolationsmateriale i hovedhuset: polyamid (PA6.6)
Kontakt/bro-materiale: rustfrit stål/kobber
Tilslutningsposition: Top / top
Længde på kabelstrimmel: 12 mm
Type elektrisk forbindelse: fjederklemme/indtrækkelig kontakt
Nominel spænding: 750V
Nominel strøm: 57A
Driftstemperaturområde fra: -40°C
Driftstemperaturområde op til: 140°C
Monteringsmetode: DIN 35 mm monteringsskinne
Norm: EN-60947-7-1
