ONKA 10mm2 spring rail connector terminal DIN rail terminal 2-pole blue, 1020047

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

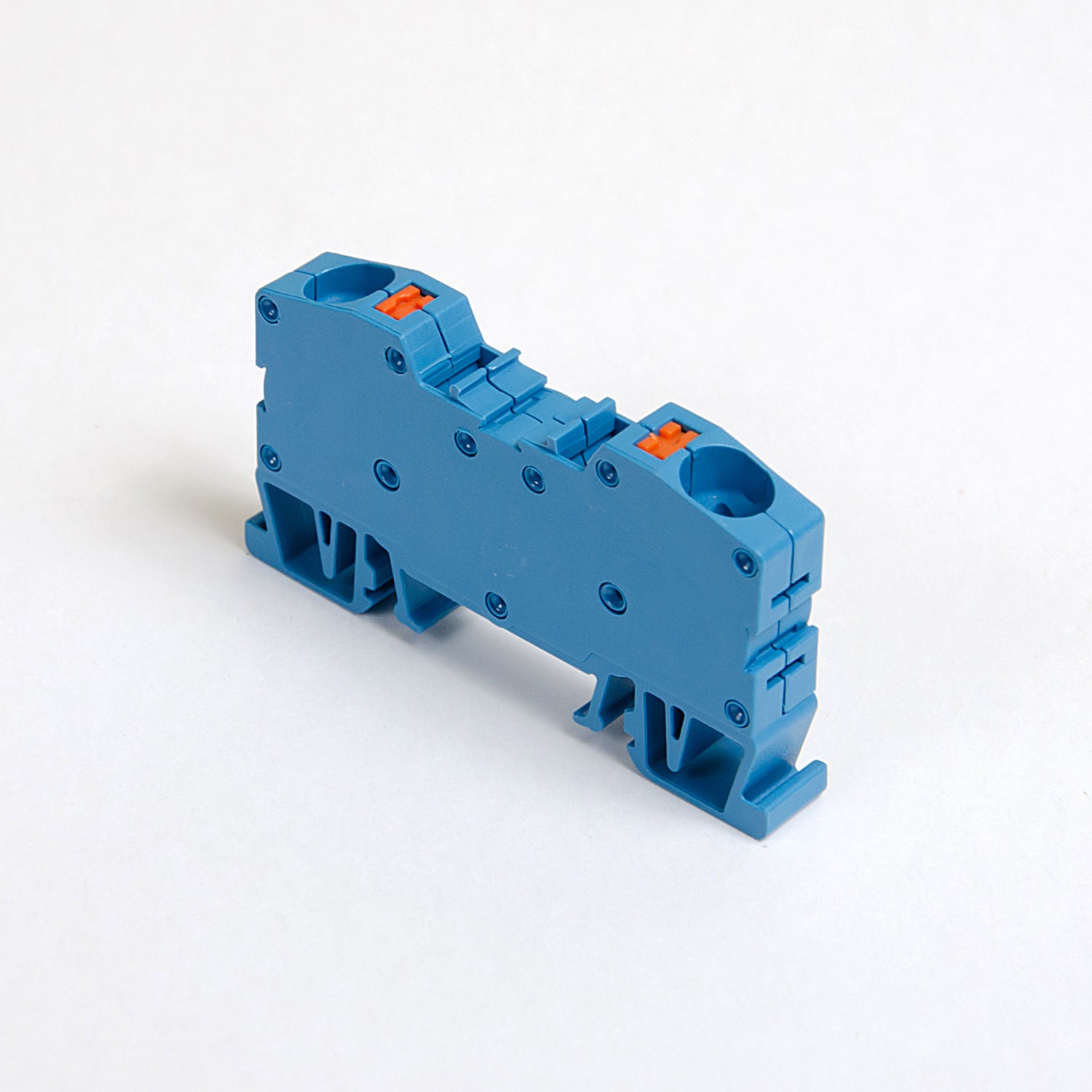

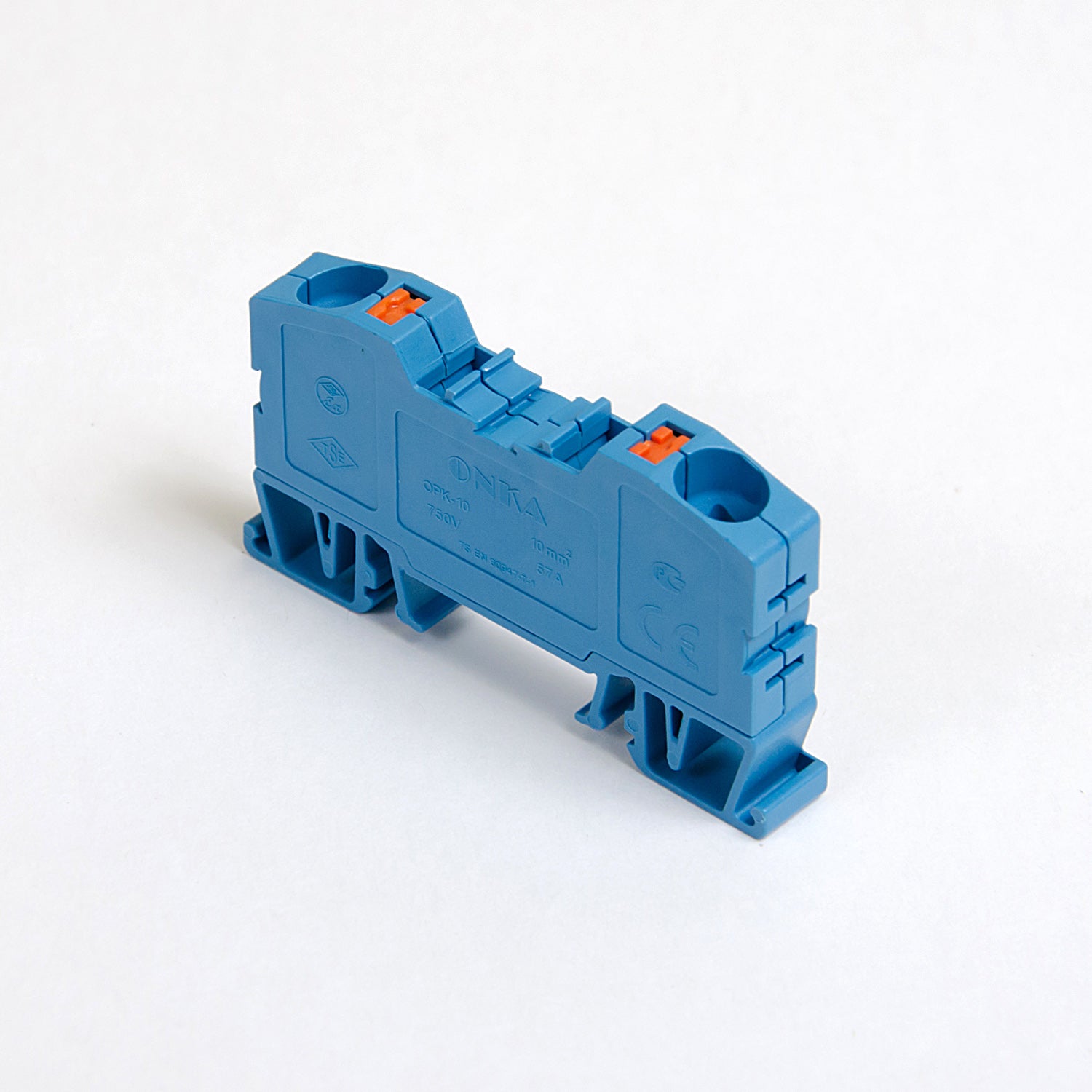

Spring rail connector / DIN rail terminal 2-pole, retractable contact, blue, ONKA, made in Turkey.

ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector is made of high-quality materials and guarantees long-lasting use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single wire up to: 10mm2
Color: blue
Insulation material in the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 12 mm
Type of electrical connection: spring clamp/retractable contact
Nominal voltage: 750V
Nominal current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
