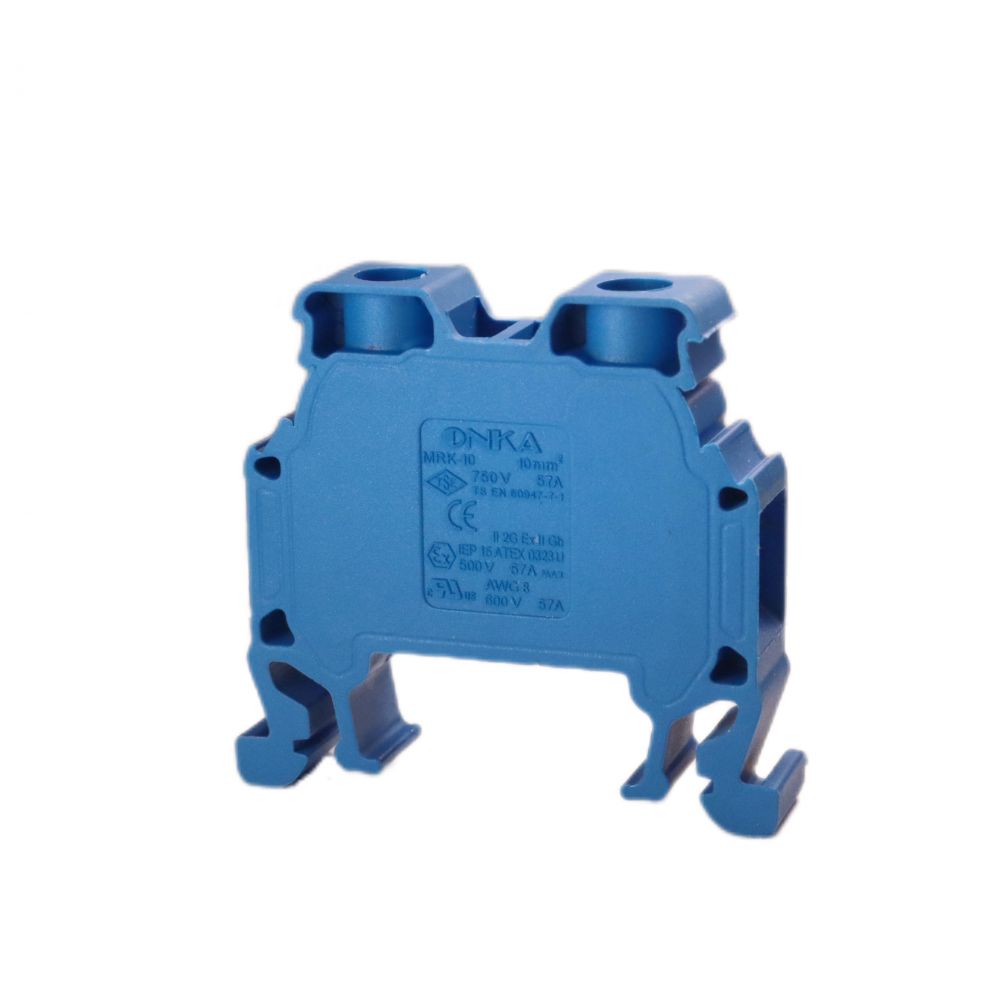

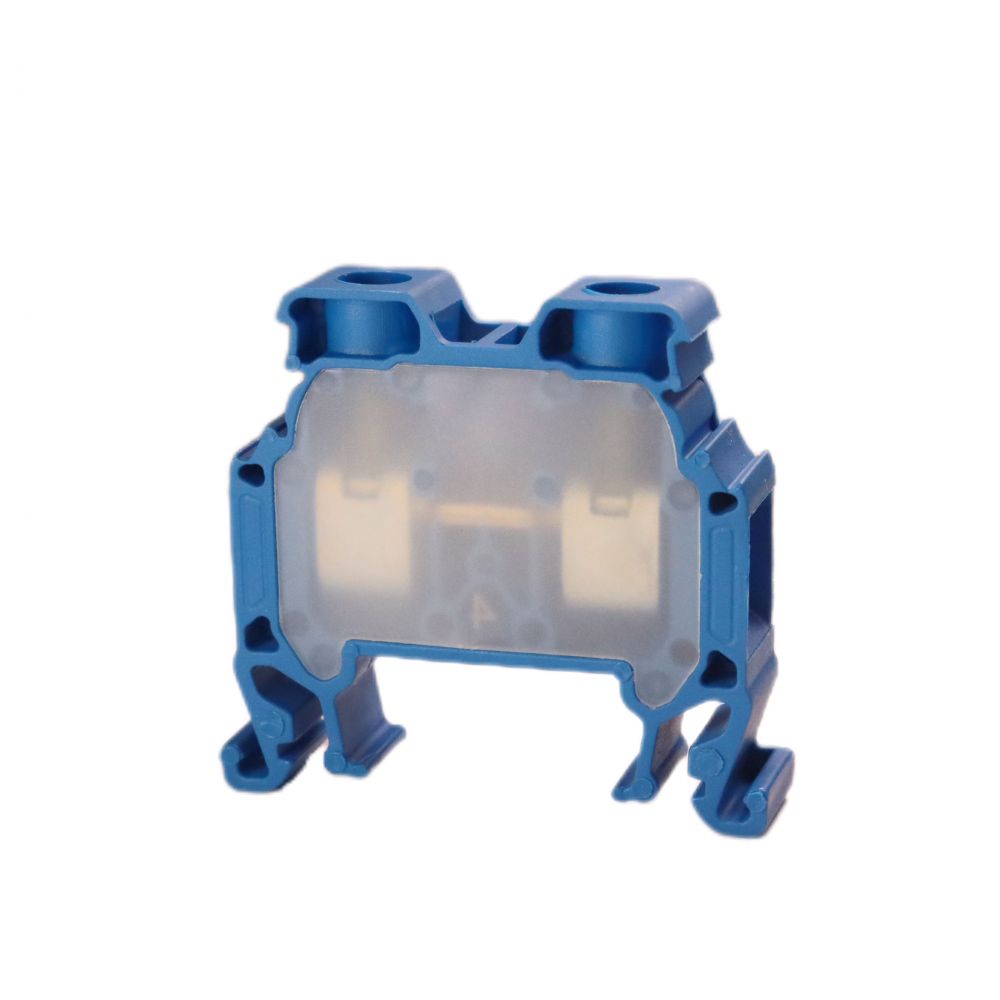

Terminal Block / DIN Rail Terminal 2-Pole Blue, ONKA, Manufactured in Turkey

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The plug is made of high-quality materials and guarantees long-lasting use and resistance to mechanical damage.

Technical Parameters

Cross-section of the connected single wire up to: 12mm2
Color: blue
Insulation material in the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: lateral/side
Cable strip length: 10 mm
Electrical connection type: screw terminal
Nominal voltage: 750V
Nominal current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
