ONKA 150mm2 M12 Screw Terminal Block DIN Rail Clamp with Protective Cover, Blue, 1030091

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

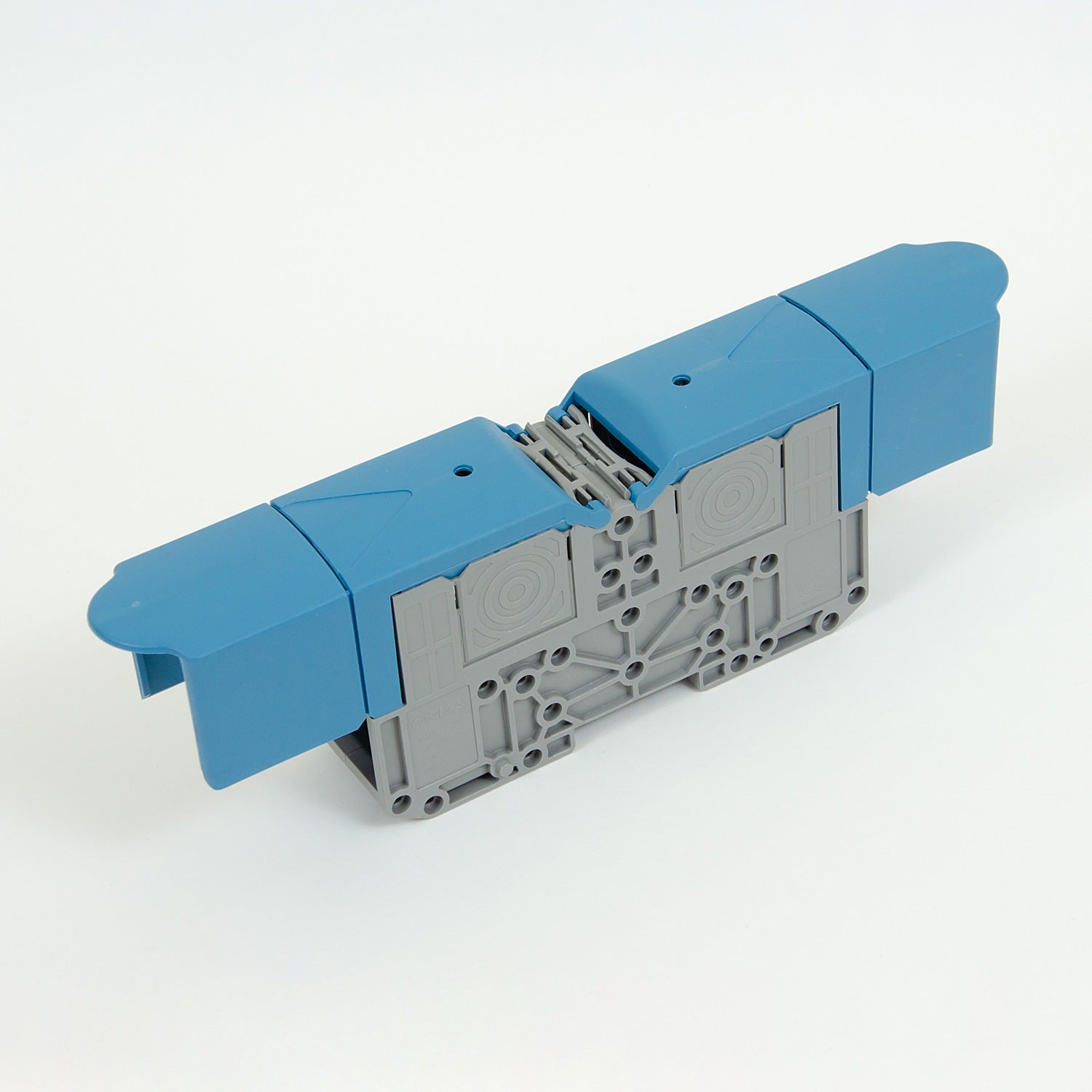

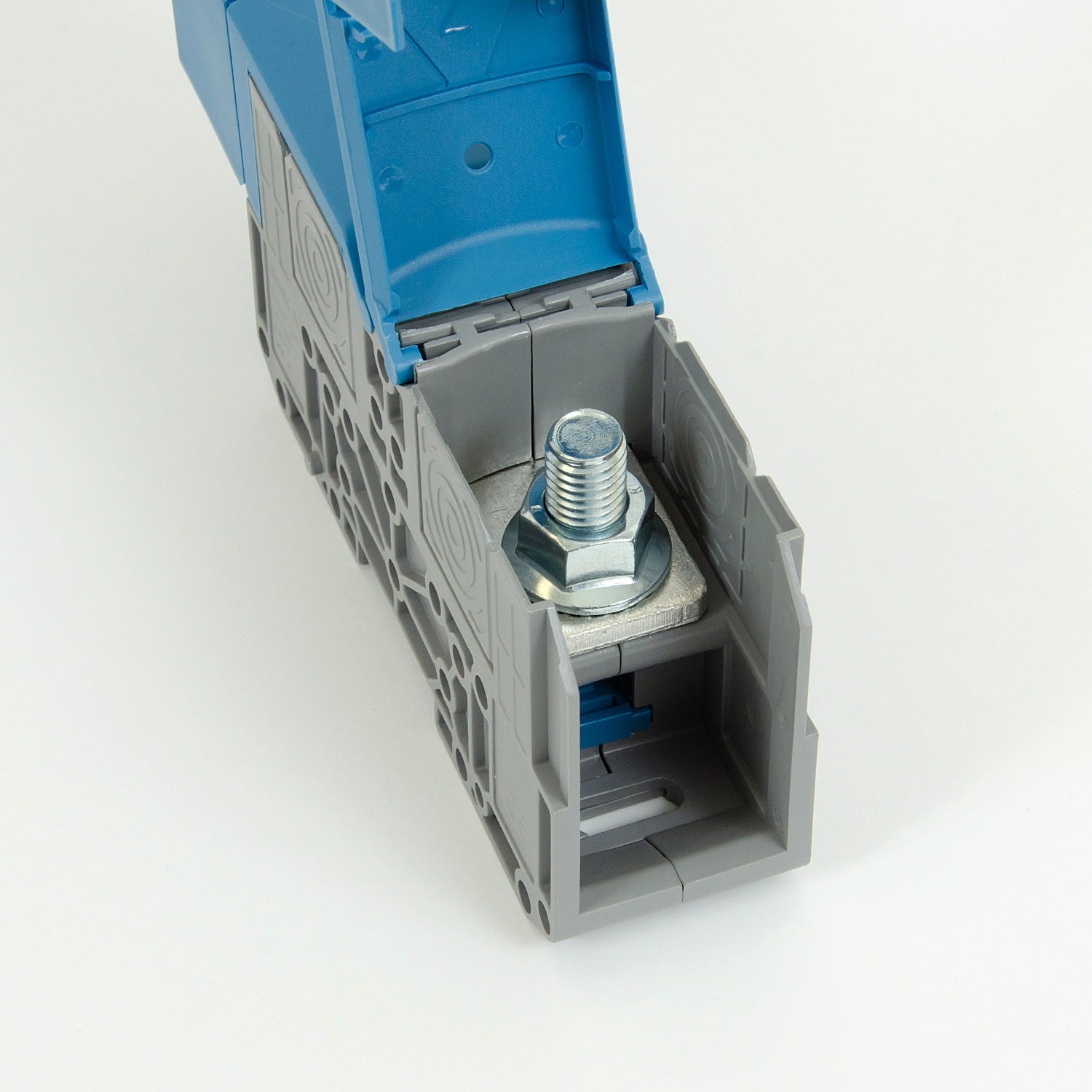

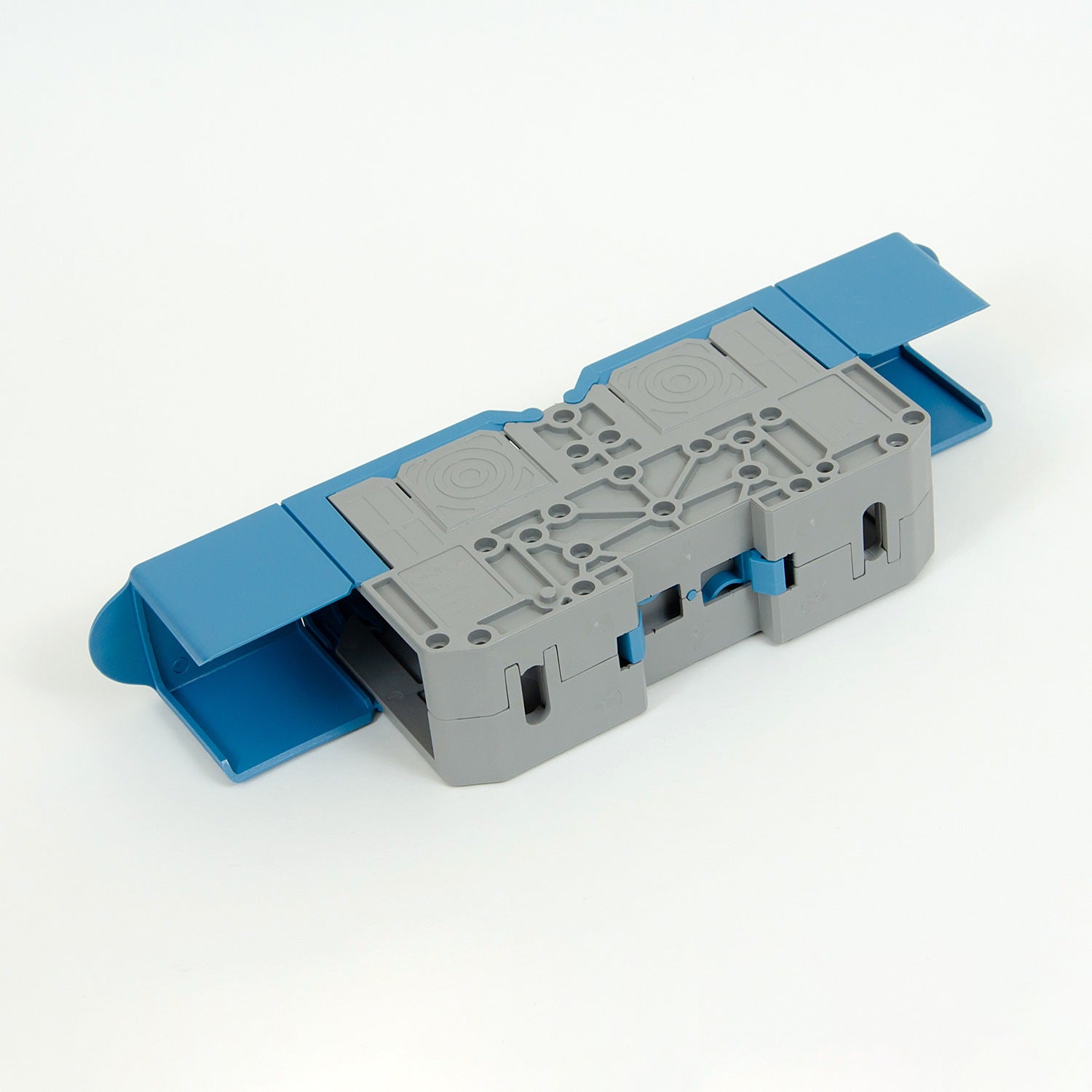

M12, 150mm2, threaded rail connector / DIN rail terminal with protective cover, blue, ONKA, manufactured in Turkey

ONKA's compact installation rail connector offers great possibilities for connecting all wires with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick connectors are easy to install and provide 100% connection security.

Technical parameters

Cross-section of the connected single wire up to: 150mm2
Color: blue
Insulation material in the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: lateral / lateral
Nominal voltage: 1000V
Nominal current: 309A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
