ONKA 2.5 mm2 screw connection terminal block (fuse not included) gray, 1020223

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

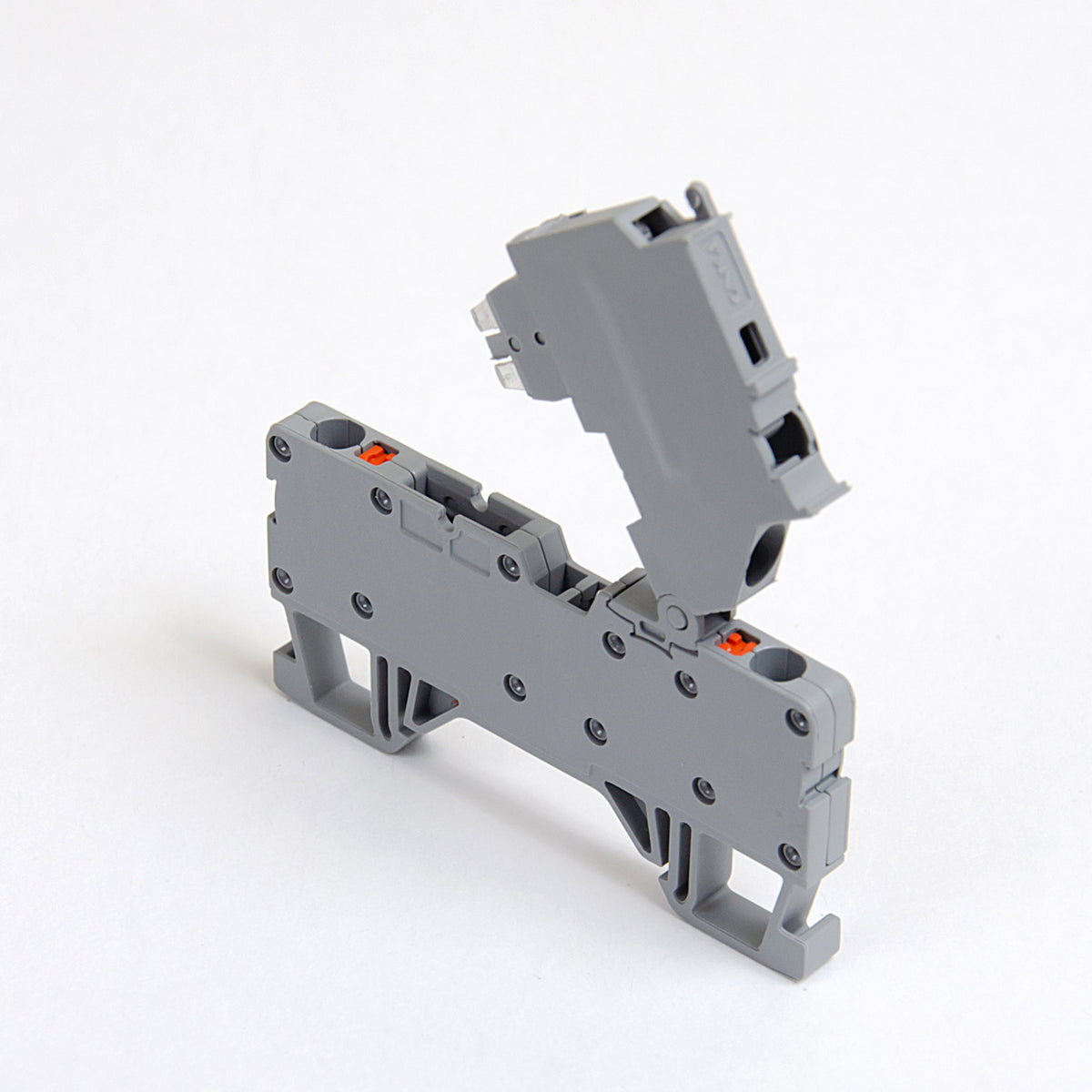

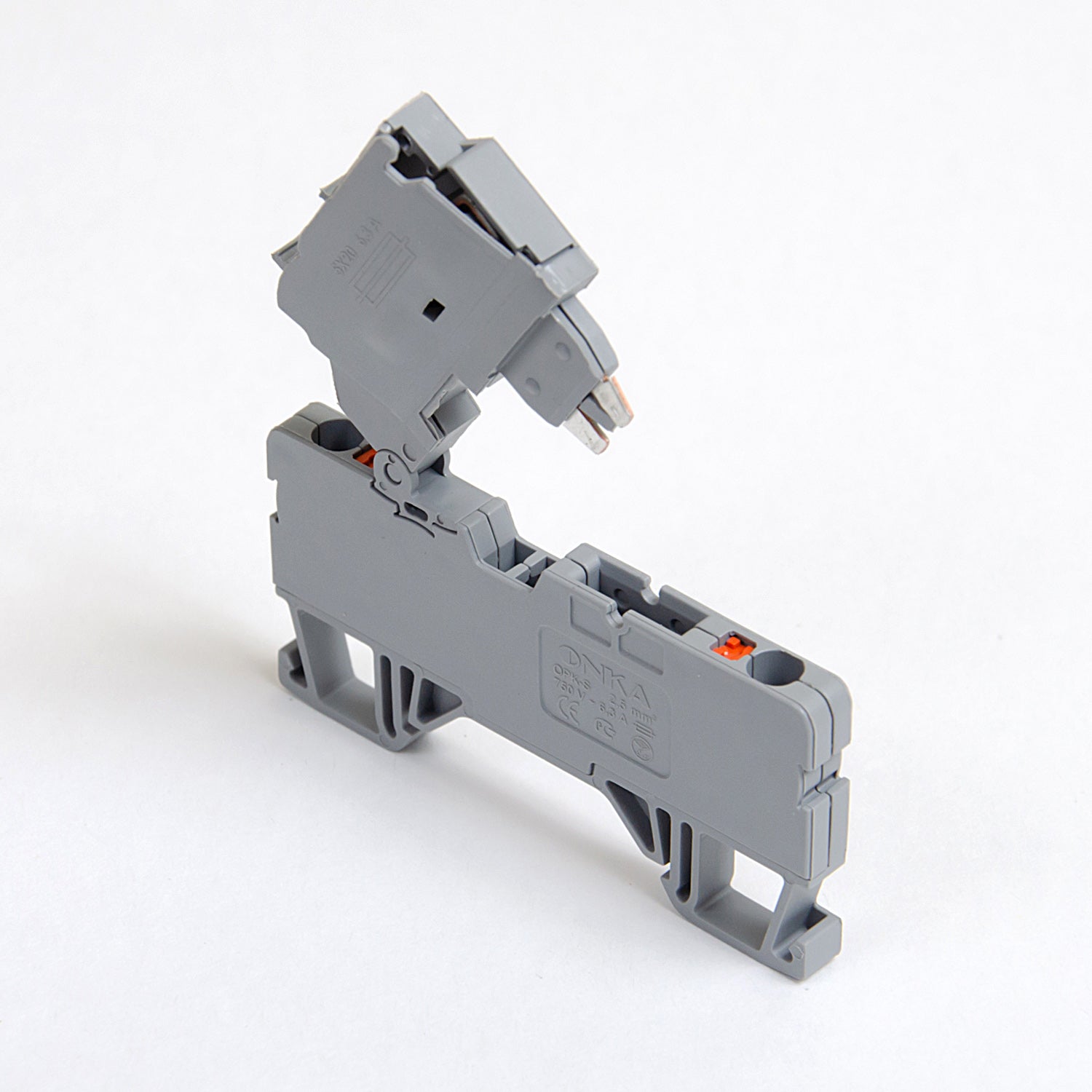

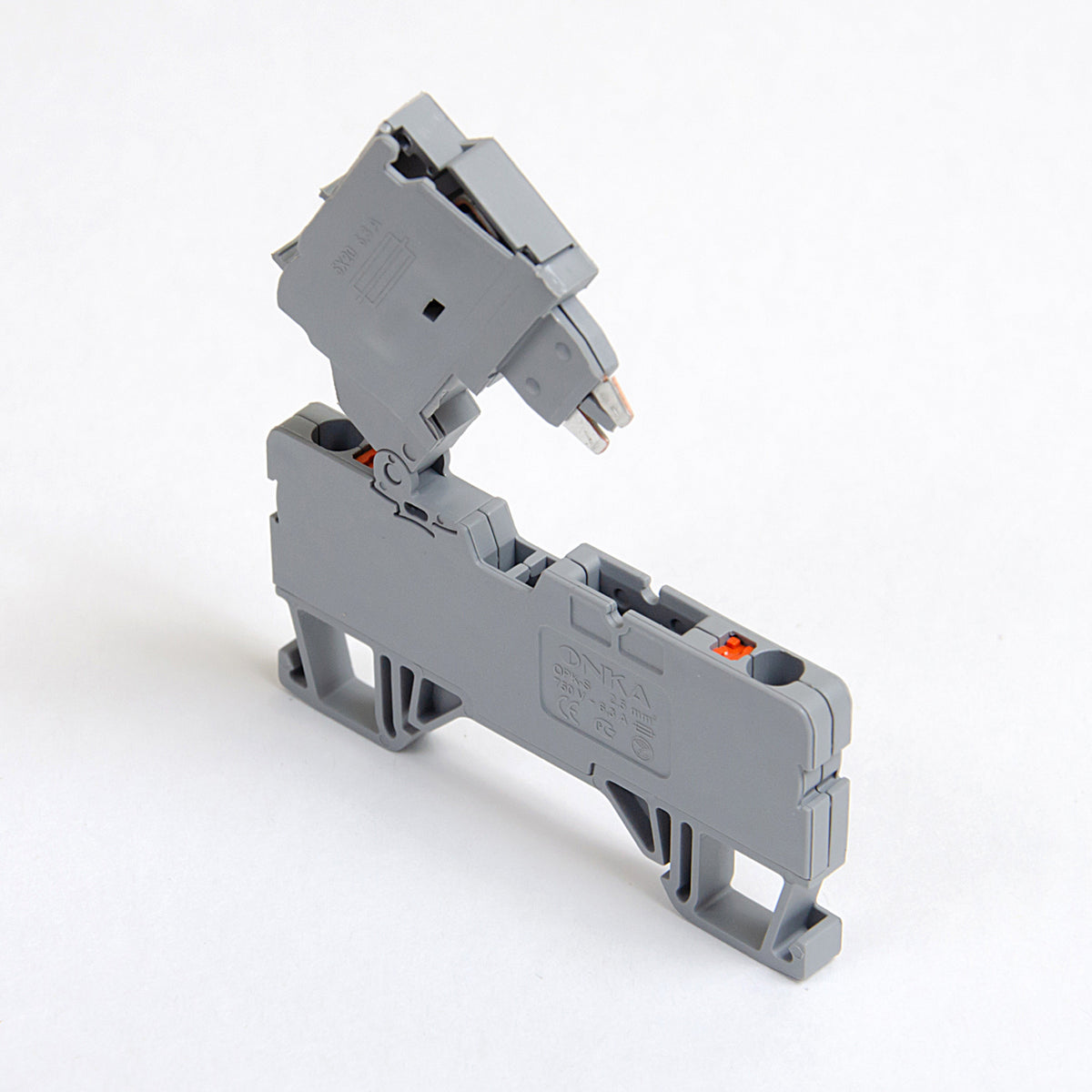

Spring screw connection for terminal block (fuse not included) 2-wire, gray, ONKA, manufactured in Turkey

Used to protect AC or DC circuits with low current. A 5x20 mm fuse is installed in the terminal with a current rating of up to 6.3 A. The fuse is not included and must be ordered separately.

Technical parameters

Cross-section of the connected single wire up to: 2.5 mm2
Color: gray
Insulation material in the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: Top / top
Length of cable strip: 9 mm
Electrical connection type: screw terminal
Nominal voltage: 750V
Nominal current: 6.3A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
