TENSE

Monitoring/protection of three-phase relay for control of overvoltage, undervoltage, asymmetric sequence

Sold
SKU: FKV-03HF
31,60 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

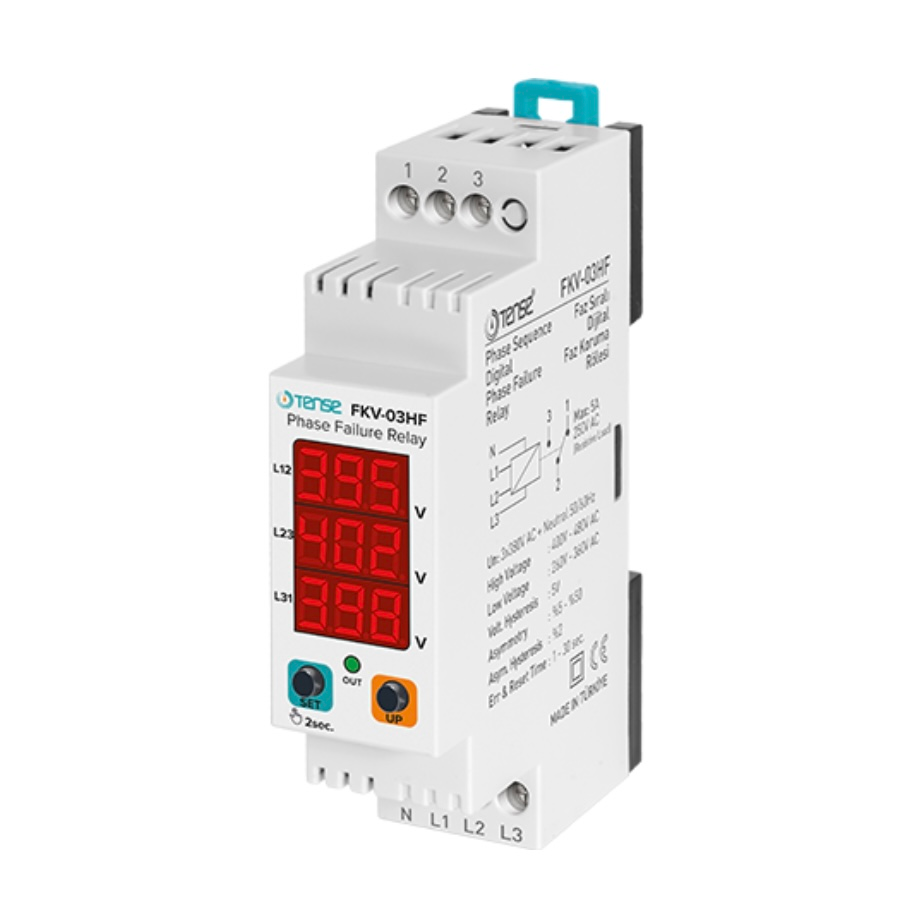

Three-phase monitoring/protection relay for control of sequence, tripping, phase asymmetry, overvoltage, undervoltage, neutral tripping with timer and display. Protective monitoring relay FKV-03HF (TENSE)

The phase protection relays are designed to protect three-phase loads from damage caused by mains voltage.

  • Voltage: 400V - 480V AC (adjustable)
  • Undervoltage: 260V - 360V AC (adjustable)
  • Asymmetry: 5% - 25% (adjustable)
  • Phase sequence control
  • Timer: 1 sec. - 30 sec (adjustable)

  • Mounting on DIN rail

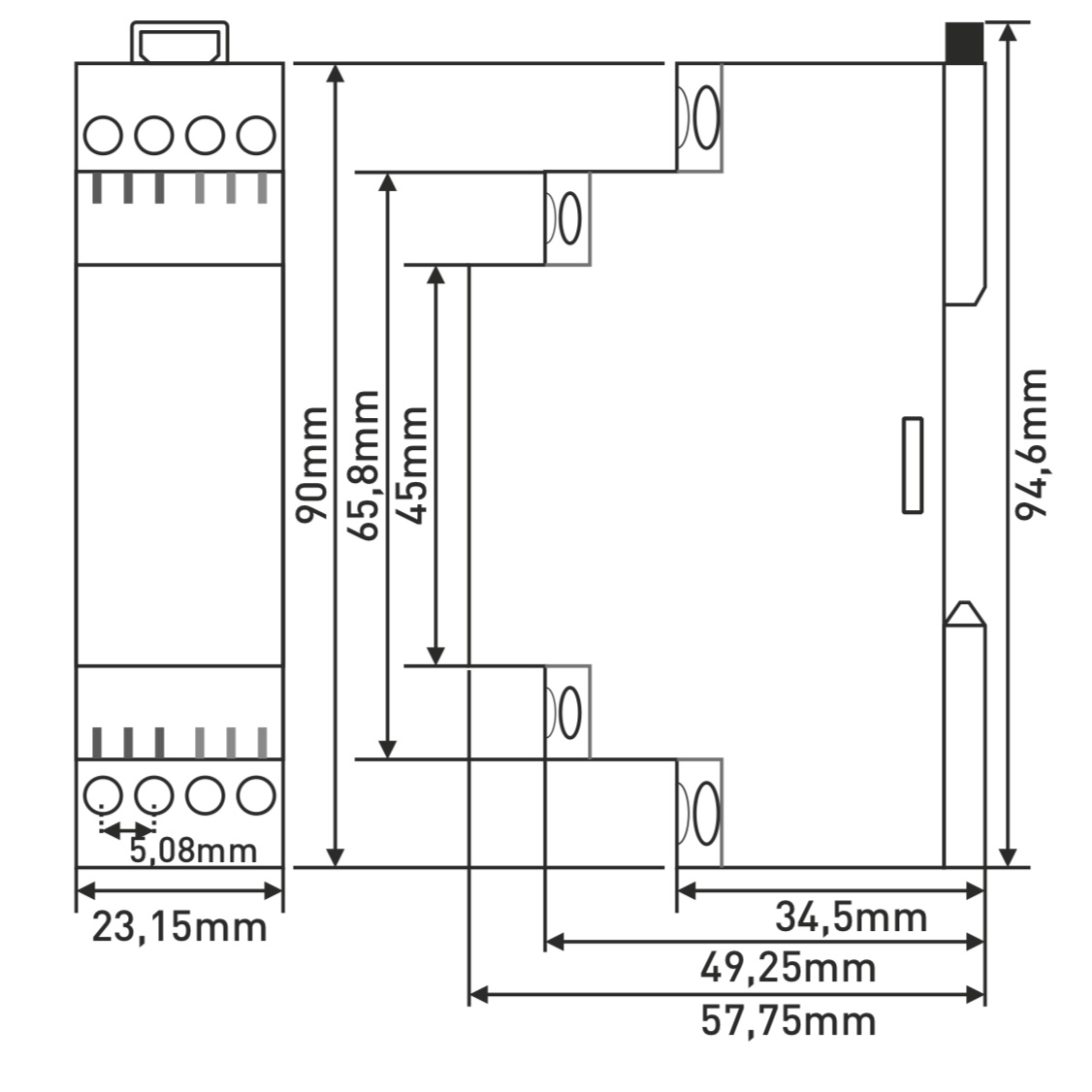

  • Width 23.15 mm
