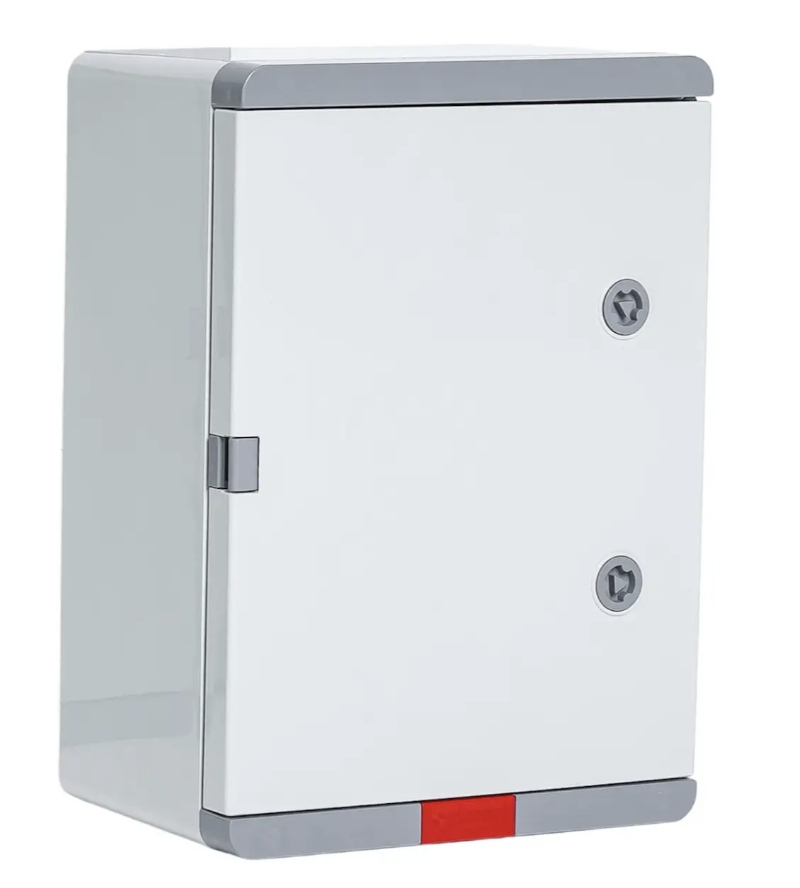

Shockproof sealed plastic housing with IP67 protection with mounting panel, Plastim (Turkey).
The plastic housing with IP67 protection has several important advantages, especially for use in harsh environments:
High protection against moisture and dust:
The IP67 rating means that the housing is completely protected against dust and can withstand temporary immersion in water up to 1 meter deep for 30 minutes, making it ideal for installation in damp or dusty places - e.g. outdoors, in industrial areas, or near water bodies.
Resistance to corrosion:
Plastic is not subject to corrosion unlike metal panels, which is particularly valuable in aggressive environments - near the sea, in chemical plants, or in businesses with high humidity.
Easy and simple installation:
The plastic housing is much lighter than its metal counterpart, which simplifies transport and installation, especially in hard-to-reach places.
Dielectric properties:
Plastic does not conduct electricity, which increases safety when working with electrical equipment and reduces the risk of short circuits.
UV resistance:
If a special ultraviolet plastic is used, the shielding retains its properties for a long time, even when constantly exposed to sunlight.
Technical properties
Resistance to: chemicals, alkalis, oils, salts, etc.
Nominal voltage: up to 690 V
Maximum current: up to 800 A
Operating temperature: -35 °C + 65 °C
Material: HB ABS
Mounting plate: 1 mm galvanized steel
IP protection: IP67
IK protection: IK08
Color: RAL7035 gray
Examples of application
Humid and dusty environments
Electrical shielding in car wash facilities, swimming pools, water parks, fountains.
Mounting boxes for controlling irrigation systems and pumping stations.
Installations in food processing plants where wet cleaning and disinfection are regularly performed.
Industrial installations
Protection of equipment in dusty workshops, concrete mixing plants, and metallurgical facilities.
Installs shielding in areas with aggressive environments (e.g., chemical plants).
Marine and port infrastructure
Protection of electrical wiring on platforms, in ports, and on ships.
Used in coastal areas with high humidity and exposure to salt air.
Construction sites
Temporary power distribution units to supply contractor machinery with power under harsh weather conditions.
Underground installations
