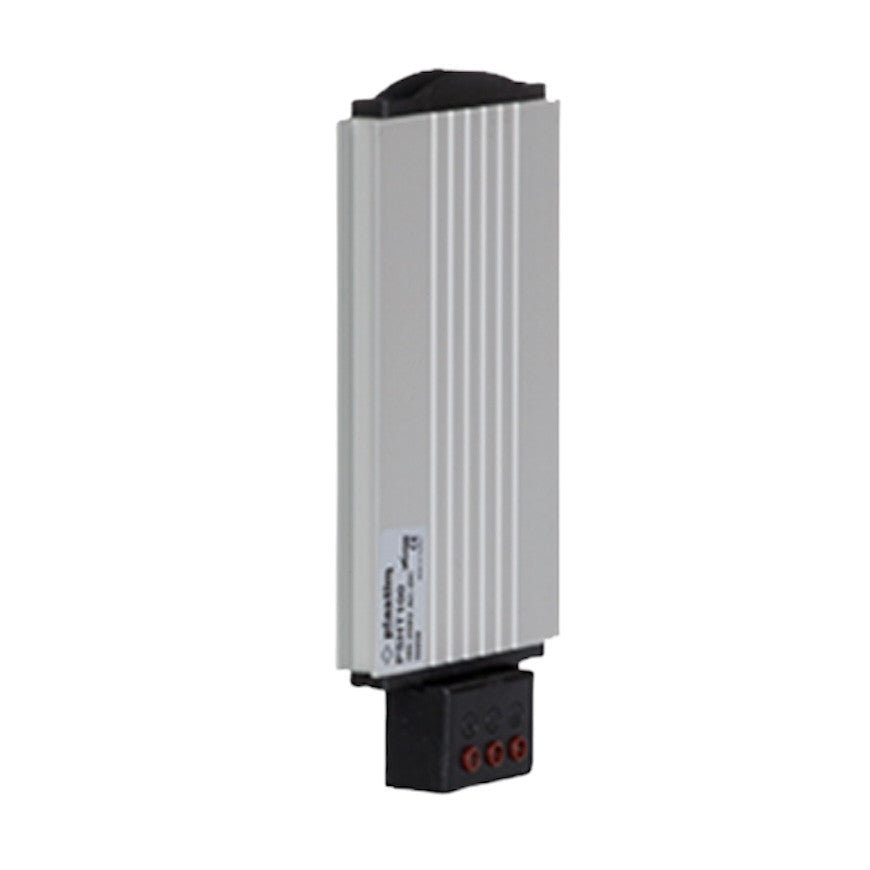

Narrow electric (PTC Body heater, post-tension heater) panel heater with anodized aluminum cooling plate and overcurrent protection, for DIN rail installation with 75 watts, 110-220 volts AC or DC, PSHT075, Plastim - made in Turkey.
- Heating power: 75W
- Operating voltage: 100-250V AC/DC
- Maximum current: 4A
- Heating element type: Self-regulating PTC resistor
- Overcurrent protection: electronic thermal overload relay
- Electrical connection: 3-pole N-L-E terminal
- IEC protection class: Class II
- Protection class: IP20
- Operating temperature: -45 / +70 °C
Storage temperature: -45 / +70 °C
Cooling body: Aluminum profile, anodized
Mounting: 35 mm DIN rail
Mounting position: Best efficiency in vertical position
External dimensions: 168x80x27mm
Weight: 0.225 kg
Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic equipment. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not ensure compliance with modern strict requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heat but also guarantee safety and durability in operation.
All heaters are equipped with electronic protection against surface overheating, providing an additional guarantee for safe operation.
Due to the high demands for cabinet heaters, Plastim has been very attentive to the selection of component suppliers. For example, the supplier of the PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is manufactured by the Italian company KORNER on special order. The plastic that the block is made of has a very important property: when heated, it not only retains its shape and does not deform, but it also does not emit any odor and therefore does not release any harmful carcinogens into the atmosphere. We agree that this approach to supplier selection distinguishes high-quality Plastim heaters from cheap Chinese analogs.
To ensure automatic temperature maintenance with this heater, you should either use a simple bimetal thermostat or a more complex temperature controller, both of which can be purchased on our website:
