The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.
In the event of a complaint, no fee is charged for the return of goods.

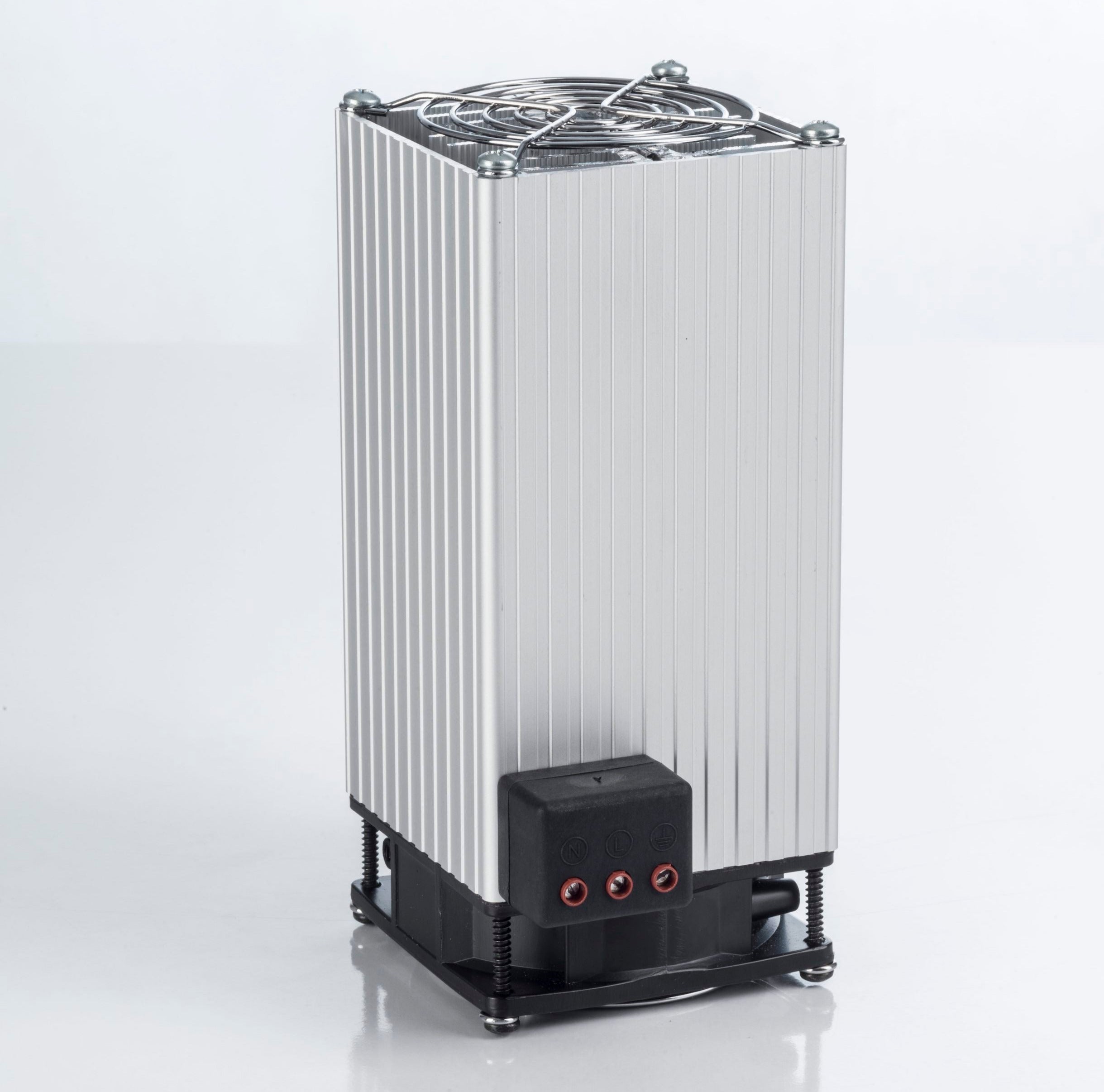

Electric (resistance heater, afterheater) panel heater with fan, with anodized aluminum cooling plate and overcurrent protection, for DIN rail installation with 250 watts, 220/230 volt AC, PFHT250, Plastim - made in Turkey.
-
Heating power: 500W
-
Operating voltage: 220/230V AC, 50/60Hz
-
Maximum current: 2.4 A
-
Type of resistance heater.
-
Axial fan: 80x80x25mm 35m3/h
-
Overcurrent protection: electronic thermal overload relay
-
Electrical connection: 3-pole N-L-E terminal
-
IEC protection class: Class II
-
Protection class: IP20
-
Operating temperature: -25 / +70 °C
-
Storage temperature: -25 / +70 °C
-
Cooling body: Aluminum profile, anodized
-
Mounting: 35 mm DIN rail
-
Mounting position: Best efficiency in vertical position
-
External dimensions: 182x80x110mm
-
Weight: 1.2 kg

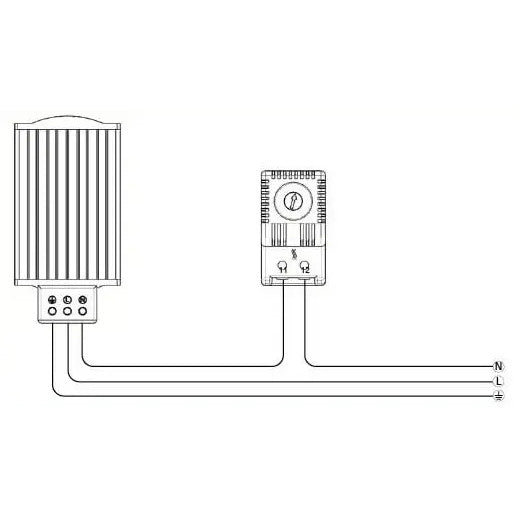

To ensure automatic temperature maintenance with this heater, you should either use a simple bimetal thermostat or a more complex temperature controller. Both devices can be purchased on our website.
