Trin switch 0-1-2-3-4-5-6-7 grade rotary switch, 1-pole, 10-160A

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

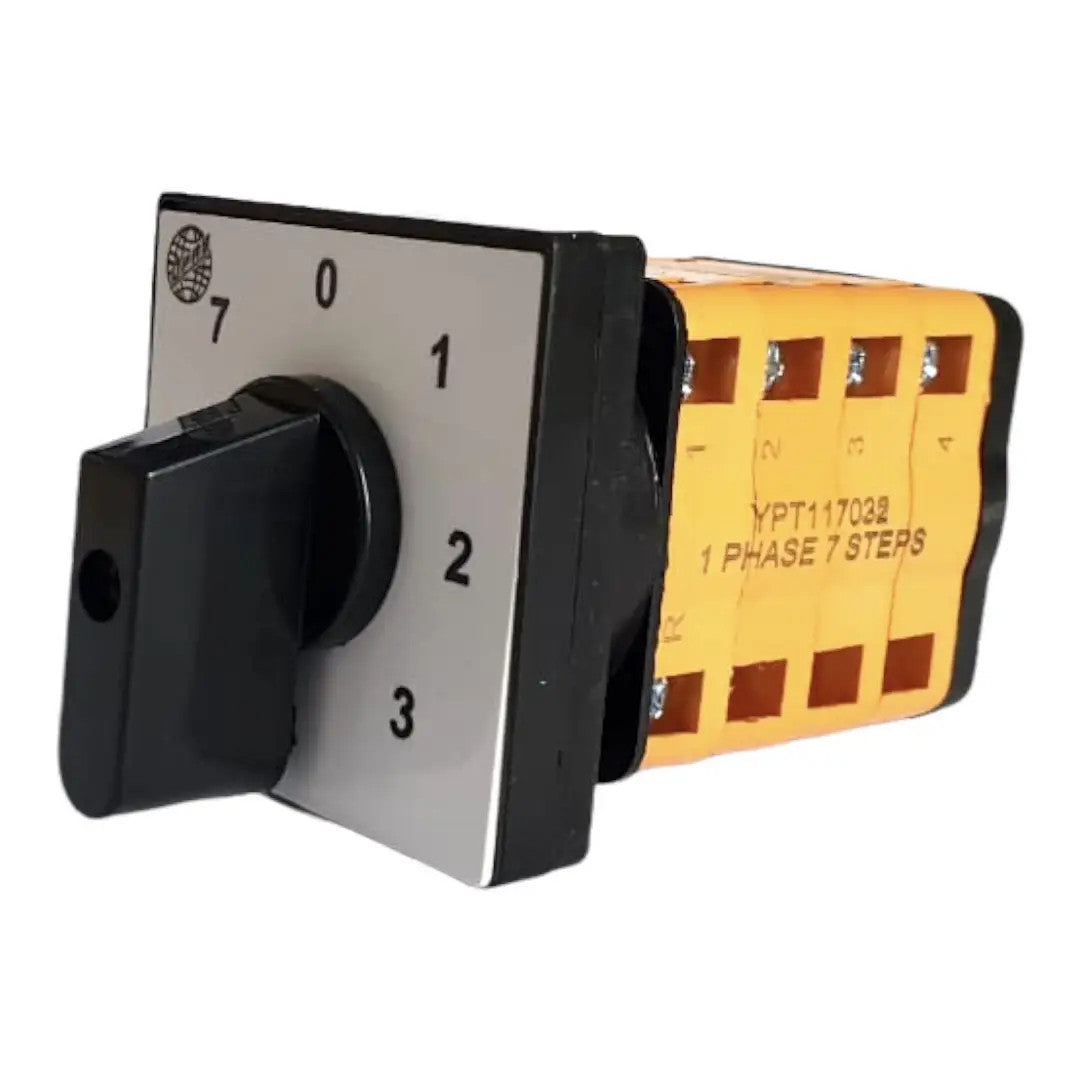

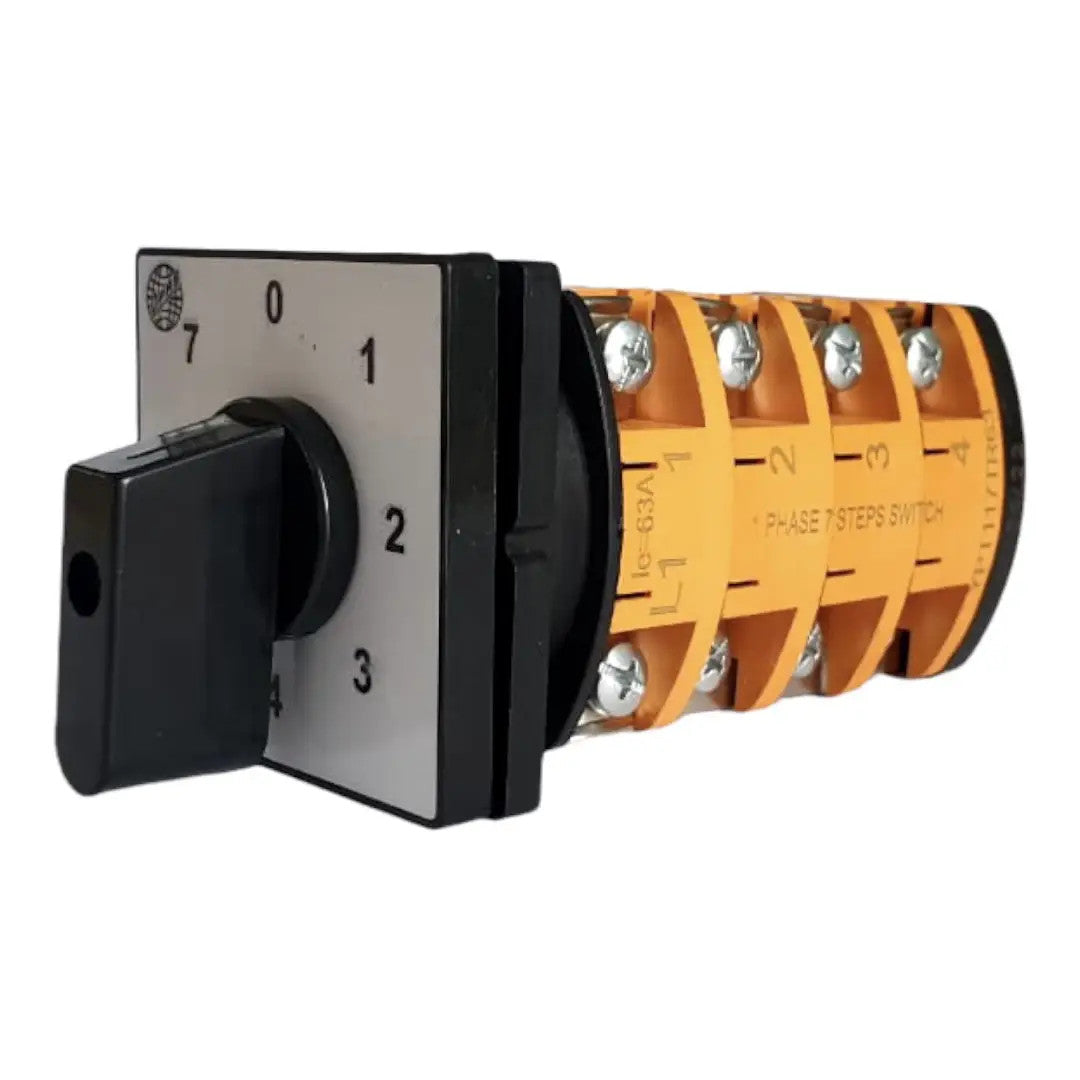

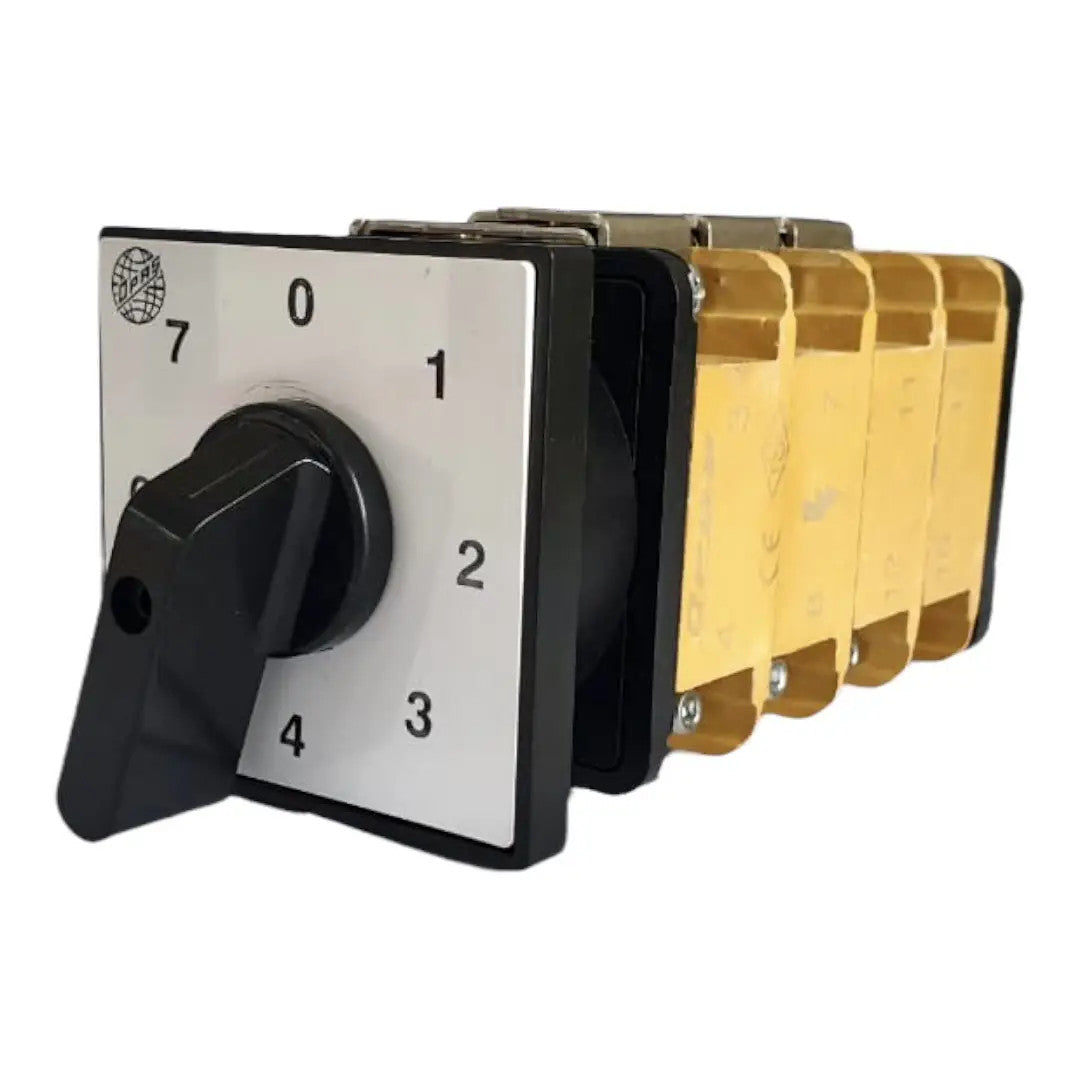

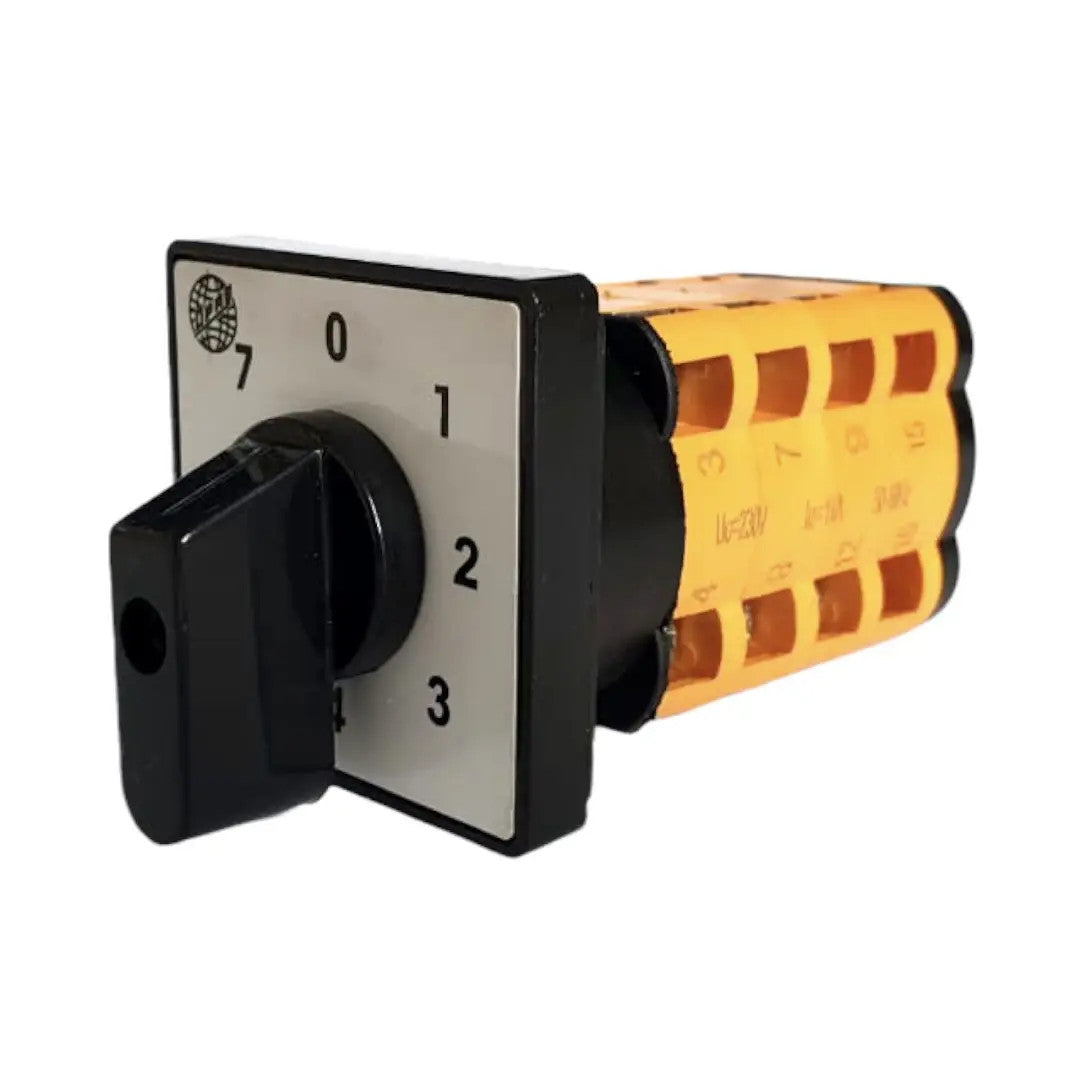

Trinomial switch 0-1-2-3-4-5-6-7, rotary switch, 1-pole, 10-160A, YPT117 manufacturer OPAŞ (Turkey)

• 10A, 16A, 25A, 32A, 40A, 63A, 100A

The trinomial switch 0-1-2-3-4-5-6-7 can, for example, be used to turn on one of several devices/modes/treatment program steps, etc.

Package switches are designed for manual switching of low-voltage circuits. They are used to create main and control circuits, to turn on and off electric motors and other low-power devices. The advantages of this series of switches are compact size, electrical and mechanical resistance.

The multiposition scheme 0-1-2-3-4-5-6-7 is used to switch between different operating modes for the equipment (movement speed, heating temperature).

Technical specifications:

• Hinged design.
• Unit type: Rotary switch

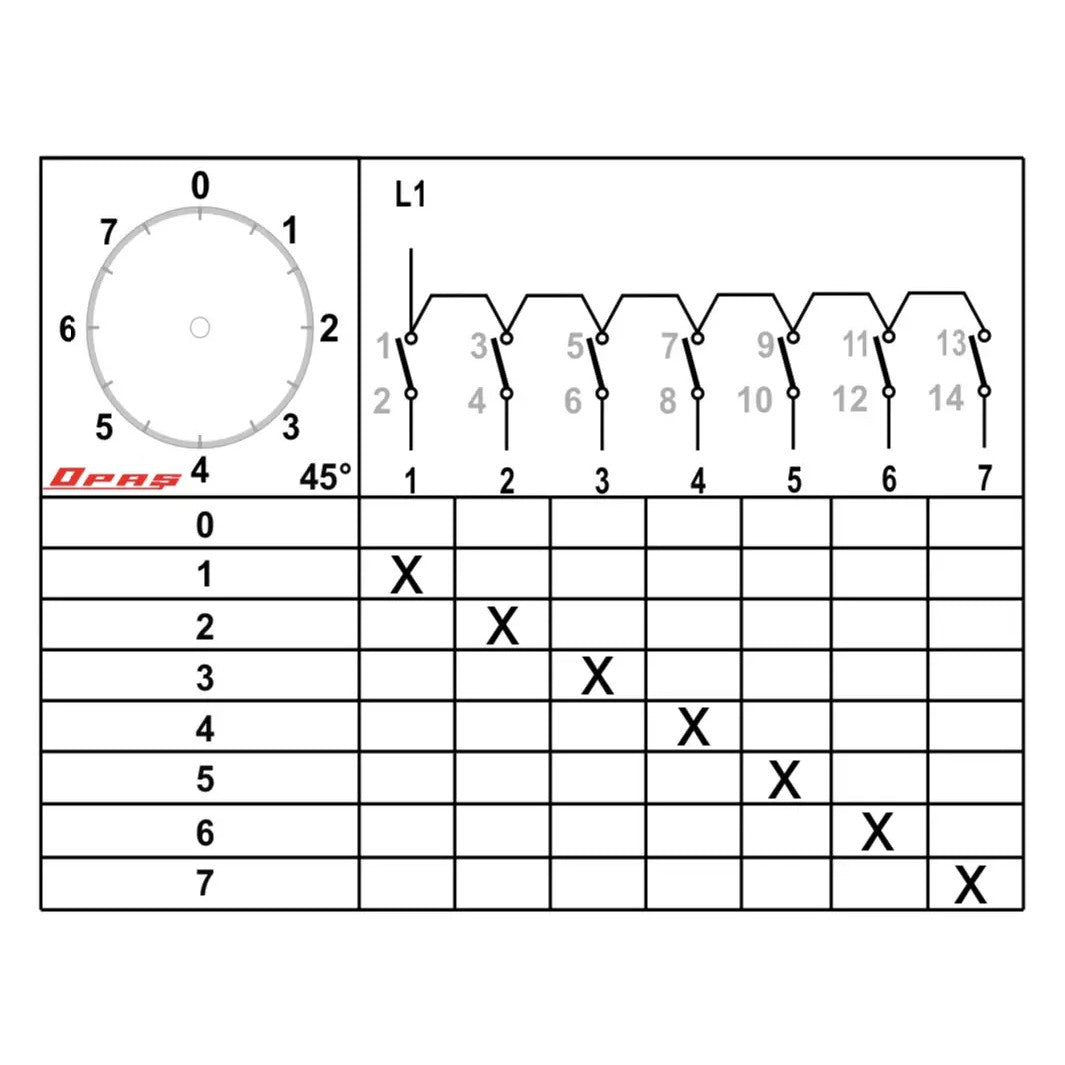

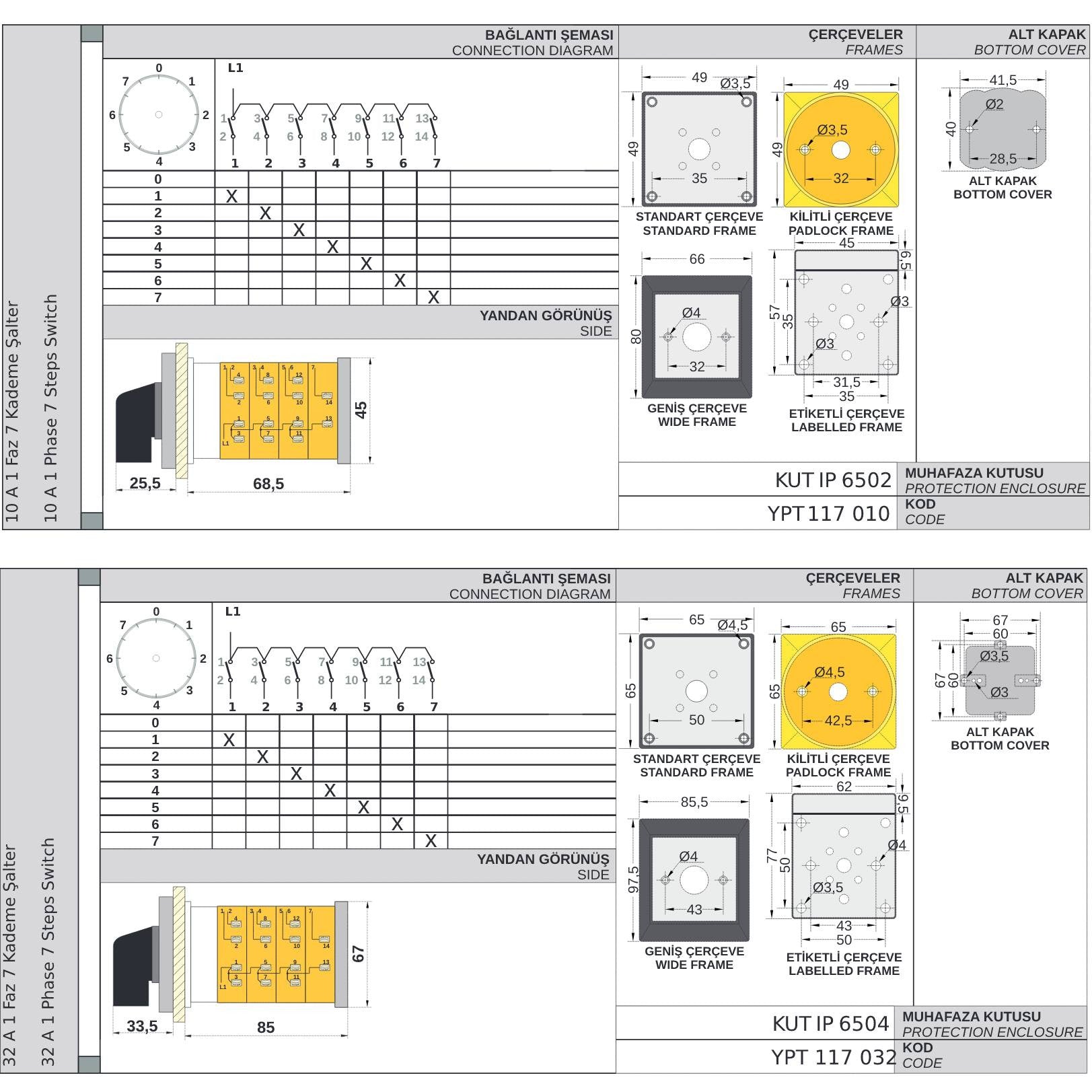

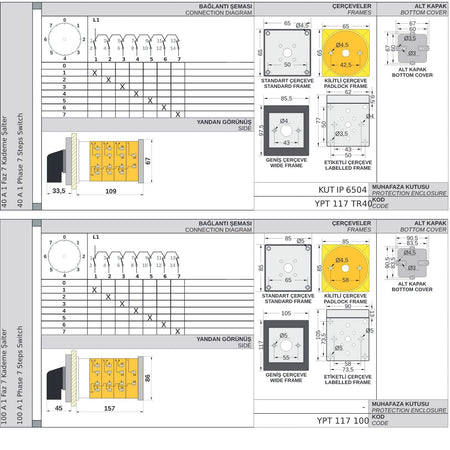

• Switching schedule: 0 - 1 - 2 - 3 - 4 - 5 - 6 - 7
• Number of poles: 1
• Type: Built-in
• Number of phases: single phase
• Protection: No
• Protection degree against dust and water: IP20
• Operating temperature range: -30 to +55 °C
• Manufacturer: Turkey
• Manufacturer's country: Turkey
• Number of work positions: 8
