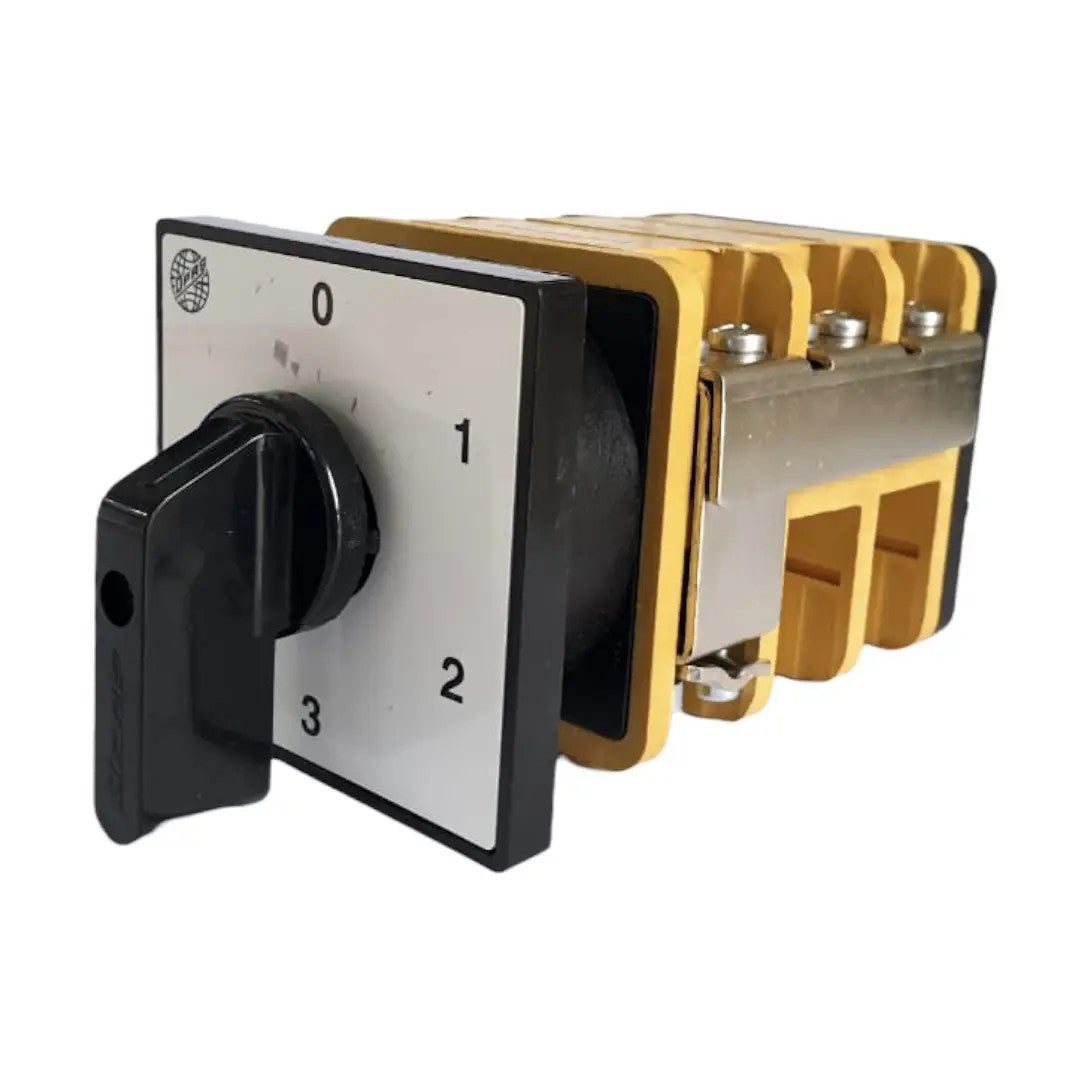

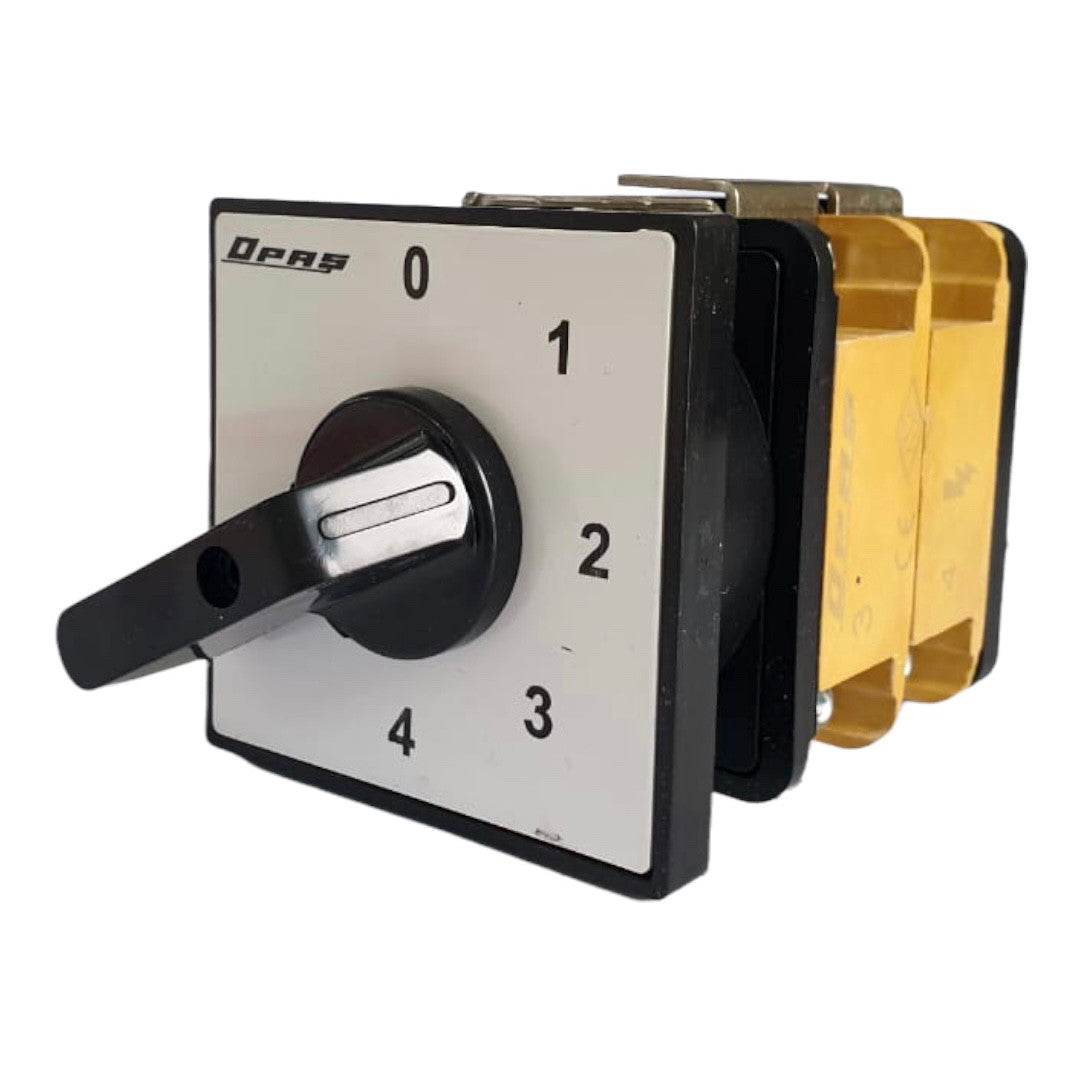

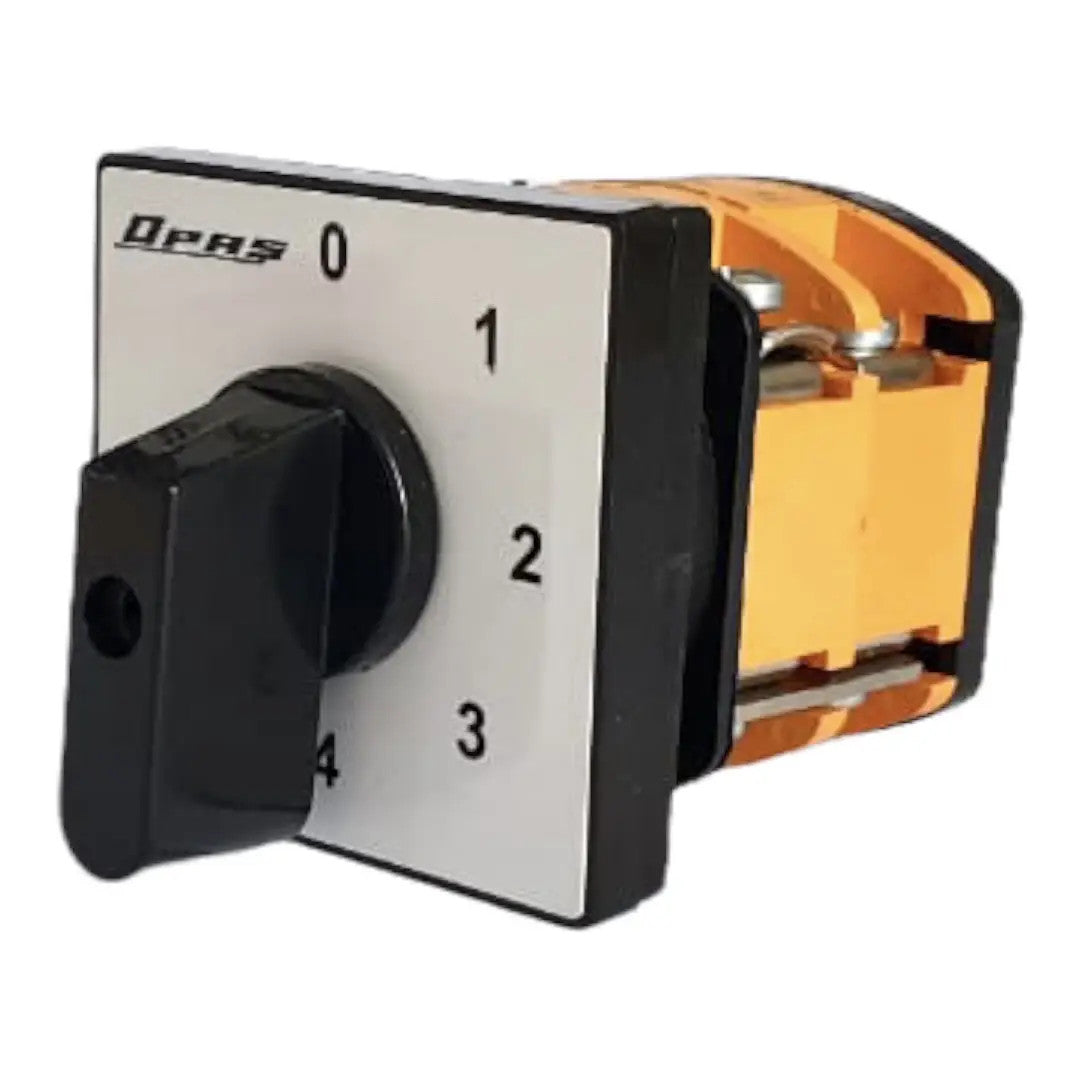

Trinomial switch 0-1-2-3-4, rotary switch, 1-2 poles, 10-160A, YPT114, manufacturer OPAŞ (Turkey)
- 10A, 16A, 25A, 32A, 40A, 63A, 100A, 125A, 160A
The trinomial switch 0-1-2-3-4 can, for example, be used to select one of three phases and a generator to drive single-phase electrical appliances or to turn on one of several devices/modes/treatment program steps, etc.
Package switches are designed for manual switching of low-voltage circuits. They are used to create main and control circuits, to turn on and off electric motors and other low-power devices. The advantages of this series of switches are compact size, electrical and mechanical resistance, and high on/off capacity.
The multiposition scheme 0-1-2-3-4 is used to switch between the equipment's different operating modes (movement speed, heating temperature).
Technical specifications:
- Hinged design.
- Unit type: Rotary switch

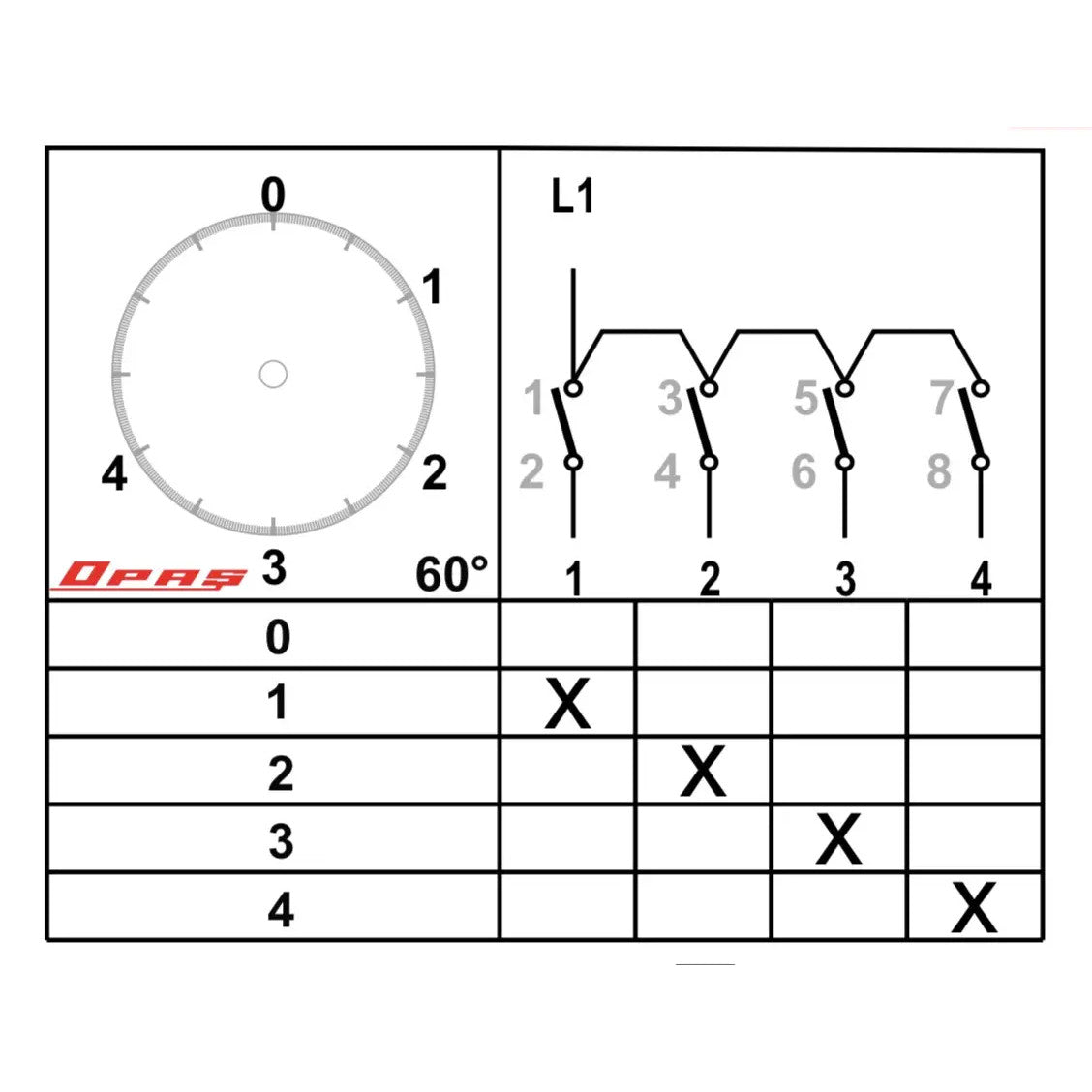

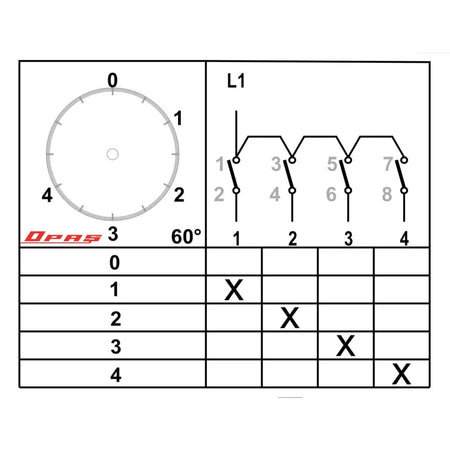

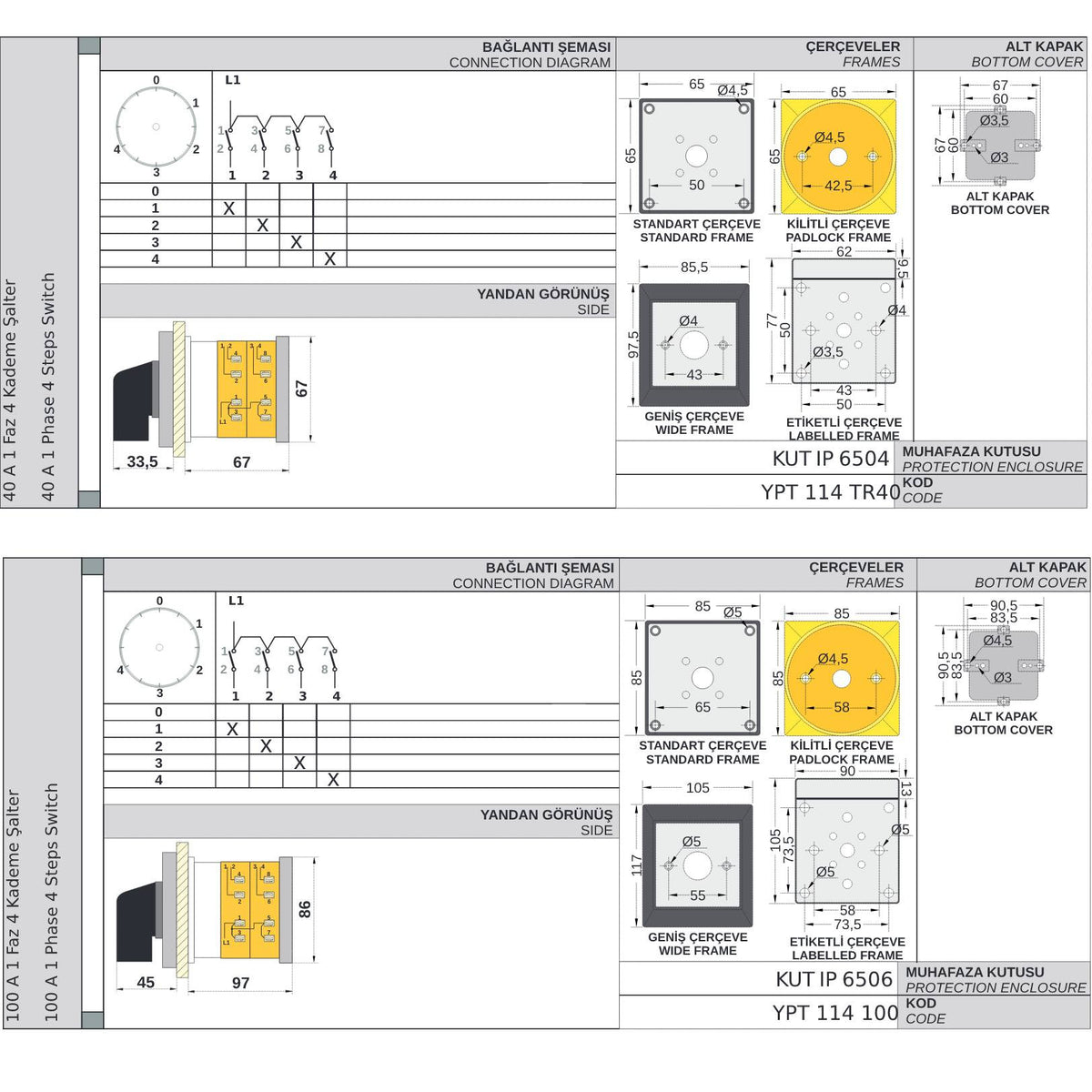

- Switching scheme: 0 - 1 - 2 - 3 - 4
- Number of poles: 1
- Type: Built-in
- Number of phases: single phase
- Protection: No
- Protection degree against dust and water: IP20
- Drift temperature range: -30 to +55°C
