Plastim

Ventilator with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim

In stock - 150 items available
SKU: PTF1500
35,64 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

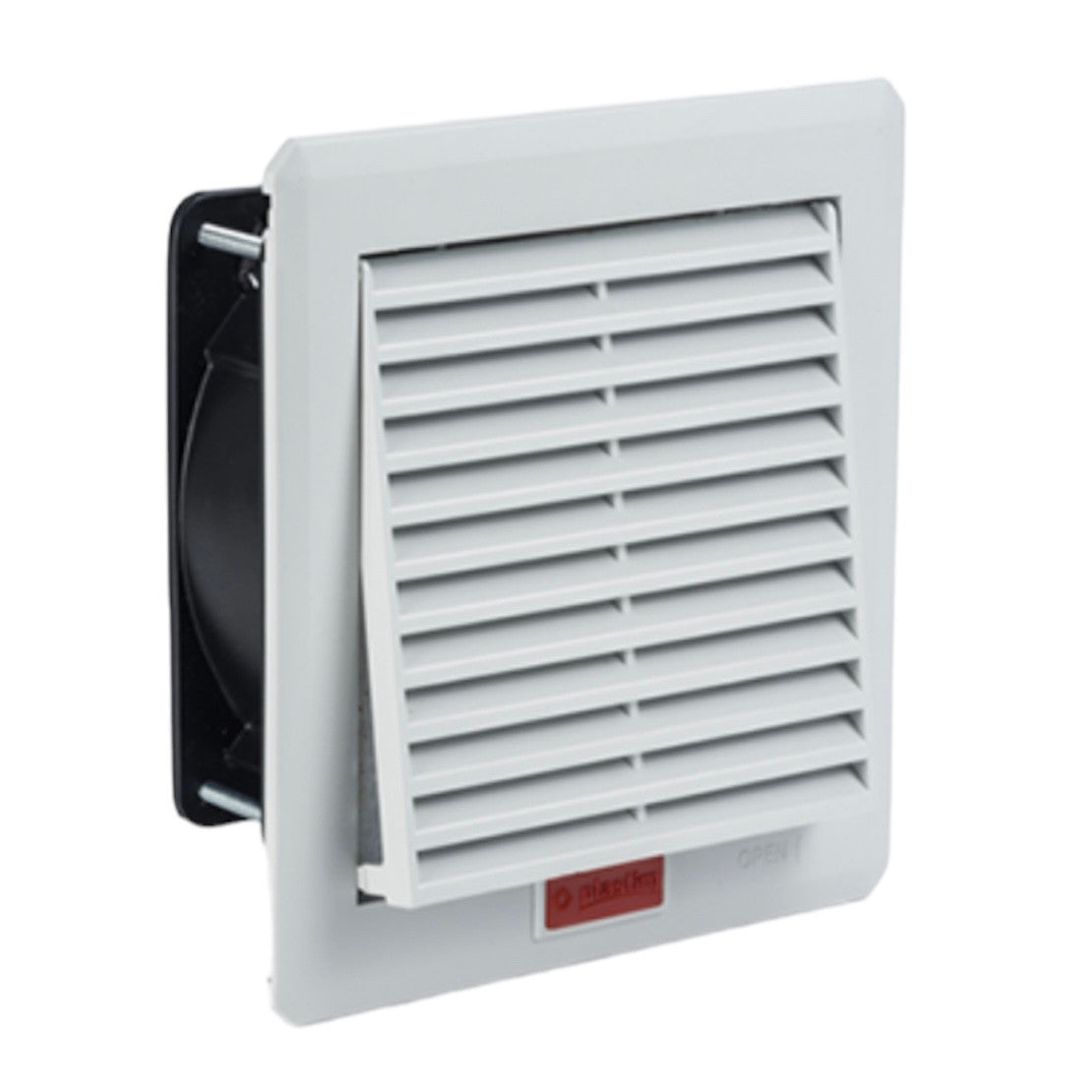

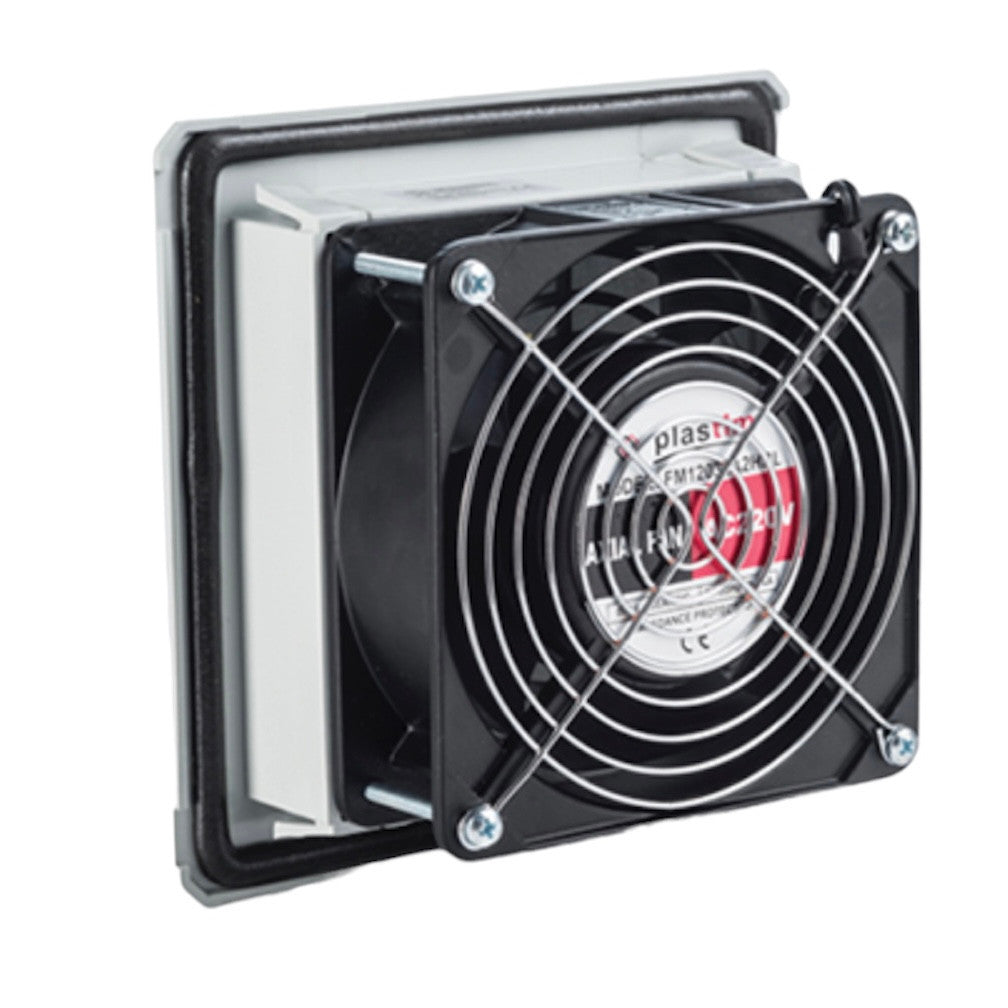

Ventilation grille with fan and filter, size 160x160 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF1500, manufacturer Plastim (Turkey)

Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, slot machines, automation cabinets, control panels, gas stations. Typically installed in side walls of boxes to maintain IP.

  • External dimensions: 160x160x69 mm
  • Installation size: 125x125 mm
  • Volume flow rate: 100 (140) m3/h
  • Noise level: 42 (46) dB(A)
  • Bearing: Ball bearing
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.14 (0.13) A
  • Rated power: 26 (23) W
  • Electrical connection: Lead wire
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection class: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Sealing: Polyurethane seal
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 0.68 kg
  • Installation: Quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you should either use a simple bimetal thermostat or a more complex temperature controller; both devices can be purchased on our website.
