Plastim

Ventilator with filter, 115 (130) m3/h, 260x260, 230V 50/60Hz IP54 PTF2500 Plastim

In stock - 48 items available
SKU: PTF2500
71,28 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment portal, the confirmation of the payment will be sent to your e-mail

Postförskott - betaling enligt betalningsföreskriften du till chauffeur från transportföretaget

Överföring - you will receive a proforma invoice by e-mail no later than the next working day, where you will find the account number that you entered when paying.

On invoice - this payment variant has partners who have entered into a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for the return of goods.

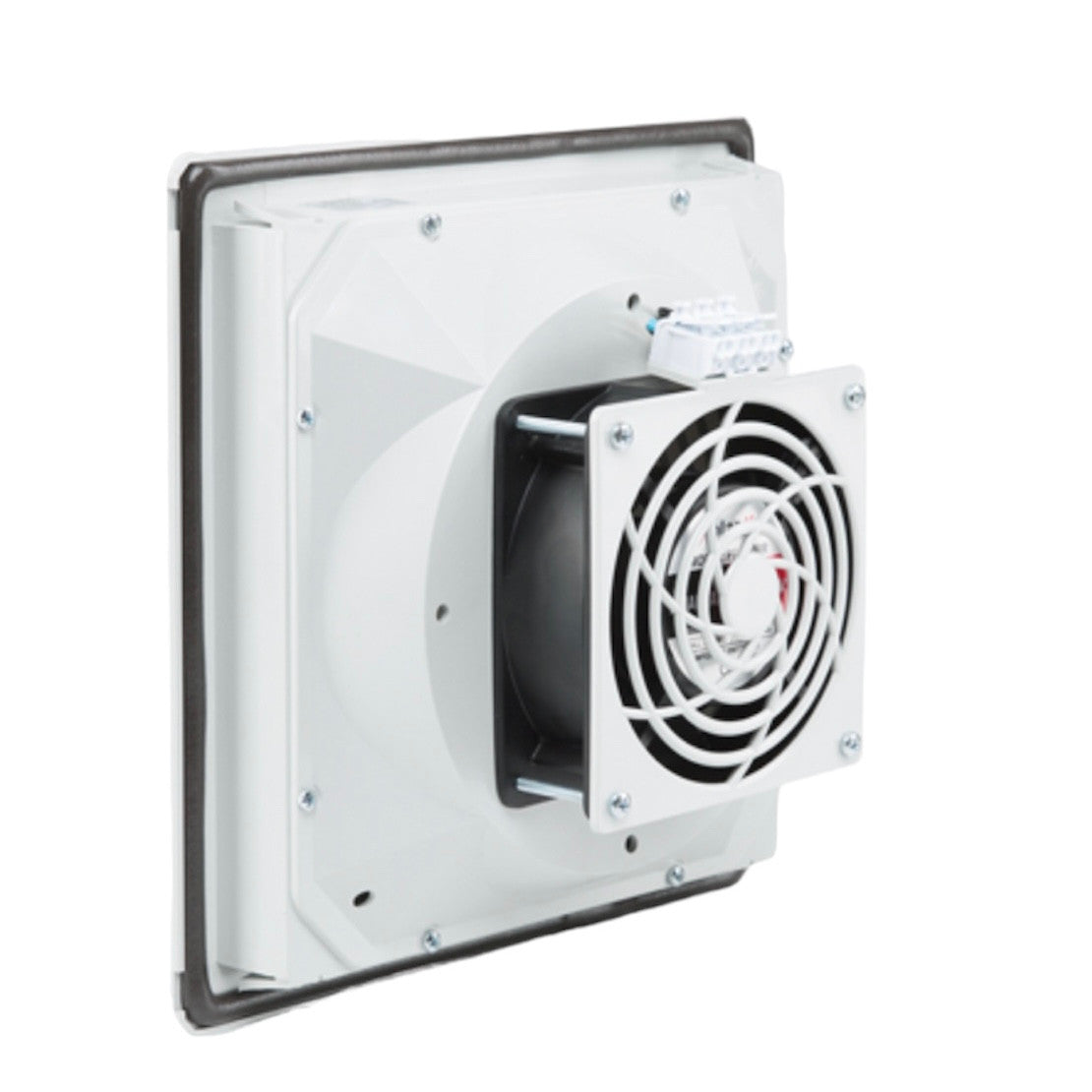

Ventilation grille with fan and filter, size 260x260 mm, for installation in electrical cabinet, automation cabinet, ATM or gaming terminal. PTF2500, manufacturer Plastim (Turkey)

Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Typically installed in side walls of boxes to maintain IP.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can easily be replaced or cleaned and reused.

  • External dimensions: 260x260x103 mm
  • Installation size: 223x223 mm
  • Volume flow: 115 (130) m3/h
  • Noise level: 42 (46) dB(A)
  • Bearing: Ball bearing
  • Operating voltage: 220-230VAC, 50/60Hz
  • Power consumption: 0.14 (0.13) A
  • Nominal power: 26 (23) W
  • Electrical connection: 3-pole terminal
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection class: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Sealing: Polyurethane seal
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 1.18 kg
  • Installation: Quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you should either use a simple bimetal thermostat or a more complex temperature controller, both devices can be purchased on our website.
